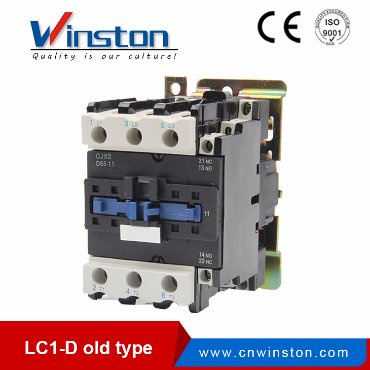

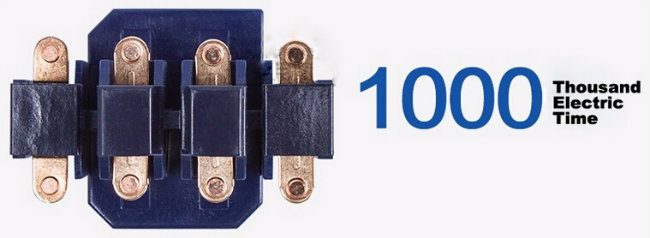

DescriptionContactor LC1-D OLD series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.
Technical data| Type | Rated
insulation
voltage(V) | Conventional
thermal
current(A) | Rated
operation
current(A) | Control power(kw) | No .of
contacts | Remark |
| 220V | 380V | 415V | 440V | 660V |
LC1-0910
0901
| 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO
3P+NC
| Installation
method
1.with two
screws
2.35mm
din rail |
LC1-1200
1201
| 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO
3P+NC
|
LC1-1810
1801
| 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO
3P+NC
|
LC1-2510
2501
| 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO
3P+NC
|
LC1-3210
3201
| 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO
3P+NC
|
| LC1-4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation
method
1.with three
screws
2.75mm or
35mm
din rail |
| LC1-5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 |
| LC1-6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 |
| LC1-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 |
| LC1-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 |
| Type | LC1-09 | LC1-12 | LC1-18 | LC1-25 | LC1-32 | LC1-40 | LC1-50 | LC1-65 | LC1-80 | LC1-95 |
Pick-up voltage
50/60Hz(V) | (0.85~
1.1)Us | (0.85~
1.1) Us | (0.85~
1.1)Us | (0.85~
1.1)Us | (0.85~
1.1)Us | (0.85~
1.1)Us | (0.85~
1.1)Us | (0.85
~1.1)Us | (0.85~
1.1)Us | (0.85~
1.1)Us |
Release voltage
50/60Hz(v) | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us | (0.2~
0.75)Us |
| Coil power | 50Hz
60Hz
| Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 |
| Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 |
Power
consumption
(W) | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10
|
Details
