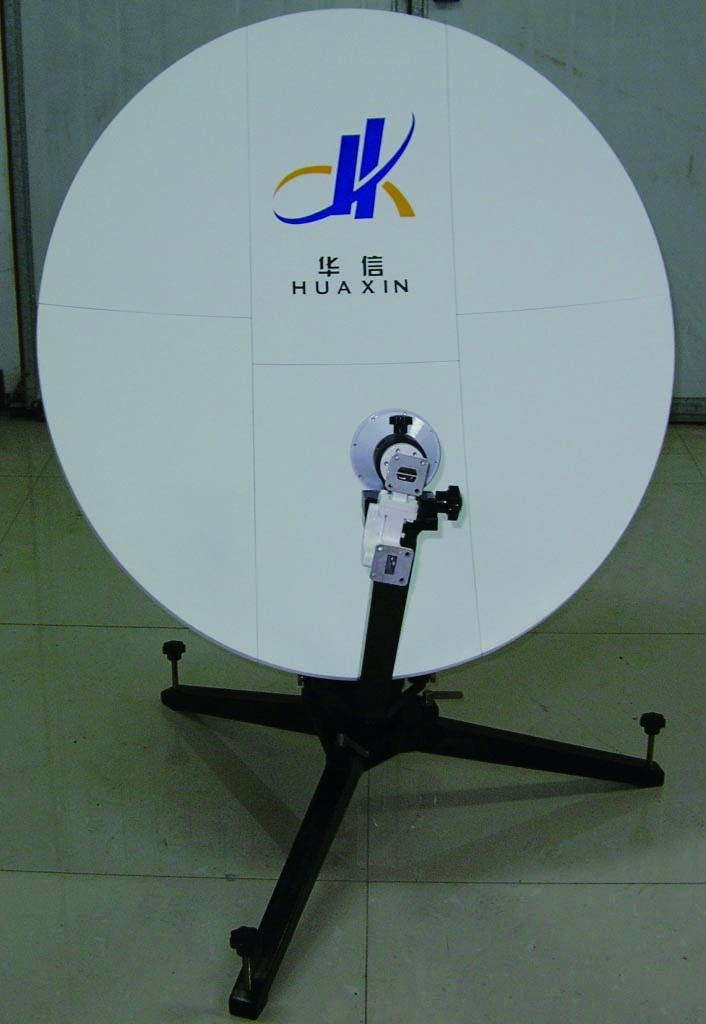

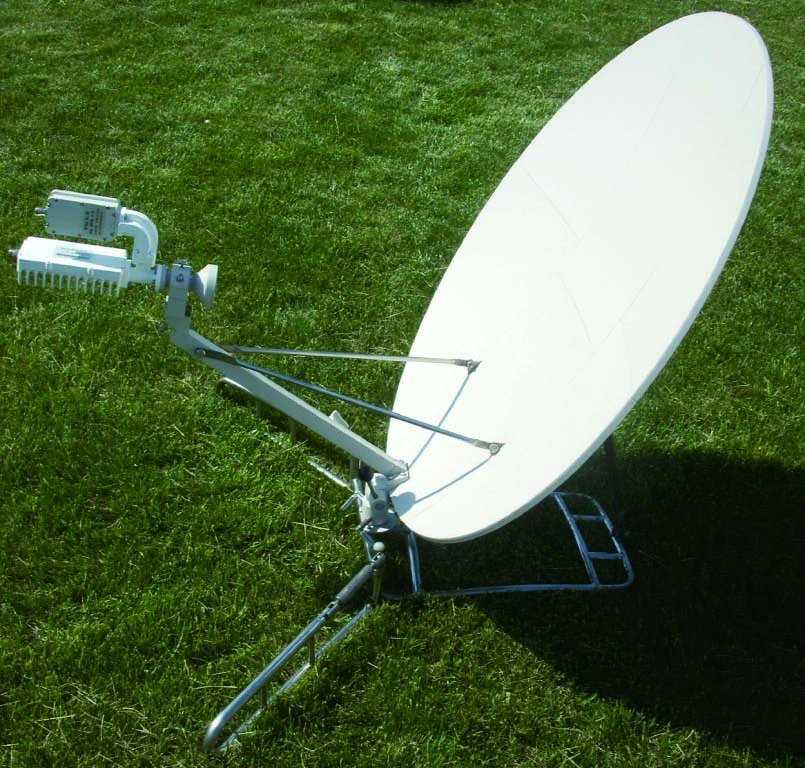

0.9m Aluminum Flyaway Antenna

Features:
6 aluminum panels
High gain and excellent sidelobe performance
5 Minutes Setup
Easy & fast fine elevation adjustment
Nylon backpack case for back-pack type

Approvals or Compliance:
ASIASAT
APT
CHINA SATCOM
SINOSAT
CHINA ORIENT
INTELSAT
EUTELSAT

Main parts:
Feed horn
OMT & Filter
Panels
Back structure
Back-pack or tripod mount

Options:
Air case
Amplifier Holder
Customized available

Specification of 0.9m Aluminum Flyaway Antenna

R.F SPECIFICATIONS	Ku-Band
	RECEIVE			TRANSMIT
1. Frequency(GHz)	12.25-12.75			14-14.5
	10.95-12.75 ★			13.75-14.5 ★
2. Typical Gain(dBi)	39.55 at 12.5GHz			40.34 at 14.25GHz
3. VSWR	1.25:1			1.25:1
4. Beamwidth (-3dB)	1.730°			1.580°
5. Typical G/T at 20°EL	19.18dB/K (12.5GHz, 70K LNA)
6. Power Handling Capability				1KW/Port
7. Feed Interface	WR-75			WR-75
8. Feed Insertion Loss	0.25dB			0.2dB
9. Tx to Rx Isolation	≥85dB
10. Cross Pol Isolation
On Axis	≥35dB
11. Sidelobes	CCIR.580-6
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Offset	1. Wind Loading, Operational			≤34mph(54km/h)
2. Drive Type	Manual
3. AZ Travel	0 to 360°	2. Ambient Temperature			-40°C to 60°C
4. EL Travel	10° to 90°	3. Rain			100mm/h
5. POL Travel	±90°	4. Relative Humidity			0 to 100%
6. Reflector Material	Precision formed aluminum	5. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
7. Reflector Segments	6	6. Ice		25mm on all surface or 13mm on all surface with 130km/h wind gusts
8. Mount Type	Back-pack /Tripod
9. Surface Accuracy	0.5mm (R.M.S)
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
