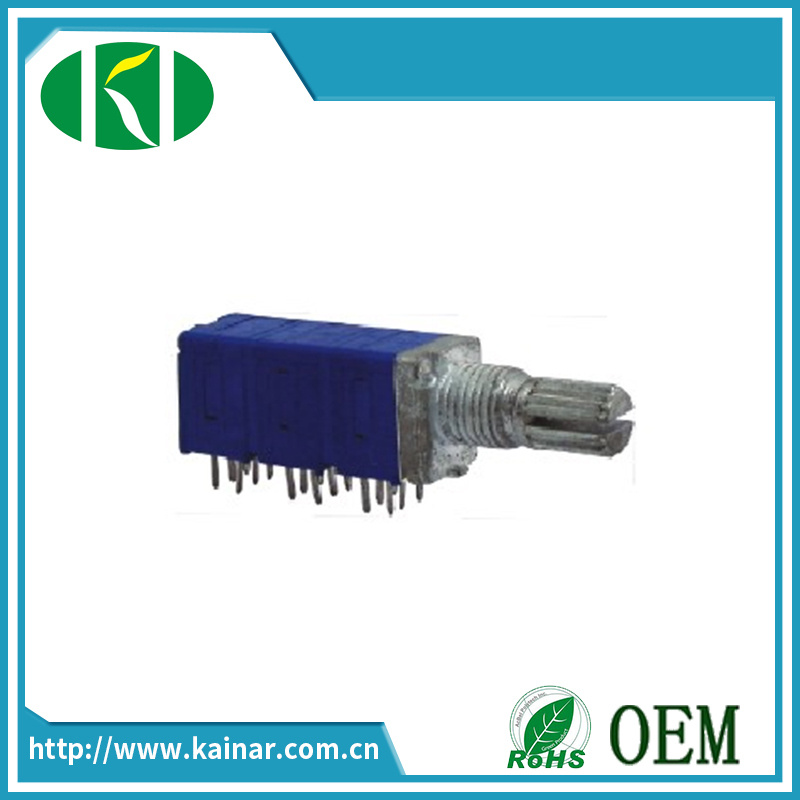

Name: 9mm Size blue Rotary Potentiomter with 6 Gang
Brand: all-electronics-online.com
SKU: 823359825
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 1.05-1.25/Piece
Min Order:	500/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH9011A-6
Resistance Range:	5-250kohm
Rated Voltage:	50V AC
Power Rating:	0.05W
Switch Life:	10000turn Min
Tolerance Of Resistance:	±20%
Total Rotation Angle:	300±5º
Operating Force:	50-250GF.Cm
Switch Rating:	DC16V 1A
Click Position:	0/1/21/32/40 Detent
Shaft Stopper Strength:	4kgf.Cm Min
Resistance:	Variable Resistor
Installation:	SMD Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Resistor
Package Type:	Carton
Quantity:	Customized
Shape:	Picture
Brand:	Kainar

Product Description

Outline Drawing

General
--This specification is applied to potentiometers used for electronic equipment.
--Operating temperature: -10º-100º

Features
--Insert molding with resin around the resistor prevents flux build up.
--small, only 9.5mm wide.

Applications
--computer speaker, DVD, car stereo etc.

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K±20%
1.2	Load power	0.1 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 200V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	50V AC
1.7	Tracking error	0~-40 dB±3 dB
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω

MECHANICAL CHARACTERISTICS

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Effective electrical angle
2.4	Rotational torque	10~50gf.cm
2.5	Shaft Push& pull Strength	≥8kgf
2.6	Click slip-out force
2.7	Shaft wobble (mm p-p)	≤0.3mm
2.8	Shaft stop Strength	>5kg.cm
2.9	Shaft wobble (mm p-p)	≤0.3mm
2.10	Rotating life	10,000 cycles

DURABILITY CHARACTERISTICS

3.1	Storage Temperature Range	-30ºC~+80ºC
3.2	Operation Temperature Range	-20ºC~+70ºC
3.3	Soldering Heat Characteristic	260°C/2.5±0.5S

Rated Products
