ABB S Model 250A 3pole Moulded Case Circuit Breaker

Name: ABB S Model 250A 3pole Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 818848625
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 45-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

SDM3 series moulded case circuit breaker mainly applies to distribution systems of 50/60Hz, 690V, 12.5~1600A. It's purpose lays in power distributing while protecting the entire system against overload, short-circuit & undervoltage, etc. It can also work as in frequent ON/OFF switch under power system or motor in normal working status.
SDM3 breaker complies to GB14048.2 & IEC60947-2 standards.

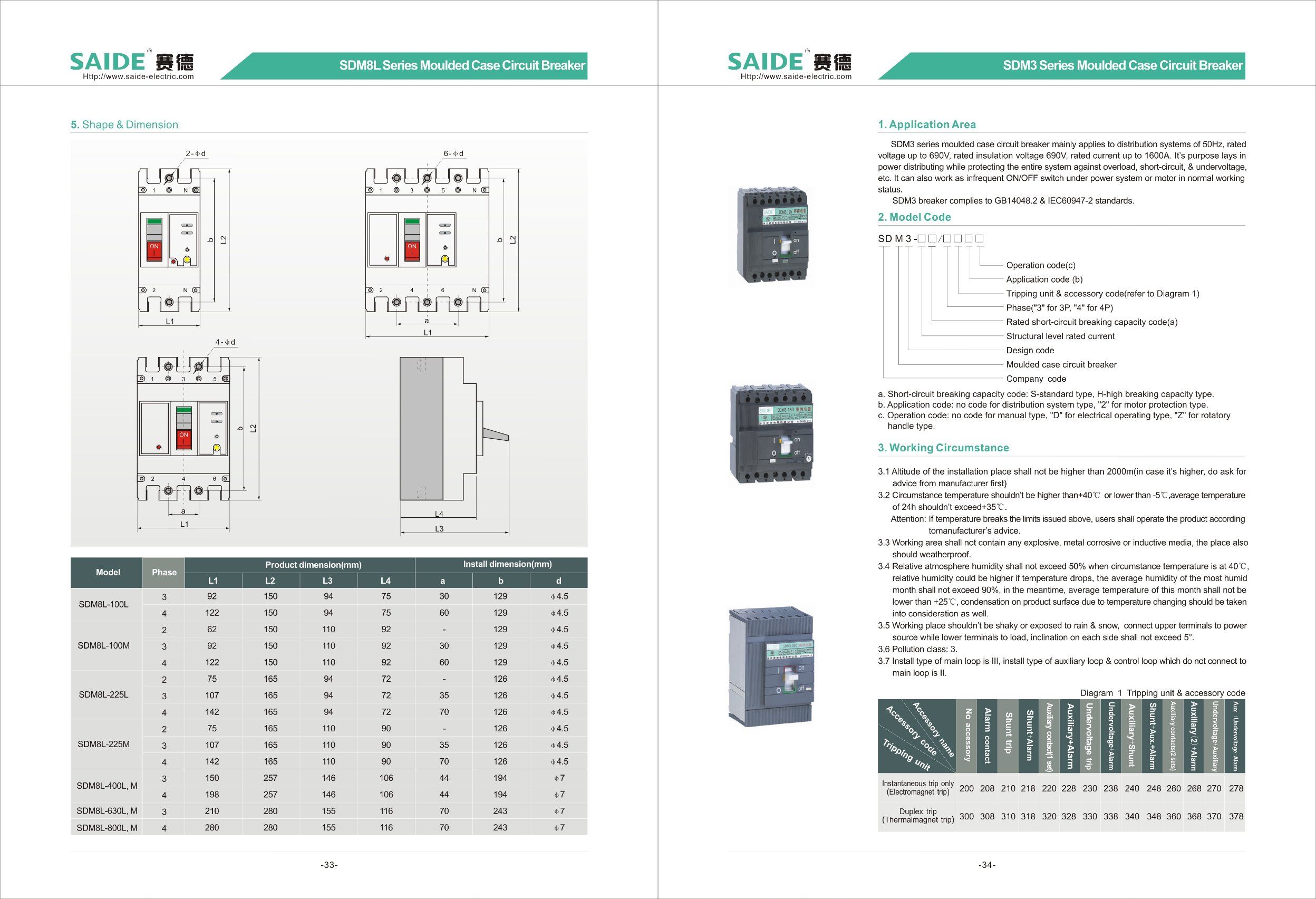

catalog

Date

Model	Structural reted current(A)	Rated current In(A)	Rated ultimate short-circuit breaking capacity Icu(kA)		Rated working short-circuit breaking capacity Icu(kA)		Arc distance (mm)
			Rated ultimate short-circuit breaking capacity Icu(kA)		Rated working short-circuit breaking capacity Icu(kA)
			AC400V	AC690V	AC400V	AV690V
SDM3-125S	63	12.5,16,20,32,40,50,63,80,100,125	25	8	16	4	≤50
SDM3-125H	63	12.5,16,20,32,40,50,63,80,100,125	50	10	42	5
SDM3-160S	100	16,20,32,40,50,63,80,100,125,160	35	8	18	4
SDM3-160H	100	16,20,32,40,50,63,80,100,125,160	50	10	42	5
SDM3-250S	225	100,125,160,180,200,225,250	35	10	18	5
SDM3-250H	225	100,125,160,180,200,225,250	65	18	48	9
SDM3-400S	400	200,225,250,315,350,400	50	16	35	8
SDM3-400H	400	200,225,250,315,350,400	65	25	48	12.5
SDM3-630S	630	400,500,630	50	20	35	10
SDM3-630H	630	400,500,630	80	30	60	15
SDM3-800S	800	630,700,800	50	20	35	10	≤100
SDM3-800H	800	630,700,800	80	30	60	15
SDM3-1000S	1000	1000	65	30	48	15
SDM3-1000H	1000	1000	80	50	60	25
SDM3-1250S	1250	1250	65	30	48	15
SDM3-1250H	1250	1250	80	50	60	25
SDM3-1600S	1600	1600	65	30	48	15
SDM3-1600H	1600	1600	80	50	60	25

About us

CHINA * SAIDE ELECTRIC CO.,LTD

Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

Tel:0086-577-62755267

Phone:18657700751

Prod Model:	SDM3
Color:	Black, White
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC
Function:	Overload, Short-Circuit, Undervoltage

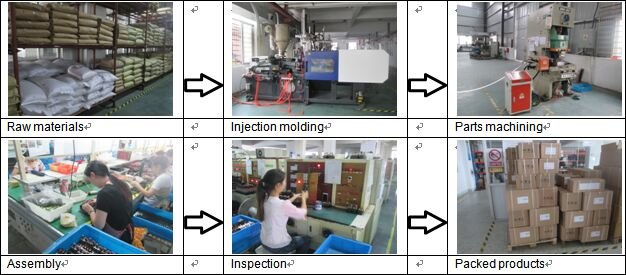

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
