Power Cables for Overhead Lines
Cables for overhead installations may be used in different types of installations: On free hanging facades between posts; On fixed facades; Trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.
-Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.
- Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.
Bundles can include one or two additional conductors for public lighting and control pair.
Product Description

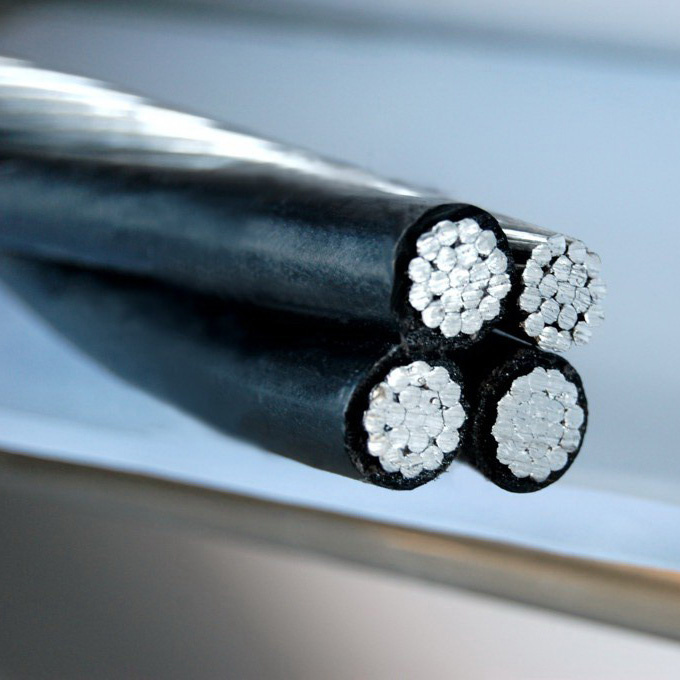

Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable
The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Standards:
(1). BS 7870-5: Part 5: Polymeric insulated aerial bundled conductors (ABC) of rated voltage 0.6/1 kV for overhead distribution
(2). NFC 33-209: Rated Voltage 0.6/1 kV Bundled Insulated Cable for Overhead Distribution
(3). AS 3560.1: Electric cables-Cross-linked polyethylene insulated-Aerial bundled-For working voltages up to and including 0.6/1(1.2) kV Part 1: Aluminium Conductor
(4). AS 3560.2: Part 1: Copper Conductor
BS-7870-5ABC Cables without Street Lighting
1+1 StructurePhase Conductor
Nominal Cross-section Area (mm2)2535507095
Number of Cores11111
Neutral Conductor
Nominal Cross-section Area (mm2)2535507095
ABC Cables without Street Lighting
3+1 StructurePhase Conductor
Nominal Cross-section Area (mm2)2535507095120
Number of Cores333333
Neutral Conductor
Nominal Cross-section Area (mm2)2535507095120

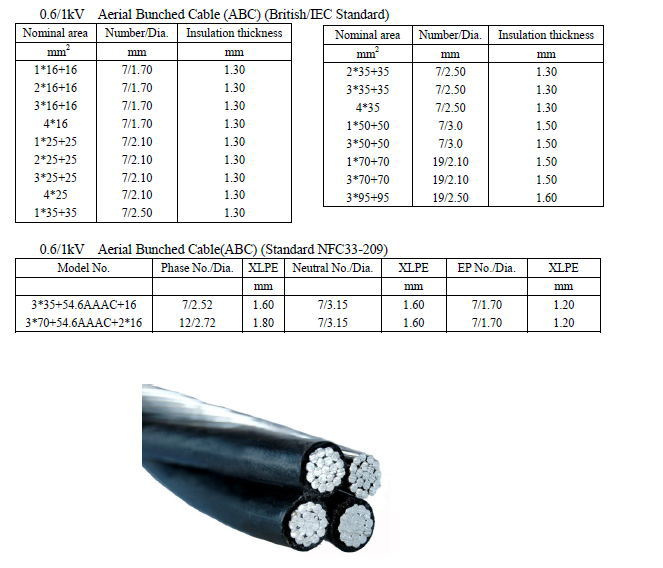

| Nominal area | Number/Dia. | Insulation thickness |
| mm 2 | mm | mm |
1*16+16
2*16+16
3*16+16
4*16
1*25+25
2*25+25
3*25+25
4*25
1*35+35 | 7/1.70
7/1.70
7/1.70
7/1.70
7/2.10
7/2.10
7/2.10
7/2.10
7/2.50 | 1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30 |
