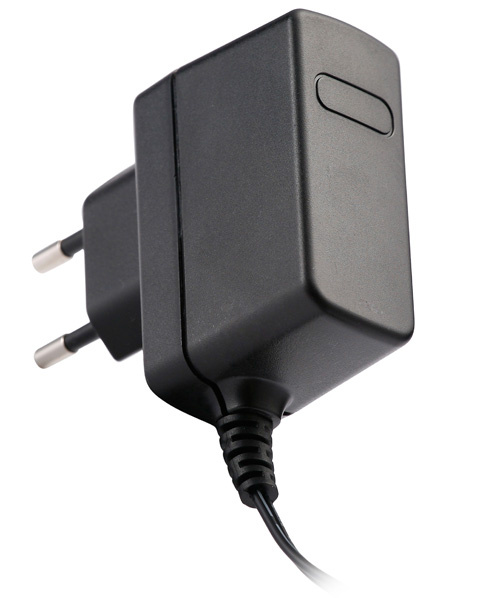

AC DC Power Adapter 5W Series Switching Mode Power Supply
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |
5W & USB Series
5W series switching mode power supply
Wall mount power unit (+USB cable)
| Features | Universal AC input/full range |
| No load power consumption<0.3W |
| Meets level V |
| Full output 3~16V safety approved |
| Protection | Overload protection |
| Over voltage protection |
| Short circuit protection |
| Fully enclosed plastic case |
| 1 year warranty |
| Pass LPS |
| Input | Input voltage:100-240Vac |
| Input frequency:47-63Hz |
| Input current: Max 0.15A |
| Inrush current: Max 30A |
| Standby power loss:<0.5W |
| Output | Output voltage:3-16V DC |
| Output current: Max. 1000mA |
| Total output power: Max. 5W |
| Hold up time: 8ms at 115Vac input |
| Ripple& noise: Max. 100m V |
| Efficiency | >60% |
| Withstand voltage | 3000Vac from input to output &ground |
| MTBF | More than 20000 hours |
| Insulation resistance | 20Mohm min, from input to output & ground |
| Environment | Operating temperature: 0--40°C |
| Storage temperature: -20°C --- 85°C |
| Cooling mode: free |
| Safety standards | UL/Cul 60950/60065 |
| CE EN60950/60065 |
| CB IEC60950/60065 |
| GS EN60950/60065 |
| PSE Appendix8 |
| EMC Standards | FCC part 15 class B |
| CE EN55022 EN61000 |
| Application | Mobile phone, Electronic cigarette, Tablet, Bluetooth headset, Water purifier, LED, Networking modem, Medical machine, CCTV camera, LCD, Set-top box, DVR, Router, Power Bank etc. |
Company profile
Juxing Electronic (Huizhou) Co., Ltd.(members of Ringsun Holdings Limited) is a professional company engaged in the research and development, manufacturing, sales and services for the wide range of power supply products at competitive prices with the finest qualities since 1993.
Switching Mode Power supply (SMPS) products covers 3W to 60W series and widely used in information technology, household, audio, video and other types of high-tech areas. All products are complied with the safety and EMC standards such as CE/GS, UL/Cul,BS,CCC, PSE,EMC,FCC,C-Tick and etc.
We pass ISO9001:2008 quality control system and ISO14001:2001 environmental control system and fulfill the RoHS, PAHs, REACH and WEEE requirements. All of products meet CEC, ErP, DoE, MEPS efficiency directive level V or above.
| Prod Model: |
5W series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Display |
| Output Type: |
DC |
| Connection: |
Plug In |
| Brand: |
Customized |
Ringsun was founded in 1993, Juxing Electronic (Huizhou) Co., Ltd is affiliated with Hong Kong Ringsun group and has been a Top 10 leading SPS consumer power supply companies in the world. Integrated with Research& Development, production, sales, service, import and export. It's a source manufacturer has been specializing in the power industry for over 20 years.
Based on the development of the power supply, Juxing continues to innovate and gradually establish the core competitiveness based on independent intellectual property rights, continuous innovation, independent design, Research& Development. Manufacturing of SMPS, mobile phone charger, car charger, quick charger, PD power supply, innovative 3C digital peripheral products. Juxing provides also customized development, AR/VR/AI, tablet computer, digital & mobile, ADSL, set-top box, medical equipment, audio and other consumer power supply. Juxing has a number of fist products, and in their respective areas of sub-champion.
The company base covers an area of more than 24, 000, hundreds of sets of advanced automatic production equipment, 500 professional employees, more than 50 R&D engineers, excellent R&D capacity, latest manufacturing facilities, and perfect sales service system constitute a high-efficiency, large-scale modern smart manufacturing enterprise. Juxing has started the globalization since 2005, our products widely cover every region of the world, 80% is exported to more than 140 countries, Europe and the United States, all over the world.
We uphold "advocate innovation, independent research and development" as the business concept, consistently develop innovative energy-saving products, become the benchmarking of the SPS consumer power industry. We insist on concentrating on the quality with the meticulous attitude, while innovating the products.
Being a super star both in China and the world, we are committed to creating the most influential brand of consumer power supply in the world. "Environmental Protection & Energy Saving, Smart Manufacturing" as the business mission, to be the leader of the "green" electronics industry.
Our products meet requirements of major international safety certifications (eg. UL, FCC, cUL, GS, CE). We have been accredited ISO9001: 2008 quality control system and ISO14001: 2001 environmental control system and fulfilled the RoHS, PAHs, REACH and WEEE requirements. With stringent quality management system in place and closed loop process technique applied, we are manufacturing high quality products to our customers all over the world.
