AC/DC12-36V 4-Channel Learning Code Univesal RF Remote Control Switch

Name: AC/DC12-36V 4-Channel Learning Code Univesal RF Remote Control Switch
Brand: all-electronics-online.com
SKU: 820483185
Availability: InStock
Rating: 5 (86 reviews)

Price:	US $ 13.2-18.3/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

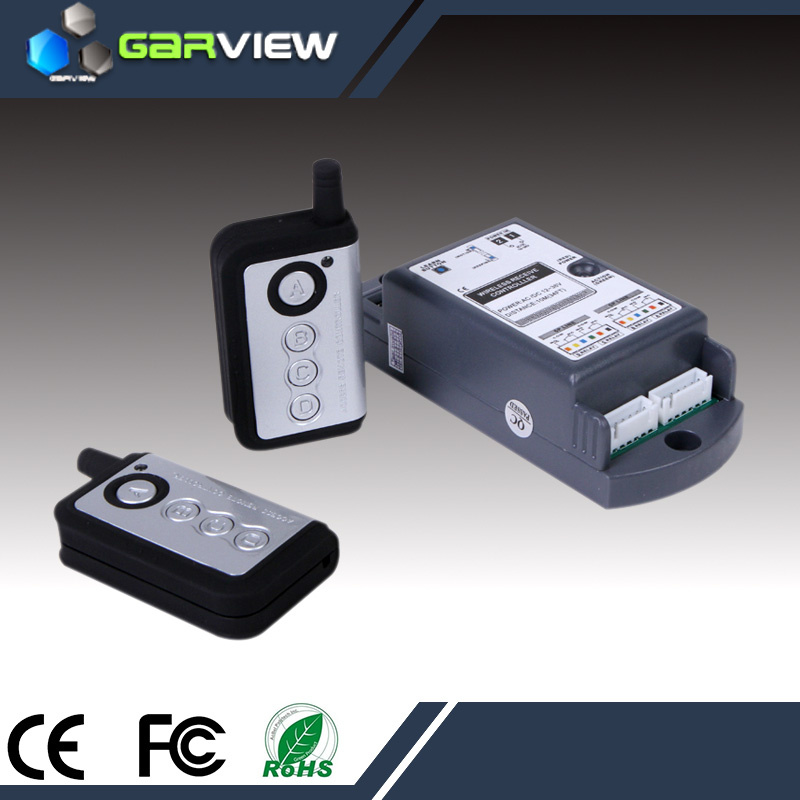

AC/DC12-36V 4-Channel Learning Code Univesal RF Remote Control Switch

Product Feature
1.This product is with the function of coding self-learn. Make sure the code of remote transmitter has been learned into the receiver before using.(16 differnt codes can be learned.)

2.Operation way: Press the learn button,indicator turns green .Press any key of the remote transmitter .Two flashes of green light --the transmitter has been learned by the controller successfully.System get back to standby state in 3S.

3.Delete method: Press the learn button for 5s, green light flashing, all codes have been deleted successfully.(Can not be deleted one by one)

4.With four groups of relay contact signal output,available to control four access equipments at the same time with the remote transmitter buttons

5.Power should be cut in case of switching the ouput function( L-type or M-type)
Otherwise,the receiver maintains the previous state

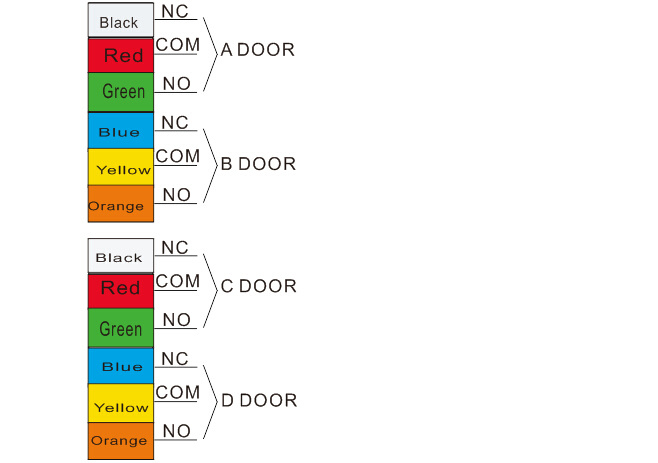

Wiring Connection

Prod Model:	GV-607M
Receiver Supply Power:	AC/DC12-36V
Static Current:	15mA
Action Current:	80mA
Relay Contact:	20A 14VDC
Contact Time:	2s
Battery Life Of Transmitter:	More Than 20000times
Transmit Distance:	10-25m
Receiver Dimension:	123mml50mmw32mm

Shenzhen Garview Technology Co., Ltd, has been specialized in automatic door control, access & attendance products for years. Garview series products are widely used in automatic door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.

We own rich experience in automatic door controlling system and product application in the market. Garview provides full series accessories for automatic door:

Infrared safety sensor, Motion activation sensor, funtional switching selector, hand free sensor, wireless touch switch, keypad access, Power for access, Electronic bolt, EM lock for sliding door…

With high quanlity products, Garview items are regularly provided to different automatic door factories, engineer contractors and export merchants. Garview Company has become a globalized professional in this field since our products exported to oversea markets such as Iran, Tukey, Portugal, the Netherlands, and has gained a good reputation among customers. In the spirit of innovative, Gariview focuses on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent and security guard.
