YUEQING HOUPU TRADING CO., LTD. >> AC Electrical Voltage Monitoring Relay

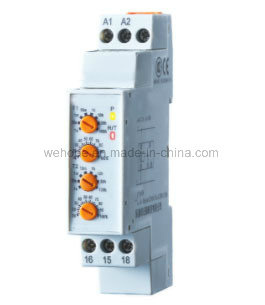

AC Electrical Voltage Monitoring Relay

AC Electrical Voltage Monitoring Relay
Price: US $ 2-9/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HPRT1
Frequency: 45Hz-65Hz DC

Product Description

1.General
 1.1 Applications
       Applied to the electrical control circuit as a delay control and instructions.

1.2 Function Features:
       -Compact in size, with a width of only 18mm that can be mounted onto 35mm symmetric DIN rail.
       -A wide time delay range of 0.1s... 100h.
       -Repeatable accuracy <=0.2% .
       -Built-in high-performance microcontroller with strong resistance to interference and high reliability.
       -Various rated supply voltage specifications available.
       -LED indicator lamp indicated "power ON'  and "time delay"  states.

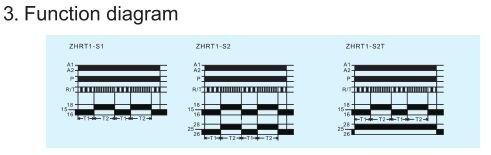

1.3 Mode and Connotation








Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
