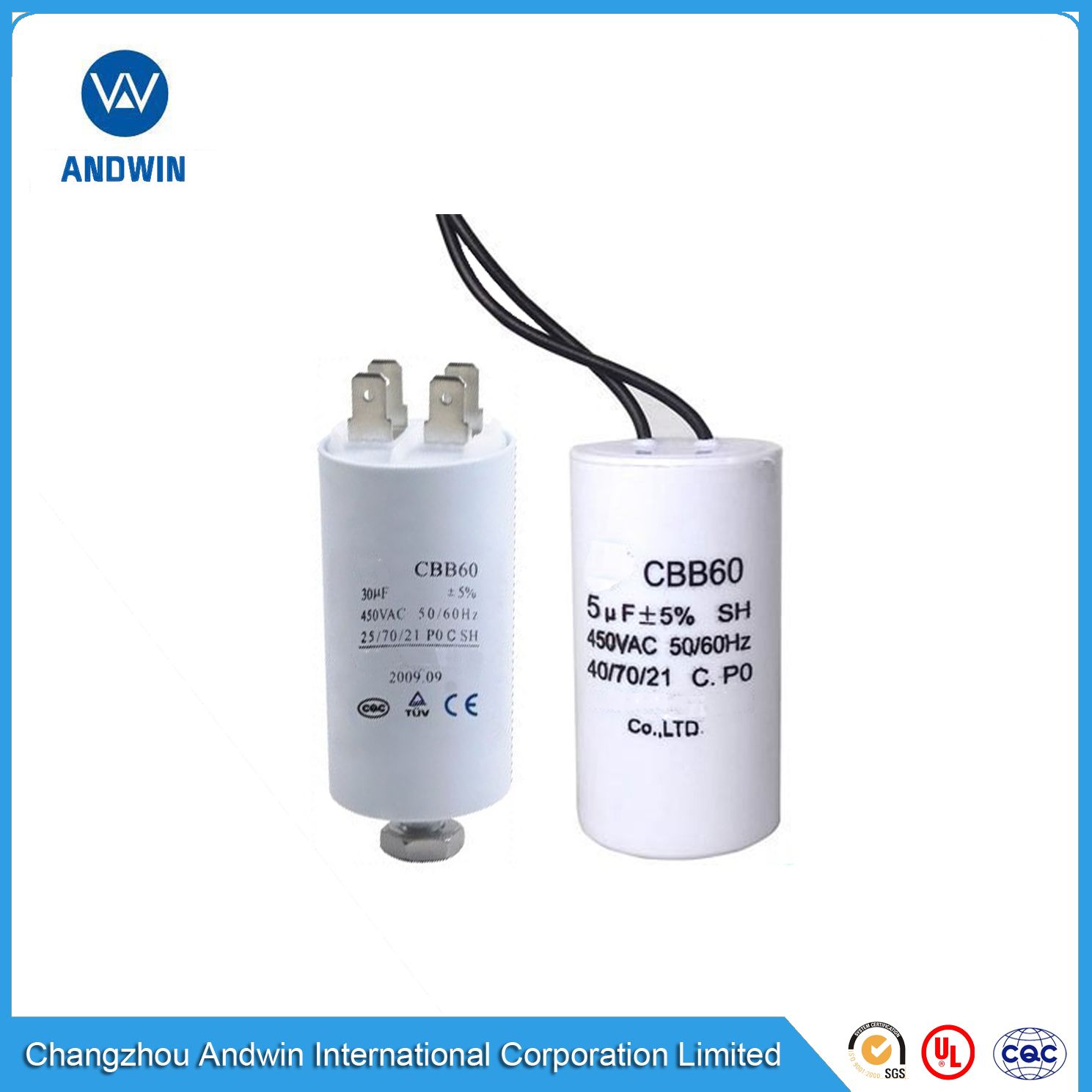

CBB60 AC motor capacitor(column,plastic case) Features:1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2:Self-healing property.
3:High stability and reliability.
Motor capacitor, oil capacitor, IGBT capacitor, aluminum case capacitor , anti-explosion capacitor ,CBB65 motor run capacitor,CBB61 capacitor, air conditioner capacitor ,fan capacitor, inverter welding capacitor,

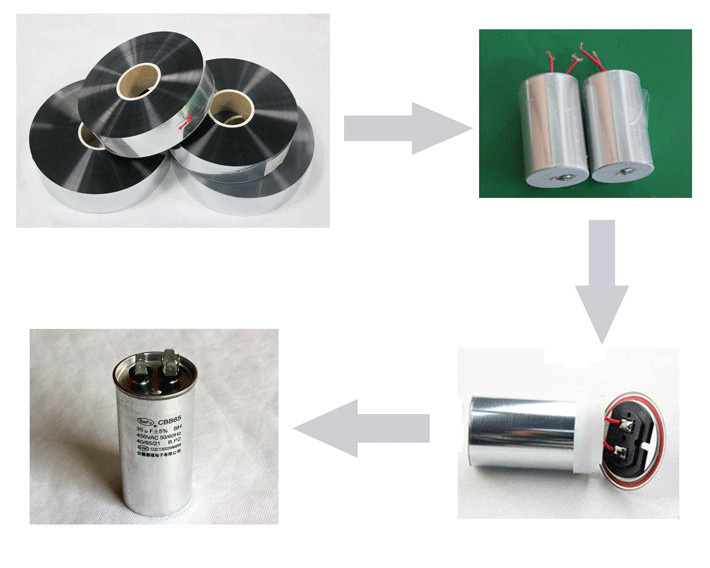

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
Insulation Resistance:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current
Dimensions & specifications (mm): | Rated voltage(VAC) | Nominal capacitance(μF) | Size(mm) |
| D | H |
200,250,370,
400,440,450,600
,700,1200 | 1,1.2,1.5,2,2.5,3,3.5,4,4.5,
5,5.5,6,6.5,7,8,10,10.5,11,
11.5,12,15,16,20,25,30,35,
40,45,50,55,60,
12+6, 10+5.5, 13+6,… | 30,32,35,40, 41,43,45,46, 50 | 47,57,65,73,80,84,85,98,105,110 |
Note:1,Terminal leads are wires or 250# (187#) single (dual) tab(s).
2,Other dimension serials can be specified in pursuance of customer's request.
| reference standards | GB/T 3667.1 (IEC60252-1) |
| Climatic category | 40/70/21, 40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | P0/P2 |
| Voltage range | 200~500VAC |
| Capacitance range | 1~60 µF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4 (100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or
2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ.µF(100Hz,20ºC,1min) |
Dimensions: | specifications | routine | with screws or pins |
| 450VAC | 250VAC | 450VAC | 250VAC |
| 1µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 2µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 2.5µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 3µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
| 3.5µF | Φ26*52 | Φ26*52 | Φ30*59 | Φ30*52 |
| 4µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
| 4.5µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
| 5µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
| 5.5µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 6µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 6.5µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 7µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 8µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 9µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
| 10µF | Φ34*62 | Φ26*52 | Φ35*72 | Φ30*52 |
| 12µF | Φ37*73 | Φ26*52 | Φ35*72 | Φ30*61 |
| 14µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
| 15µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
| 16µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
| 18µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ35*67 |
| 20µF | Φ40*70 | Φ34*62 | Φ40*72 | Φ35*67 |
| 25µF | Φ42*80 | Φ42*62 | Φ40*72 | Φ35*67 |
| 30µF | Φ42*90 | Φ40*72 | Φ45*95 | Φ40*72 |
| 35µF | Φ45*90 | Φ40*72 | Φ45*95 | Φ40*72 |
| 40µF | Φ50*100 | Φ42*90 | Φ50*110 | Φ40*97 |
| 45µF | Φ50*100 | Φ42*90 | Φ50*110 | Φ40*97 |
| 50µF | Φ50*100 | Φ42*90 | Φ50*120 | Φ40*97 |
| 60µF | Φ50*115 | Φ42*90 | Φ50*120 | Φ40*97 |
| Rating Capacity (UF) | Rating Voltage | Testing Voltage | Inslutation Resistance | Working Temperature | Loss Tangen | Frequency |
| 1-100UF | 110-630VAC | T-T 2Un/2S T-C:2200VAC,10S | T-T ≥3000M.Ωμf | - 25ºC -70ºC | < 0.002(100HZ) | 50/60HZ |
| Capacitance | 250-370VAC | 400-450VAC |
| D (mm) | H (mm) | D (mm) | H (mm) |
| 1UF | 25 | 65 | 30 | 60 |
| 5UF | 25 | 65 | 30/34/35/42 | 60/62/68/50 |
| 7.5UF | 30 | 60 | 30 | 60 |
| 10UF | 30 | 60 | 35/34/35/37 | 65/62/68/73 |
| 15UF | 35 | 65 | 40 | 70 |
| 18UF | 35 | 60 | 40 | 70 |
| 20UF | 35 | 60 | 40/42/42/50 | 70/80/90/100 |
| 25UF | 35 | 70 | 45/42/42/50 | 93/80/90/100 |
| 30UF | 40 | 70 | 45/42/50 | 93/90/100 |
| 35UF | 40 | 70 | 45/45/50 | 93/90/100 |
| 40UF | 40 | 70 | 50/50/50 | 106/90/100 |
| 45UF | 45 | 70 | 50/50/50 | 106/100/105 |
| 50UF | 45 | 70 | 50/50/50/50 | 106/100/105/107 |
| 55UF | 45 | 70 | 50/50/50/50 | 116/100/105/107 |
| 60UF | 45 | 90 | 50/50/50/50 | 116/100/105/107 |
| 70UF | 50 | 90 | 50 | 116 |
| 80UF | 50 | 100 | 55 | 120 |
| 100UF | 50 | 116 | 60 | 120 |
| 120UF | 50 | 116 | 60 | 120 |
Note:Other specifications,size and terminal outside table are negotiable. Product Flow
