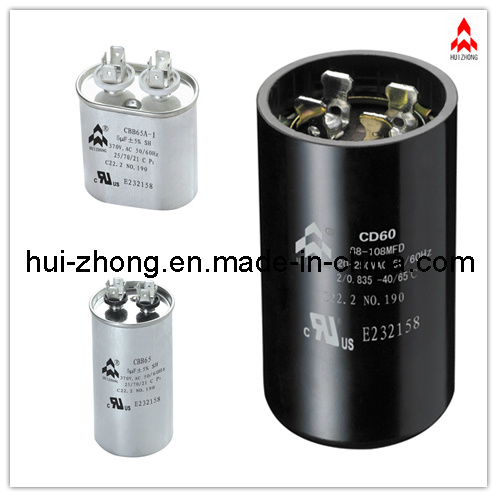

AC Motor Run and Start Capacitor Qualifed by VDE. UL. TUV. CQC. CE (CBB65 CD60)

Name: AC Motor Run and Start Capacitor Qualifed by VDE. UL. TUV. CQC. CE (CBB65 CD60)
Brand: all-electronics-online.com
SKU: 400131976
Availability: InStock
Rating: 4.7 (91 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications
1. Used widely in motors, air conditioner, water pump etc
2. High performance & Long life Capacitor.
3. Work well even in hot area
CBB65 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
Self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
Refrigerator which demand 50/60Hz AC power supply Have
Safe protection constrution.
Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD
Dimension(mm): D: Φ 40-Φ 60, H: 60-150
Reference standard: UL810, IEC252, EN60252, GB3667
Certification: UL Construction, UL 10, 000AFC, TUV, VDE
Safety grade: P1, P2.

CD60-B MOTOR START CAPAClTORS
Main Feature:
1. Bakelite case
2. Voltages from 110V AC to 330V AC
3. UL Recognized Capacitors
Applicable Scope:
To start and run single phase m0tors in alternating current usage,
And it suit for single phase A. C. Motors with frequency of 50/60Hz.
General Specifications:
Operating Temperature: -25~+65° C
Voltage Range: 110~330V AC
Capacitance Range: 21~1280μ F
Capacitance Tolerance: +/-20%
Operate Frequency: 50/60Hz
Case Size: 8 Standard Size from
1 437"X2.750" ~2 562"X4.375"/36mm X 70mm~65mm X111mm
Termination: 1/4 " Quick Disconnect Terminals(Std. )
Performance Specification: Meets Requirements of ElA-463-A
Product Description
CD60 start capacitor is developed and researched according to standard of American
Electronics Association (ANSI/EIA-463). The external case of the capacitor is made of
Bakelite plasticized which Character is not only good insulating resistance. Strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular
Used for the super AC application as good life, higher degree of reliability and stability.

Prod Model:	CBB65 CD60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Aluminum Electrolytic Capacitor
Application:	AC / Motor

We were founded in 1991 and later developed to a company with working force of over 500staffs, among which are 50 technicians. Our working facilities cover an area of 100, 000 square meters with floor area of 25, 000 square meters.

We are specialized in manufacturing all kinds of metallized film AC/DC capacitor, aluminum electrolytic capacitor, power capacitors, motor capacitors, etc. With fixed assets reaching USD5, 000, 000, we own a special production line of annual output over 4, 000, 000 electronic containers.

Our products have gained an envious reputation overseas due to their high quality standards and consistent performance under all conditions. Together with UL, CE, CCEE, VDE and TUV certification that we have received for various series, we have also obtained ISO9001: 2000 authorization.

Our pursuit of first-rate quality, competitive prices and comprehensive after-sales services offers both potential and long-standing clients confidence in our company. If your business needs any of the products we have available, please contact us with your details of your specific requirement.
