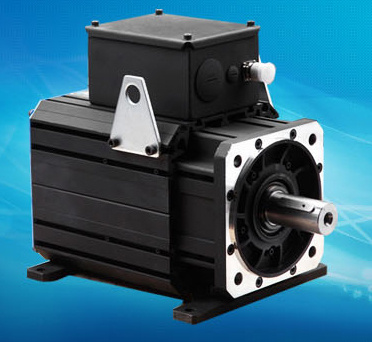

AC Permanent Magnet Servo Motor (215YS17F 40nm 1700rpm)

Name: AC Permanent Magnet Servo Motor (215YS17F 40nm 1700rpm)
Brand: all-electronics-online.com
SKU: 769626885
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 650-700/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	15/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Motor Identifier: 215YS17F
Nominal torque T₁₀₀: 40 N.M
Nominal speed n_N: 1700 RPM
Nominal power P_n: 7.5 KW
Maximum speed W_max: 2150 RPM

Rotor inertia J_m: 5.41/5.22 kg m² 10^-3
Motor insulation: F grade
Winding insulation: H grade
Cooling: Air cooling
Waterproof: IP54
Threshold of built-in PTC: 130 ºC
Pole number: PN=8
Winding connection: Y type
Torque constant K_t: 2.81 Nm/A
Winding resistance R_w: 1.232 Ohm
Winding inductance L_w: 15.518 mH
Nominal voltage V_n: 380 Vrms
Back Electromotive Force @ 1000RPM V₁₀₀₀: 173 Vrms
Nominal current I_n: 15.5 Arms
Working frequency F_n: 113 Hz

Motor suspended in horizontal position in free still air, ambient temperature of 20 ºC
Motor flanged connection in horizontal position, ambient temperature of 20 ºC
With interference coupling and infinite load inertia applied in the middle of the shaft extension
Standard type
Typical value at tolerance of ±10%

Prod Model:	215YS17F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor:	Servo Motor
Usage:	Injection Molding Machine Servo Motor
Modle:	215ys17f 40nm 1700rpm
Same As:	1004f17.3
Nominal Torque:	40nm
Nominal Speed:	1700rpm
Nominal Power:	7.5kw
For Oil Pump:	25cc Oil Pump for Injection Molding Machine
Number Of Stator:	Three-Phase
Function:	Servo
Certification:	CE
Brand:	Yunsheng

Ningbo Yunsheng Co., Ltd, with its more than ten subsidiary enterprises, such as:

Ningbo Yunsheng High-tech Magnetics Co., Ltd.,

Ningbo Yunsheng Motor Co., Ltd.,

Ningbo Yunsheng Servo Control Division,

And Nikko Electric Industry Co., Ltd., etc.,

Is a state key high-tech enterprise listed among the top 100 of China's Electronic and Information Technology Companies and designated as a home for post-doctorate research station. It has been listed (IPO) in Shanghai Stock Exchange since October 30, 2000.

The Servo Motor Division, inheriting the corporate culture gene from its holding company Ningbo Yunsheng Co., Ltd., is devoted to supply various servo motors in the field of equipment application on a basis of research in new materials, new energy and mechanical-electronic integration industry. And commits to be growing up together with its valuable customers The company established a professional institute on the R&D of the servo technology by an excellent team comprising about thirty high-end research staff of which have the degrees of master or doctor, which ensures the leading position in technology of the company With the high-quality rare earth magnets produced by Ningbo Yunsheng High-Tech Magnetics Co., Ltd., assembled in the rotors and other key components with world-class quality, the company always pursuant to assure the reliability and consistency of the product effectively. We are committed ourselves to provide every single high-quality motor, with equipped by the imported top-rank servo motor manufacturing facility, and the implementation of a strict quality control system.
