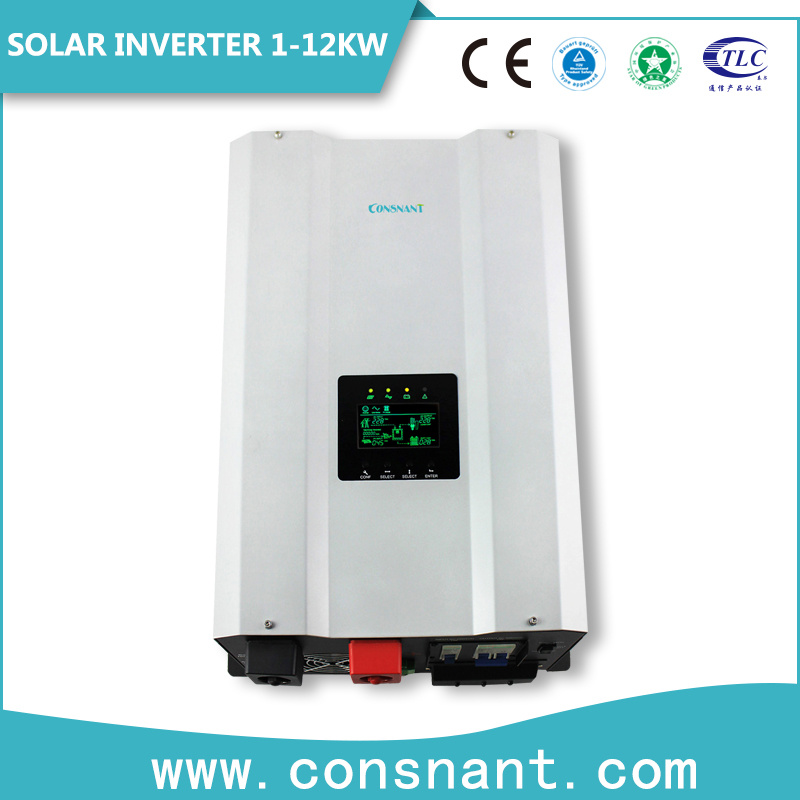

AC - Solar Charging off Grid Hybrid Solar Inverter 1-12kw
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
CNS110 Series AC/Solar charging Off Grid Hybrid Inverter.LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design.
Built-in 40A/60A optional MPPT solar charger controller.
LCD shows the solar capacity.
5 stages adjustable AC charging current. AC charging also can be closed.
AC/DC priority modes can be set.
Generator restart signal. (Dry contact)
3 times peak power. Strong loading capacity.
Overload, output short-circuit protection.
CNS110 Series Technical Speicfication| Patameters Model | CNS110-4KW | CNS110-5KW | CNS110-6KW | CNS110-7KW | CNS110-8KW | CNS110-10KW |
AC
Input | Nominal Power | 4000W | 5000W | 6000W | 7000W | 8000W | 10KW |
| Input Voltage Waveform | Nominal input Voltage |
| Nominal input Voltage | 120/230VAC | 230VAC |
| Low Line Disconnect | 85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V / 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V |
| Low Line Re-connect | 95Vac±4%(Normal) or 85Vac±4% (Wide) for 120V / 194Vac±4%(Normal) or 145Vac±4%(Wide) for 230V |
| High Line Disconnect | 136Vac±4%(Normal) or 140Vac±4%(Wide) for 120V / 263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V |
| High Line Re-connect | 131Vac±4%(Normal) or 135Vac±4% (Wide) for 120V / 253Vac±4%(Normal) or 253Vac±4%(Wide) for 230V |
| Max AC input Voltage | 120V for Max150V | 230V for Max270V |
| Frequency | 50Hz:41-54Hz / 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms / HV:230Vac ±10%rms | HV:230Vac ±10%rms |
Nominal Output
Frequency (Hz) | 60Hz ± 0.3Hz 50Hz ± 0.3Hz |
Solar
charger | Rated Charge Current | 60A |
Max.PV open circuit
array voltage | 24V for 55Vdc / 48V for 110Vdc |
| Charger mode | MPPT |
PV Low Voltage
Re-connect | PV≥Bat.V=3V |
PV Low Voltage
Disconnect | PV<=Bat.V |
| Efficiency | ≥97% |
AC
Charger | Nominal Charger
Current | 35A/50A/70A(According to the inverter model) |
| 5 stages adjustable charging current |
| Over charge Protection | Bat.V≥31.0VDC for 24V battery ,Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s |
| Three-stage charging | Three stage:Boost cc (constant current stage) |
| Boost CV (constant voltage stage) |
| float (conatant voltage stage) |
| Efficiency | Efficiency(Battery Mode) | ≥87% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 24/48VDC | 48VDC |
| Low Battery Alarm | 21VDC±0.6VDC for 24VDC |
| 42VDC±1.2VDC for 48VDC |
| Low DC input shut-down | 20VDC±0.6VDC for 24VDC |
| 40VDC±1.2VDC for 48VDC |
High DC input
Alarm & Fault | 32VDC±0.6VDC for 24VDC |
| 64VDC±1.2VDC for 48VDC |
High DC input
Recovery | 31VDC±0.6VDC for 24VDC |
| 62VDC±1.2VDC for 48VDC |
Transfer
Time | AC to DC | 20ms(max) |
| DC to AC | 15ms(max) |
System
Parameter | Over-Load Protection | 110%the output,load>150%,beeps 0.5s every 1s,and Fault after 20s |
Output Short Circuit
Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Power Saver | Load≤25W(Enabled on "P/S auto"Setting of Remote control) |
| Protections | Low battery, over charging, over load, over temp |
| Indicators | LED+LCD Display |
General
Specifications
| Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | 15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 530*396*190mm | 627*416*204mm |
| Carton size (L*W*H) | 607*512*286mm | 717*532*301mm |
| Net Weight(kg) | 32.0kg | 36.5kg | 40.5kg | 43.5kg | 50.0kg | 57.5kg |
| Prod Model: |
CNS110 |
| Mode: |
Intelligent Mode, AC Mode, DC Mode |
