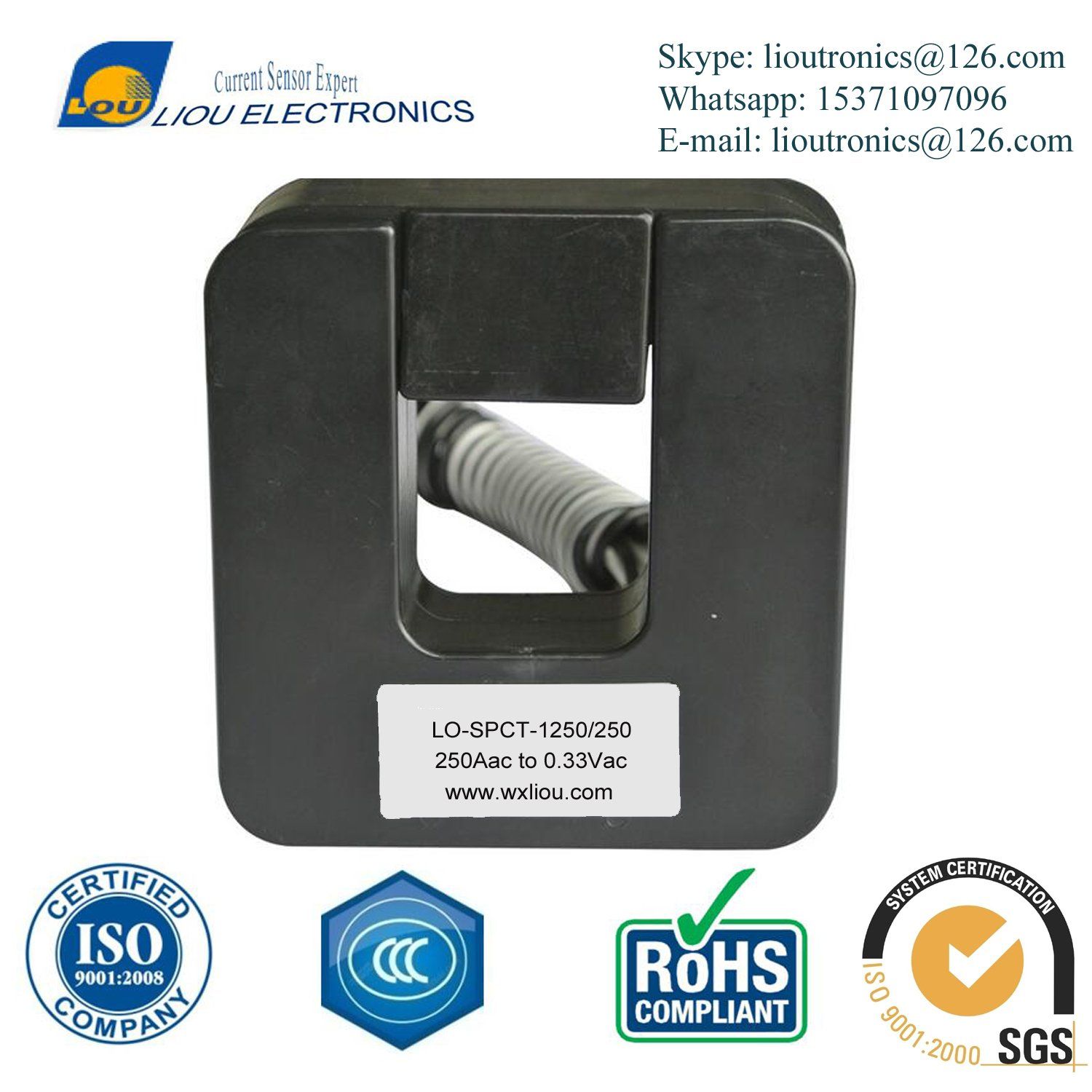

AC Split Core Current Transformer Lo-Spct-1250
| Price: |
US $ 2.5-3.9/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Western Union |
Split core current transformersDescriptionSplit core AC current sensors have different hole sizes and current ratings to suit any application. Split core models are perfect for retrofits. Output is fixed at the industry standard .
Application• Data logging • Recording • Power monitoring
• Energy management • Alternative energy monitoring
• Cost allocationFeatures• High accuracy at 10-150% of rated current
• AC isolation resistance: 3KV for 60s
• Swing open for ease of installation • Phase angle < 2 maximum at 50% rated current• Rigid housing case with UL® 94V-0 durable plastic
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
ConformIEC60044-1•Internal precision burden resistor across secondary.Specificaiton| Model | I.D. | Rated Amps | Output | Accuracy | SIZE(mm) |
| A | B | C | D | E |
| LO-SPCT-0750 | 0.75" | 5, 15, 30, 50, 70, 100, 150, 200 | 0.333V | 1 | 51.6 | 54.1 | 16.6 | 19.1 | 18 |
| (19.1mm) |
| LO-SPCT-1250 | 1.25" | 70, 100, 150, 200, 250, 300, 400, 600 | 1 | 82.3 | 85.3 | 26.4 | 32 | 32.3 |
| (31.8mm) |
| LO-SPCT-2000 | 2.00" | 400, 600, 800, 1000, 1200 | 1 | 120 | 125 | 29.6 | 52.5 | 52 |
| (50.8mm) |
| LO-SPCT-3000 | 3.00" x 5.00" | 1000, 1200, 1500,2000.3000 | 1 | 145 | 199 | 30.5 | 76 | 130 |
| (76.2mm x127mm) |
| Prod Model: |
LO-SPCT-1250 |
| Phase: |
Single |
| Safety Standard: |
IEC60044-1 |
| Frequency: |
50-60Hz |
| Flame Retardant: |
UL94V-0 |
| Thermal Class: |
Class B |
| Packaging: |
Carton |
| Production Process: |
Plastic Case |
| Material: |
Ferrite Core |
| Application: |
Measurement |
Quality Standard and Custom Design Products
LIOU Current Transformer has been an industry leader in design and production of current transformer products for over 20 years. Our focus is to build quality products designed to meet your needs. You may choose from any of our standard products or we can design and build a custom solution specifically for your application.
Designed, Manufactured and Distributed From One Location
Every aspect of your order is handled in house allowing us the opportunity to design, manufacture and ship your current transformer product quickly. Each order is reviewed by one of our qualified engineers to make sure the product you are ordering will work for you.
Superior Goals and Higher Expectations
It is the goal of LIOU Current Transformer to maintain its position as a worldwide industry leader in current transformer design and production. We will accomplish this by providing you with quality products and services that meet or exceed your current and future expectations.
Our Objective Is For You to Have Full Confidence in LIOU Current Transformer.
Each employee, at every level within the company, understands your satisfaction is fundamental to our growth and long-term development. LIOU Current Transformer believes that this level of quality will be achieved by:
1. A Total Quality Management approach. Every employee, supplier and customer is regarded as an essential part of the quality achievement process.
2. An error-free performance standard, based on prevention and development of a "Get It Right The First Time" work environment.
3. Implementation and maintenance of a quality assurance process that includes a hands on inspection of all your products during the manufacturing process with a final quality inspection prior to shipping.
4. Adhering to safety standards.
5. Development of all employees through continued training.
We look forward to demonstrating to you the superior quality and customer service our customers have come to expect from LIOU Current Transformer.
