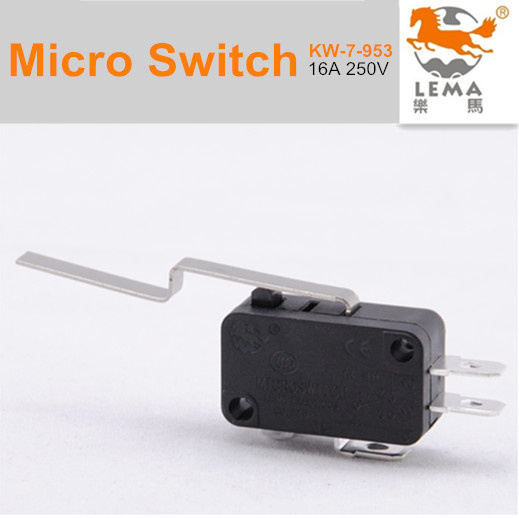

AC T85 16A 250V UL VDE CE Micro Switch Kw-7-953

Name: AC T85 16A 250V UL VDE CE Micro Switch Kw-7-953
Brand: all-electronics-online.com
SKU: 689685792
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

AC T85 16A 250V UL VDE CE Micro switch

Features:
Various levers and terminals are available for choice.
Various operating force are available.
Snap action, compact design, suit for small space.
Long operating life, high reliability, which could save the cost.
Various rating and temperature resistance degree are available.
CCC, CE, UL, VDE approvals.

Application:
Home appliance, Electronic device, Automation equipment, Communication equipment, Auto electronic, Instrument and meter, Sprayer machine, Water pump, Game machine, Air conditioner, Electric tool etc.

Contact type: SPDT (NO+NC)

Rating		3A,8A,16A/250VAC,125VAC 0.6A/125VDC 0.3A/250VDC
Initial contact resistance		≤25mΩ
Initial insulation resistance ( At 500V DC)		≥100mΩ
Dielectric strength	Between non-consecutive terminal	1000Vrms,50/60Hz,1min
	Between current carrying and non-carry metal parts	1500Vrms,50/60Hz,1min
	Between ground and each terminal	1500Vrms,50/60Hz,1min
Max.shock resistance	Mechanical durable	1000m/s2
	Malfunction	300m/s2
Vibration resistance		10-55Hz , 1.5mm double amplitude
Expected life	Mechanical	20000000
	Electrical	100000
Ambient temperature		-25 to +85
Ambient humidity		90%RH max
Operating frequency	Mechanical	60 times/min
	Electrical	25 times/min
Operation speed		0.01mm-1m/s

Prod Model:	AC T85 16A 250V UL VDE CE Micro switch KW-7-953
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rating:	16A; 125 / 250VAC
Characteristics:	Compact Design, Long Electrical Life
Certificates:	CCC, CE, UL, VDE
Color:	Green, Black , Grey or on Request
Kw-7 Size:	27.815.96.3mm
Meas:	54.521.528 Cm
Actuators:	Hinge, Roller, Simulated Roller etc
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Normal Size
Breaking Form:	Single Type
Environment:	﹤250℃
Breaking Capacity:	General Type
