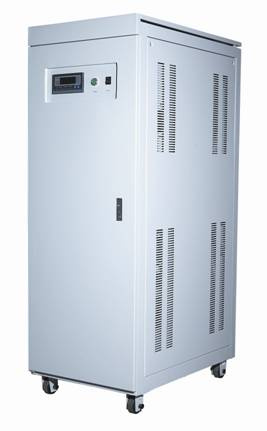

AC Voltage Stabilizer for CNC Equipments (SBW, DBW 10-2000kVA)
| Price: |
US $ 1000-20000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Our company designed elaborately this voltage regulator due to the high requirement of CNC machine tool and auto finish machining equipment for the quality of electric network. The voltage regulator for CNC machine tool has the functions of high frequency interference resistance, anti-electromagnet, and anti-surge. It enjoys the features of split phase regulation, regulating rapidly and noiselessness.Features and benefits:
1. Wide voltage regulation range; 165-275V
2. Continuously working, can withstand short time overload
3. Over voltage, under voltage, over current auto protection
4. Single-way output or multi-way output on request
5. Surge protector, EMI filter on request| Model | DBW | SBW |
| Capacity (KVA) | 1000 |
| Input voltage | Single Phase: 220V±20% |
| Three Phase:380V±20% |
| Output voltage | Singel Phase:220V- 230V(Adjustable) |
| Three Phase: 380V - 405V(Adjustable) |
| Output accurac y | ±1-5% Upon your request |
| Frequency | 50Hz |
| Insulation resistance | ≥2MΩ |
| Noise | <55dB |
| Voltage regulation mode | Independent phase regulation |
| Wave deformation | Nil |
| Insulation class of transformer | H class |
| Wire system | Single Phase |
| Three Phase : 3-Phase-4-wire-system or 3-Phase-5-wire system |
| Operation time | ≥80,000 hours |
| Long Life Time Carbon brush | 140,000 times with only about 0.01mm roller carbon brush abrasion |
| Method of voltage regulation | Regulation transformer with servomotor |
| Insulated strength | Single phase: 2000V/1min without puncture |
| Three phase: 2500V/1 min without puncture |
| Package Material | Carton for batch volume, Wooden packing for small volume |
| Efficiency | >96% |
| Housing | IP20(Indoor) | IP55(Outdoor) |
| Electrical safety | CE equivalent |
| Operating temperature | -20 °C to +50 °C |
| Altitude | <1000m |
| Relative Humidity | <90% |
| Material of Sliding coil | Copper, and inner and outer winding both |
| Functions | Malfunction protection;Short-circuit protection, |
| Lack Phase protection; Manual bypass,Safe start |
| Alarm and silence, Under/Over voltage Protection |
| Optional Functions | Auto Power-on;Isolation Transformer;
Surge Protection;Remote Monitor |
|
| Phase | Model | Capacity(KVA) | Dimension(H×W×D)mm | Cabinet(QTY) |
| Single Phase | DBW-10 | 10 | 1020×300×700 | 1 |
| DBW-15 | 15 | 1020×300×700 | 1 |
| DBW-20 | 20 | 1020×300×700 | 1 |
| DBW-30 | 30 | 1020×300×700 | 1 |
| DBW-50 | 50 | 1120×380×750 | 1 |
| DBW-80 | 80 | 1220×400×780 | 1 |
| DBW-100 | 100 | 1220×400×780 | 1 |
| DBW-150 | 150 | 1420×450×930 | 1 |
| DBW-200 | 200 | 1420×450×930 | 1 |
| Three Phase | SBW-10 | 10 | 1020×300×700 | 1 |
| SBW-20 | 20 | 1020×300×700 | 1 |
| SBW-30 | 30 | 1020×300×700 | 1 |
| SBW-50 | 50 | 1120×380×750 | 1 |
| SBW-80 | 80 | 1220×400×780 | 1 |
| SBW-100 | 100 | 1220×400×780 | 1 |
| SBW-150 | 150 | 1420×450×930 | 1 |
| SBW-200 | 200 | 1520×520×980 | 1 |
| SBW-300 | 300 | 1720×600×1380 | 1 |
| SBW-500 | 500 | 1860×720×1580 | 1 |
| SBW-800 | 800 | 1860×900×1080 | 1 |
| SBW-1000 | 1000 | 1860×900×1080 | 2 |
| SBW-1500 | 1500 | 1860×900×1080 | 3 |
| SBW-2000 | 2000 | 1860×900×1080 | 3 |
| Prod Model: |
SBW, DBW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coil: |
Copper |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SVC |
| Frequency: |
Industrial Frequency |
| Brand: |
Modern |
Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.
Experienced and Fully Customizable Solutions
As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.
ISO 9001: 2008 Certified Processes
ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.
Outstanding Service
As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
