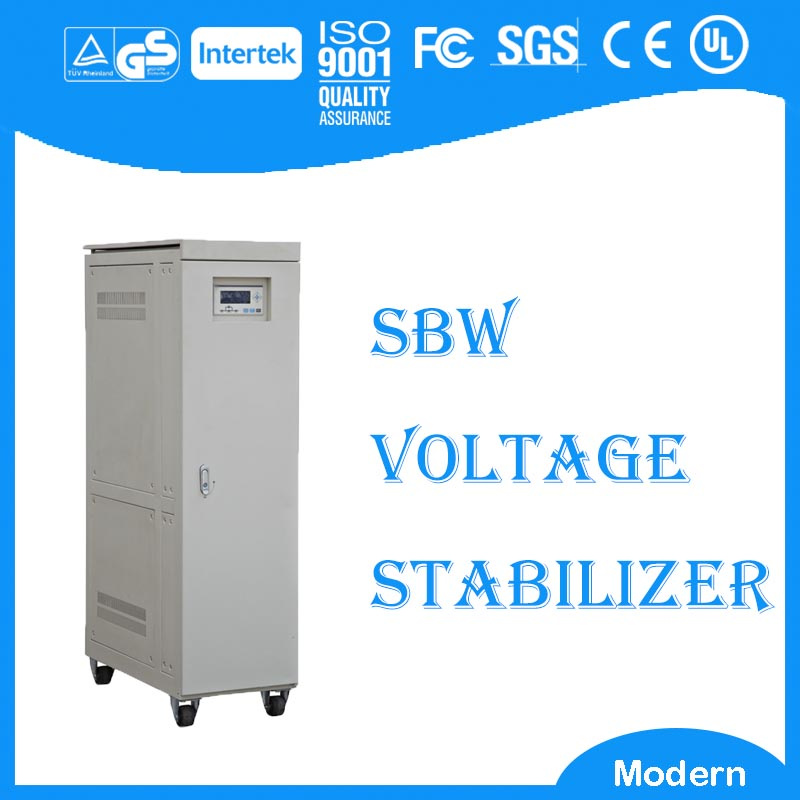

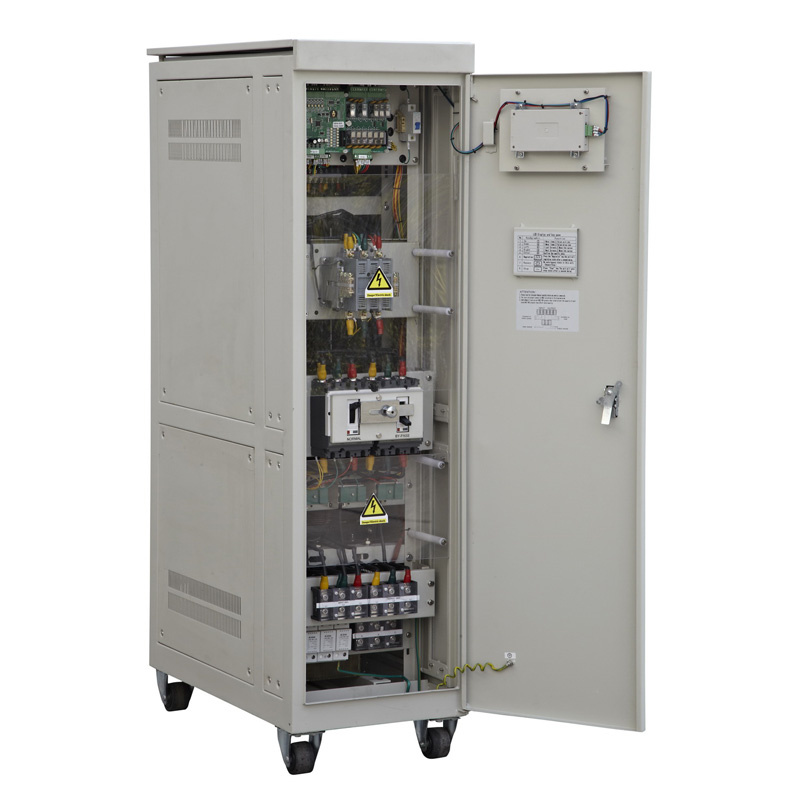

AC Voltage Stabilizer (SBW-25, 30, 50, 80, 100 kVA)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage Stabilizers provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.
Each stabilizer has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.
Features
1.Extremely wide voltage regulation range
2.Maintenance free roller type carbon brush
3.Individual regulation with unique small dimension
4.Maximum capacity up to 5000KVA
5.High Mean time Between Failure(MTBF)
6.Reliable and quiet servo motors
7.Wheels mounted for easy installation
8.Start up delay to prevent over current inrush
9.Isolation transformer on request
10.Indoor or outdoor version on request
Applications:
BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .| Model | DBW | SBW |
| Input voltage | Single Phase: 220V±20% |
| Three Phase:380V±20% |
| Output voltage | Singel Phase:220V- 230V(Adjustable) |
| Three Phase: 380V - 405V(Adjustable) |
| Output accuracy | ±1-5% Upon your request |
| Frequency | 50Hz |
| Insulation resistance | ≥2MΩ |
| Noise | <55dB |
| Voltage regulation mode | Independent phase regulation |
| Wave deformation | Nil |
| Insulation class of transformer | H class |
| Wire system | Single Phase |
| Three Phase:3-Phase-4-wire-system or 3-Phase-5-wire system |
| Operation time | ≥80,000 hours |
| Long Life Time Carbon brush | 140,000 times with only about 0.01mm roller carbon brush abrasion |
| Method of voltage regulation | Regulation transformer with servomotor |
| Insulated strength | Single phase: 2000V/1min without puncture |
| Three phase: 2500V/1 min without puncture |
| Package Material | Carton for batch volume, Wooden packing for small volume |
| Efficiency | >96% |
| Housing | IP20(Indoor) | IP55(Outdoor) |
| Electrical safety | CE equivalent |
| Operating temperature | -20 °C to +50 °C |
| Altitude | <1000m |
| Relative Humidity | <90% |
| Material of Sliding coil | Copper, and inner and outer winding both |
| Functions | Malfunction protection;Short-circuit protection, |
| Lack Phase protection; Manual bypass,Safe start |
| Alarm and silence, Under/Over voltage Protection |
| Optional Functions | Auto Power-on;Isolation Transformer;
Surge Protection;Remote Monitor |
| |
| Phase | Model | Capacity(KVA) | Dimension(H×W×D)mm | Cabinet(QTY) |
| Single Phase | DBW-10 | 10 | 1020×300×700 | 1 |
| DBW-15 | 15 | 1020×300×700 | 1 |
| DBW-20 | 20 | 1020×300×700 | 1 |
| DBW-30 | 30 | 1020×300×700 | 1 |
| DBW-50 | 50 | 1120×380×750 | 1 |
| DBW-80 | 80 | 1220×400×780 | 1 |
| DBW-100 | 100 | 1220×400×780 | 1 |
| DBW-150 | 150 | 1420×450×930 | 1 |
| DBW-200 | 200 | 1420×450×930 | 1 |
| Three Phase | SBW-10 | 10 | 1020×300×700 | 1 |
| SBW-20 | 20 | 1020×300×700 | 1 |
| SBW-30 | 30 | 1020×300×700 | 1 |
| SBW-50 | 50 | 1120×380×750 | 1 |
| SBW-80 | 80 | 1220×400×780 | 1 |
| SBW-100 | 100 | 1220×400×780 | 1 |
| SBW-150 | 150 | 1420×450×930 | 1 |
| SBW-200 | 200 | 1520×520×980 | 1 |
| SBW-300 | 300 | 1720×600×1380 | 1 |
| SBW-500 | 500 | 1860×720×1580 | 1 |
| SBW-800 | 800 | 1860×900×1080 | 1 |
| SBW-1000 | 1000 | 1860×900×1080 | 2 |
| SBW-1500 | 1500 | 1860×900×1080 | 3 |
| SBW-2000 | 2000 | 1860×900×1080 | 3 |
| Prod Model: |
SBW Automatic Voltage Stabilizer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
DBW |
| Frequency: |
Industrial Frequency |
| Brand: |
Modern |
Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.
Experienced and Fully Customizable Solutions
As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.
ISO 9001: 2008 Certified Processes
ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.
Outstanding Service
As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
