Accuracy 0.1 0.2 Minature Current Transformer for Electrical Watthour Meter

Prod Model:	GWTAD020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Frequency Bound:	50/60Hz
Using Terms:	-40 _+85 Degree
Shell Material:	PBT or ABS
Accuracy Class:	0. 1 0.2
Design Advantage:	Miniature Type
Power Rating:	100va
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer

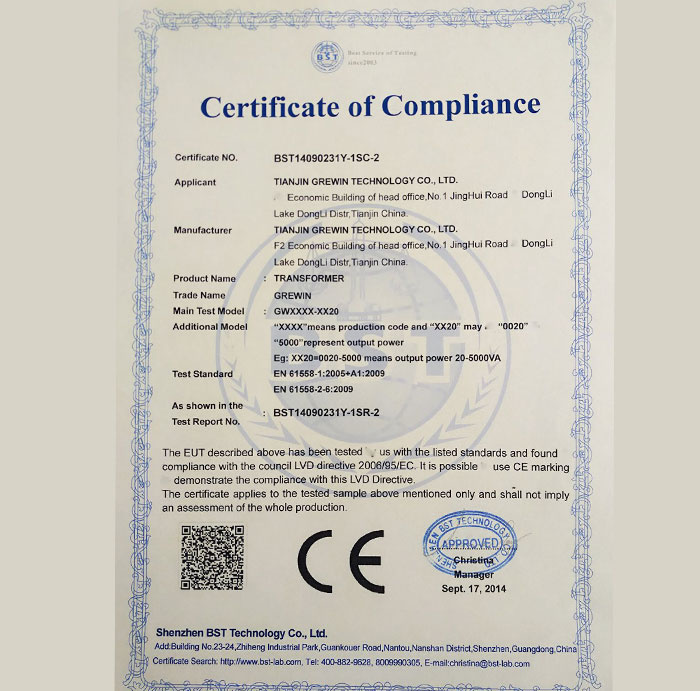

Certification:	Ce,SGS
Brand:	Grewin

Product Description

The GREWIN TAD series of current transformers for electronic watthour meters with DC-tolerance are designed for applications where AC current signals or half wave rectified DC current signals must be transformed accurately into a lower current signal appropriate for micro-processor based circuits. A new TA model can be designed and manufactured to meet the specific design challenges of the client's specific application. The following models are only a small sampling of the many different products which have been and are currently being manufactured.

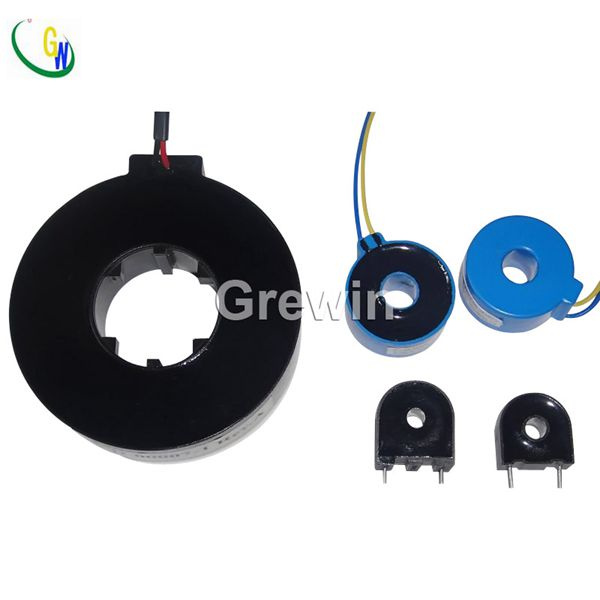

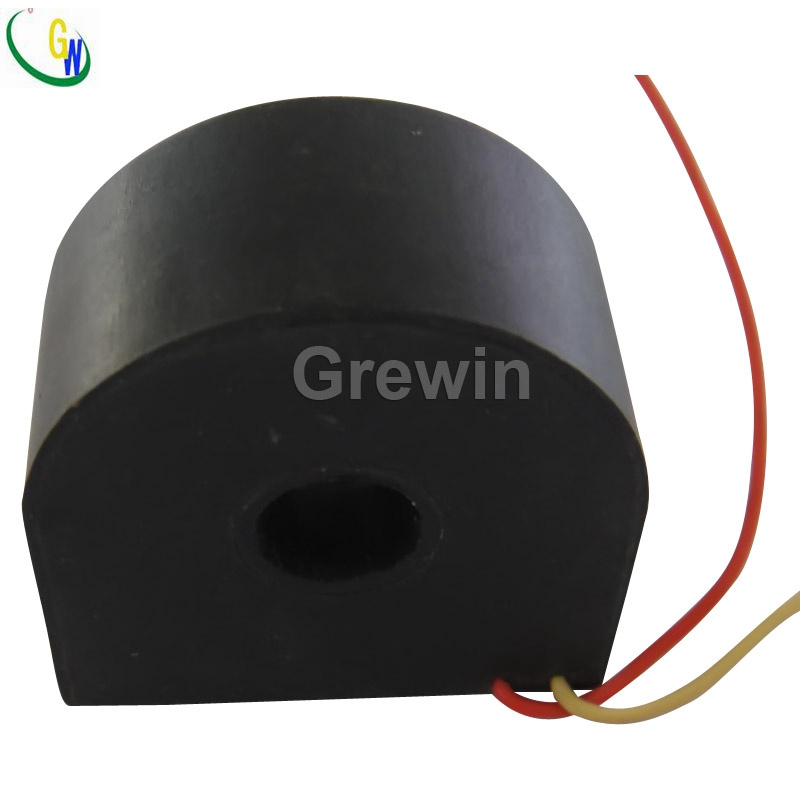

 GREWIN MINI PRECISION CURRENT RANSFORMER

  Specialties:
1,The printing circuitiy board is direct-jionting fixed,design is reasonable.;
2,Small bulk,high precision;whole occlude,The machinery and bears the environment performance to be good,strong ability in closing off the pressure and on the safe side..
Using  terms:
1,Environment temperature:-40°C~+85°C;
2,Relative humidity:when temperature is 40°C ≤90%.
Working frequency bound:20Hz~20KHz.

Features
      Center hole-through, easy installation,on
          the safe side.
      Metal casing,better capacity of resisting
         outside surroundings.
      High-sensitivity/accuracy,good linearity.
      Two series for selection: passive and active
 Applications
      Used in high voltage electric power equipment
         insulation monitoring plant, which is stalled in
         transformers station.Provide exact measure-
         ment for mA leakage current of high voltage
         power equipment, such as transformers
         sleeve, current transformers
 Specifications
      Frequency:50Hz
      Rated current:10mA,20mA,30mA
      Measuring range:0.5~700mA
      Output signal:mV/mA
      Amplitude error:±0.1%
      Phase error:±1'
      Environmental temperature:-30ºC~+75ºC
         Influence on phase error by temperature
         change is<1'
      Diameter of primary center hole:Φ13mm,
         25mm, 40mm, 50mm
