| Prod Model: |
RUBNS-OLC |
| Product: |
Silicone Rubber Overhead Line Cover |
| Heat Shrink Ratio: |
No Shrink, Split Line Hose/ Overhead Line Cover |
| Standard Color: |
White/ Black/ Red/ Green |
| Operating Temperature: |
-40 Degree to 200 Degree |
| Sample: |
Free for Existing Sample |
| Dielectric Constant: |
GB/T 1409-2006 |
| Electrical Strength Test: |
GB/T 1408.1-2006 |
| MOQ: |
100meter |
| Lead Time: |
10days |
| Application: |
Insulating Varnish |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
>100KV |
| Color: |
Yellow, Red, Grey, Green, Grey, White |
| Brand: |
Volsun |
Product Description

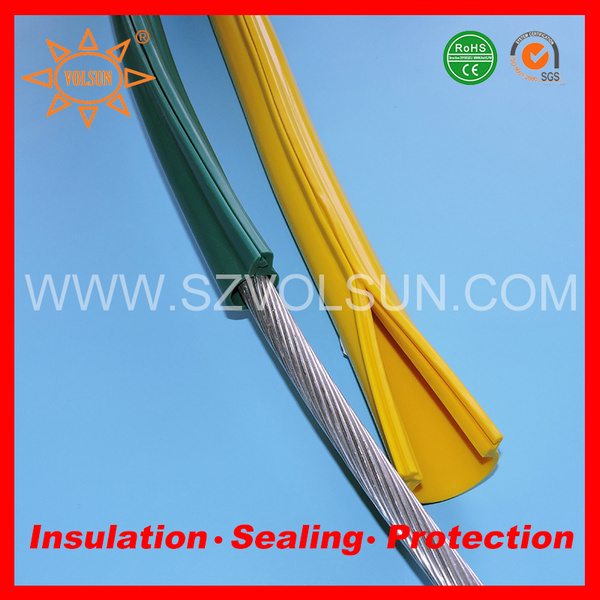

ACSR Conductor Insulation Silicone Rubber Overhead Line Cover
Description
RUBNS-OLC The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.
Technical Performance
| Serial No. | Properties | Unit | Standard Data | Test Results | Test Methods |
| 1 | Electrical Strength Test | kV/mm | ≥20 | 22 | GB/T 1408.1-2006 |
| 2 | Volume Resistivity | Ω·cm | ≥1×1014 | 2×1014 | GB/T 1410-2006 |
| 3 | Dielectric Constant | | 2~3 | 2.3 | GB/T 1409-2006 |
| 4 | Shore Hardness | A | 70±5 | 71 | GB/T 531 |
| 5 | Mechanical Properties | | | | GB/T 528 |
| 5.1 | Before heat ageing | | | |
| | Tensile Strength | MPa | ≥4.0 | 5.5 |
| | Elongation at break | % | ≥200 | 243 |
| 5.2 | After Heat ageing(180ºC, 7d) | % | ±30 | 13 |
| | Tensile Strength Change
Elongation Change | % | ±30 | -22 |
| 6 | Low Temperature Elongation(-15ºC, 2h) | % | ≥20 | 190 | GB/T 2951.4-1997 |
| 7 | Low Temperature Flexibility(-50ºC, 4h) | - | No cracks | No cracks | UL224-2004 |
| 8 | High Temperature Crack Resistance(155ºC, 2h) | - | No cracks | No cracks | GB/T2951.6-1997 |
Product Dimensions
Voltage Ratings/Wall Thickness
| Voltage(KV) | ≤10KV | ≤35KV | ≤110KV | ≤220KV |
| Thickness | 2.0±0.3mm | 2.6±0.4mm | 4.0±0.5mm | 6.0±1.0mm |
Application Cases
Installation Instructions
1. Clean the inside of the RUBNS-OLC with cleaning cloth and alcohol fluids until the inside is
clean without dust;
2. Connect the pointed plastic mouth to the body of RTV silicone rubber adhesive bottle. See illustration 1 above.
3. Smear RTV silicone rubber adhesive all over the concave channel of the RUBNS-OLC
uniformly as showed in illustration
4. Uniformly smear the two flat fringes of the concave channel with RTV silicone
rubber adhesive as the illustration
5,Connect the bulging part of the RUBNS-OLC on one side into the concave channel of the
other side and squeeze the connecting part from one end to the other as illustration 4 indicates
