Addressable Fire Alarm System Gas Detector
| Price: |
US $ 18/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
AW-AGD2188 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire: |
2 Wire |
| Temperature: |
0-55 |
| Working Humidity: |
95%Rh, Non-Condensation |
| Working Current: |
DC24V |
| Color: |
White |
| Nature: |
Addressable |
| Weight: |
0.2kg |
| Design: |
OEM ODM |
| Install: |
Wall Amounted |
| Match: |
Addressable Fire Alarm Panel |
Product Description

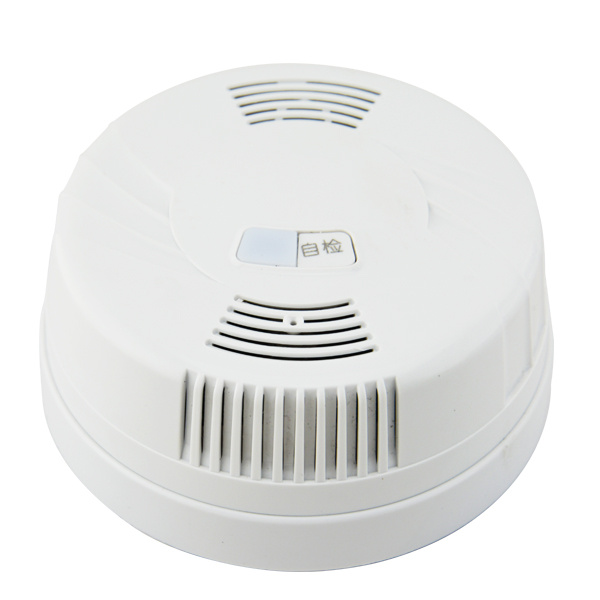

Addressable Fire Alarm System Gas Detector
Item | Index Parameter |
| Environment Temperature | 0ºC~+55ºC |
| Working Humidity | ≤95%RH, Non-condensation |
| Operating Voltage | DC24V, Operating Voltage Range: 12~28V |
| Working Current | ≤ 35mA @DC24V (Standby), ≤ 40mA @DC24V Alarm) |
| Linkage | Non-polarity analog 2 wire bus, current < 400uA |
| Value of Detection Concentration | Natural gas 10%LEL(±30%) |
| Response time | ≤30S, Self-recovery |
| service life | >5 Year (In clean air) |
| Electricity (or reset) | The electric (or reset) indicator on the detector quickly double flash, after light according to the order of the green, red, yellow flashing light, accompanied by a buzzer hint sound. |
| Indicator light | Preheat condition, the green light shining fast (about 2 times per second);
Normal monitoring status, the green light is about once every 12 seconds flicker when there is no bus signal access (about once per minute flashing);
Alarm, the red indicator light flash (about 2 times per second);
The sensor failure, the yellow indicator light about once every 3 seconds flicker. |
| Buzzer | When alarm, buzzer about chirping 2 per second;To failure, buzzer about sing once every 3 seconds. |
| Self-inspection Button | Press the self-check button, indicator light cycle shiny (order of green, red, yellow), accompanied by a buzzer sound prompt. |
| Unit Dimensions | φ104mm×48 mm |
| Shell material | ABS(Antiflaming V0) |
AW-AGD2188 type measurement range of 0-100% LEL of point combustible gas detectors (hereinafter referred to as detector) screen printing a thick film with high quality metal oxide semiconductor sensor for detecting combustible gas leaks, apply security monitoring in homes, factories, hotels, apartments and other presence of flammable gases, can access the ASENWARE addressable fire alarm control system to achieve network connectivity.
Packaging & Shipping
Packaging Details:
1) PEE bag per unit
2) Outside Cartons
3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
Our Services
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
FAQ
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
Company Information
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system
Our fire safety products, solutions and services are used in over 100 countries.
With over 200 employees work in United Kingdom-Marketing Center, China-R&D and Supply Chain Center and Bangladesh-Manufacture Center, ASENWARE is committed to design and manufacture the best fire safety products to reduce the risk of fire, and support the world to be more safe and more comfortable.
What do we offer the world?
We focus on the high quality products and services supply only.
1. We always remember that quality is the cornerstone of our existence, and we will never reduce the quality for any reason.
2. Our products must comply with international standards, and must be stable and reliable in long term using.
3. We will continuously improve our products to be more excellent. In any time, we should not accept the poor quality results, or keep a poor quality work just because of the old experience. We should always think what is the best and how can do the best.
4. We must keep our promises for our customers, we must provide products,
Services and solutions to our customers with more than their expected.
We create value for our customers.
1. We keep invest to design and update our products, every year we have new products and new solutions for fire safety market.
2. We focus on international standard and certificate fire safety products, until now we already got LPCB, TUV, INTERTEK certificates for our different products.
3. Our products and services support wholesalers, project contractors and building owners. We set up a cloud website that can monitor all the running fire panels, every agent, contractor, owner, maintenance engineer can check the fire system real status and get emergency alarm by mobile phone or email.
4. We support project design with a high quality NFPA standard engineer team. We also support our customers at different country project sites.
Product range:
1. Addressable fire alarm system(FP100 series, 2189, 2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
