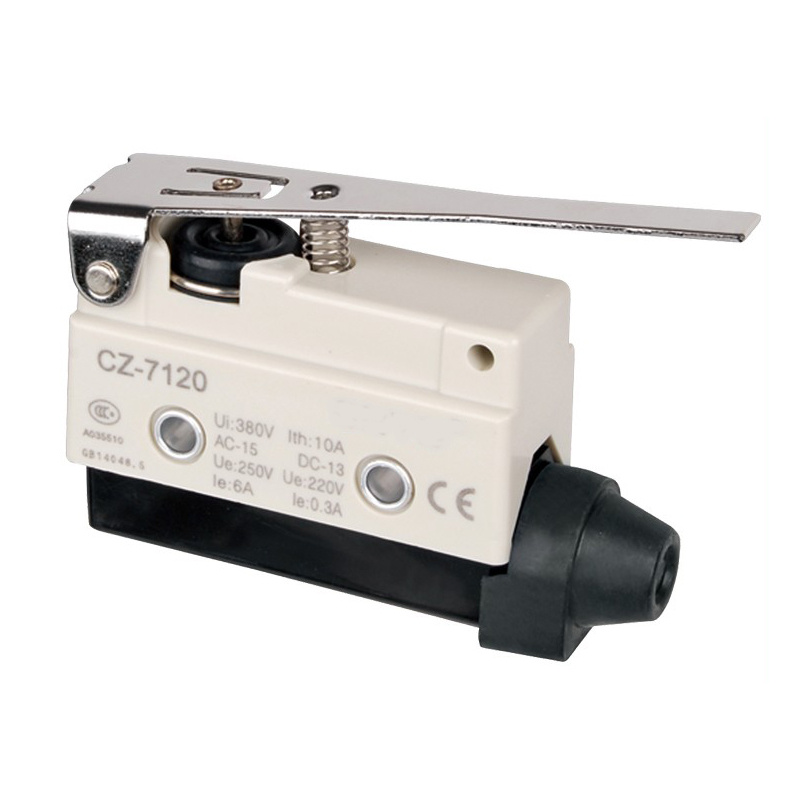

Adjustable Micro Switch CZ-7120

Name: Adjustable Micro Switch CZ-7120
Brand: all-electronics-online.com
SKU: 834825835
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Virous of actuators,the operation position is adjustable(such as CZ-7121)
Outer shell covered with intensive plastic,water-proof and oil-proof.
The mechanical strength is better than CM type of micro switch,bear hitting

Models	CZ-7100	CZ-7110	CZ-7310	CZ-7311	CZ-7312	CZ-7120
OF(Max.)	600g	600g	600g	600g	600g	150g
RF(Min.)	100g	100g	100g	100g	100g	40g
PT(Max.)	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm	13.5mm
OT(Min.)	0.8mm	5.0mm	6.0mm	6.0mm	6.0mm	4.0mm
MD(Max.)	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	3.2mm
OP	30.5±0.8mm	44±1.2mm	21.8±1.2mm	33.3±1.2mm	33.3±1.2mm	25±1mm
PF						35mm

Models	CZ-7140	CZ-7121	CZ-7141	CZ-7124	CZ-7144	CZ-7166
OF(Max.)	220g	180g	240g	200g	280g	120g
RF(Min.)	60g	50g	80g	60g	100g
PT(Max.)	8.5mm	11.0mm	6.5mm	11mm	6.5mm	250mm
OT(Min.)	2.5mm	3.0mm	2.0mm	3.0mm	2.0mm	11mm
MD(Max.)	2.0mm	2.4mm	1.5mm	2.4mm	1.5mm
OP	25±1mm	40±1mm	40±1mm	50±1.2mm	50±1.2mm
PF	32mm		46mm		56mm

Prod Model:	CZ-7120
High Switch Current:	10A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Breaking Capacity:	High-Current
Breaking Form:	Multi Joint Type
Environment:	Micro Switch
Brand:	Deson
