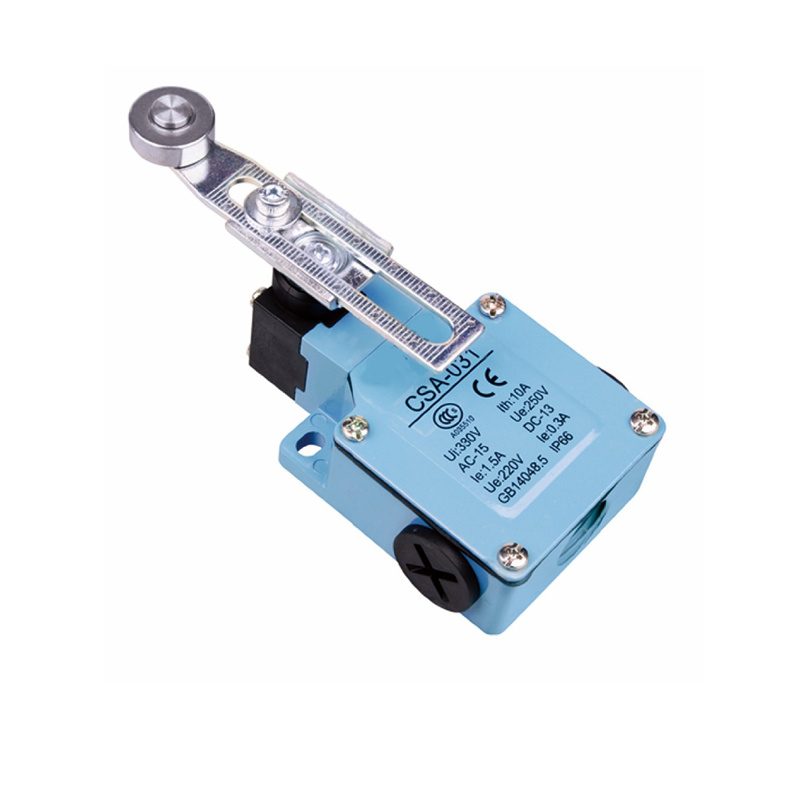

Adjustable Roller Arm Limit Switch CSA-031

Name: Adjustable Roller Arm Limit Switch CSA-031
Brand: all-electronics-online.com
SKU: 834628085
Availability: InStock
Rating: 4.5 (49 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CSA-031
Max Current:	10A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000

Product Description

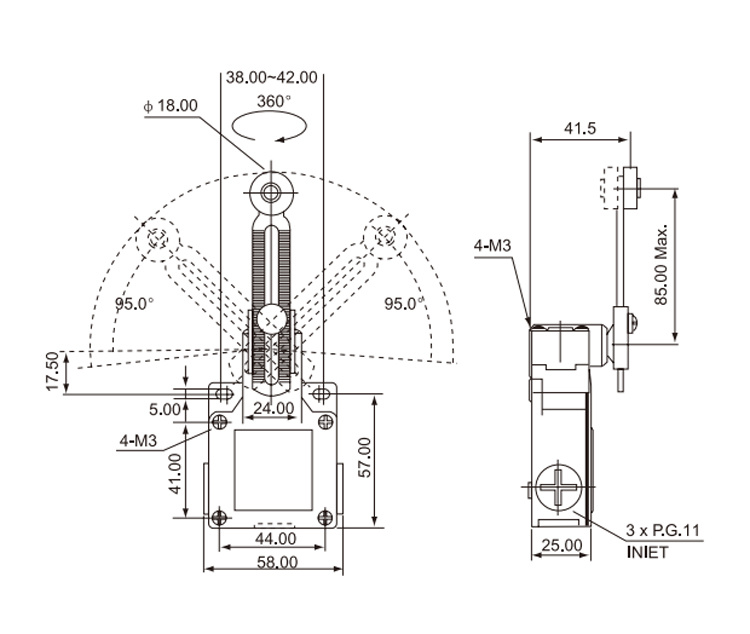

Strong metal outer shell,swing arm max,±95°
Stainless steel idler wheel,punch and spring
Selective M18×1.5 cable gland

Model		CSA-001	CSA-003	CSA-012	CSA-021	CSA-041
Operating force	OF(Max.)	800g	800g	800g	400g-cm	400g-cm
Release force	RF(Min)	400g	400g	400g	100g-cm	100g-cm
Pre-travel	PT(Max)	1.8mm	1.8mm	1.8mm	20°	20°
Tripping position	TP±10%	2.0mm	2.0mm	2.0mm	22.5°	22.5°
Movement differential	MD(Max.)	1.2mm	1.2mm	1.2mm	10°	10°
Over travel	OT(Min.)	4.0mm	4.0mm	4.0mm	75°	75°
Total travel	TT	5.8mm	5.8mm	5.8mm	95°	95°
Rotary indexing					22.5°	22.5°
Model		CSA-031	CSA-051	CSA-061	CSA-071	CSA-081
Operating force	OF(Max.)	400g-cm	400g-cm	150g	150g	150g
Release force	RF(Min)	100g-cm	100g-cm	50g	50g	50g
Pre-travel	PT(Max)	20°	20°	30mm	30mm	30mm
Tripping position	TP±10%	22.5°	22.5°	22.5°	22.5°	22.5°
Movement differential	MD(Max.)	10°	10°	14°	14°	14°
Over travel	OT(Min.)	75°	75°	20mm	20mm	20mm
Total travel	TT	95°	95°	50mm	50mm	50mm
Rotary indexing		22.5°	22.5°

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
