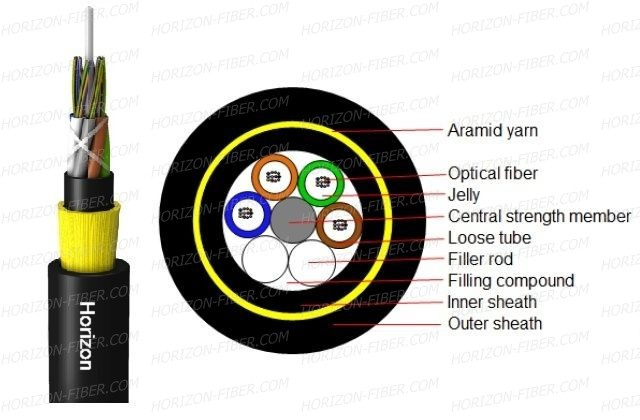

ADSS All Dielectric Self-Supporting Aerial Fiber Optic Cable

Name: ADSS All Dielectric Self-Supporting Aerial Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 668746931
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 0.3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Name: All Dielectric Self-supporting Aerial Fiber Optic Cable
Model: ADSS

Application:
Erect on the same pole with power line in new and old power line.
A long span
Areas of strong electric field, multi-thunder, etc

Features:
Small cable Dia, light weight, 1, 000m span, low attached load on tower.
Tension strength is over 90KN.
Non-metal structure, good insulation, anti-thunder.
Fine production technology, even force for aramid fiber, with superior stress flexibility.
Anti electro-corrosion.
Adapt for bad climate.
May construct without power cut, a power line failure doesn't influence cable's normal transfer.
Loose cover GYTA cable core, non-metallic core reinforced.
Tension units are elastic modulus aramid fiber.
Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) <=25KV/m.

ADSS with PE Sheath (Parts)
Structure drawing	Order Type Model	ADSS-PE 24 M15.5/ A	ADSS-PE48 M17.7 / C	ADSS-PE72 M21.2 / D
	Fiber count	24fiber	48fiber	72fiber
	Size of tube	φ2.1mm	φ2.6mm	φ3.0mm
	Cable diameter	φ13.4mm	φ14.9mm	φ16.4mm
	Cable weight	139kg/km	172kg/km	209kg/km
	RTS	38.8kN	44.3kN	56.6kN
	Linear expansion coefficient	2.2×10-6/â„ƒ	2.0×10-6/â„ƒ	1.8×10-6/â„ƒ
	Young's modulus	16.5kN/mm2	17.5kN/mm2	18.6kN/mm2

ADSS with AT Sheath (parts)
Structure drawing	Order Type Model	ADSS-AT 24 M14 / A	ADSS-AT48M15.2 / C	ADSS-AT72 M21.2 / D
	Fiber count	24fiber	48fiber	72fiber
	Size of tube	φ2.1mm	φ2.6mm	φ3.0mm
	Cable diameter	φ13.2mm	φ14.3mm	φ16.3mm
	Cable weight	146kg/km	169kg/km	220kg/km
	RTS	35kN	37.9kN	52.9kN
	Linear expansion coefficient	4.5×10-6/â„ƒ	4.8×10-6/â„ƒ	3.6×10-6/â„ƒ
	Young's modulus	15.5kN/mm2	14.9kN/mm2	17.9kN/mm2

Prod Model:	ADSS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Aerial
Type:	G.652D/G.655/Om1/Om2/Om3
Connection Structure:	ADSS
Certification:	ISO9001:2008,Ce,SGS,RoHS
Brand:	Horizon/OEM
Sheath Material:	PE/LSZH

Horizon Technology is located in Wuhan Eastlake Hi-Tech Zone, which is reputed as the "Optics Valley of China". We focus on providing fiber optic connectivity products and solutions to the customers worldwide.

With Horizon, you can get the right solution for fiber optic infrastructure. Our products range mainly include: Optic fiber cable, optic distribution frame/ cabinet/ units, optic fiber terminal box/splice closure, optic fiber patch cords/pigtails, optic fiber connectors/adapters, optic fiber patch panel, PLC splitter, optic fiber accessories, optic fiber tester.

Horizon obtained customers all over the world, Include Asia, Africa, Middle East and South America. We believe we will continue to accomplish them all as long as we stay true to our own standards of excellence. Working together with integrity, honesty and commitment, we will make excellence possible.
