Product Description

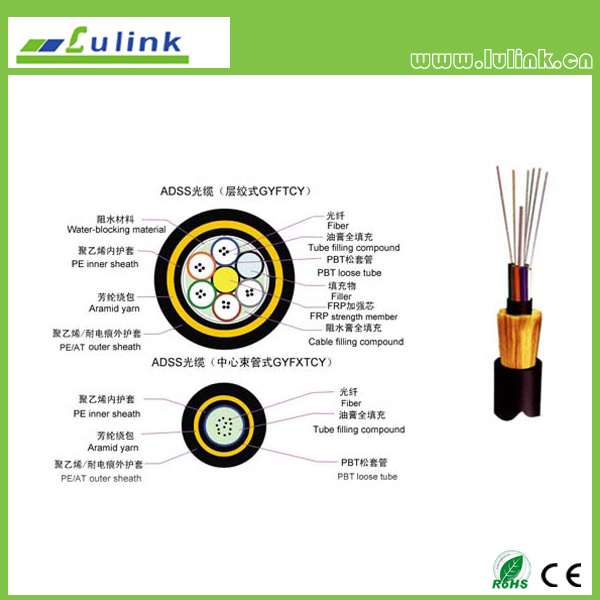

ADSS Outdoor 24 core fiber optic cableADSS Outdoor fiber optic cable
Special tube filling GYTC8A figure
PE sheath protects cable
Application1. Laying method: Aerial
2. Mainly applied in electric power system to provide a convenient way to establish communication networks. It is suitable for aerial installation when a communication line has to span a river, a valley, a thunder area and other fields with special requirements.
Characteristics:
Large span lengths and the largest span is over 1700m.
Non-metallic material, with high insulating property performances as well as lightningproof
Special Anti-Track outer sheath (optional) protection, strong anti-electro-corrosion ability.
The aramid yarn ensures the cable's tensile resistance, and also have good bulletproof performances.
Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the towers and backprops.
Can be installed without shutting off the power.
Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
Attenuation | dB/km | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion |
1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |
Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth |
1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |
Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 |
Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 |
PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ |
PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ |
Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ |
Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- |
Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- |
1550nm | um | 10.4±0.8 | ------ | ------- | ------- |
Numerical Aperture(NA) | | ----- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 |
Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
Irregularities over fibre length and point discontinuity | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
Difference backscatter coefficient | dB/km | ≤0.03 | ≤0. 08 | ≤0. 10 | ≤0. 08 |
Attenuation uniformity | dB/km | ≤0.01 | ----- | ------ | ----- |
Core diameter | um | ----- | 50±1.0 | 62.5±2.5 | 50±1.0 |
Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 |
Coating/cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
Coating non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
Curl(radius) | um | ≤4 | ----- | ----- | ----- |

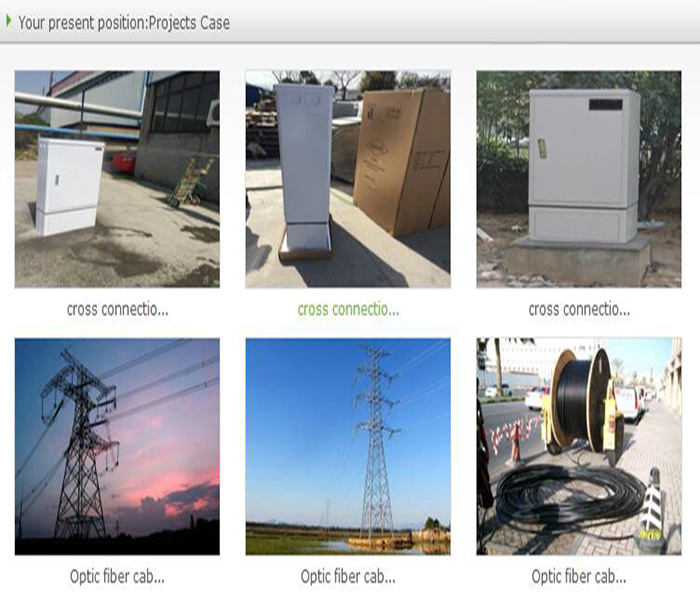

Related productsProject caseCompany information Lulink Electronics Technology Co. Ltd
