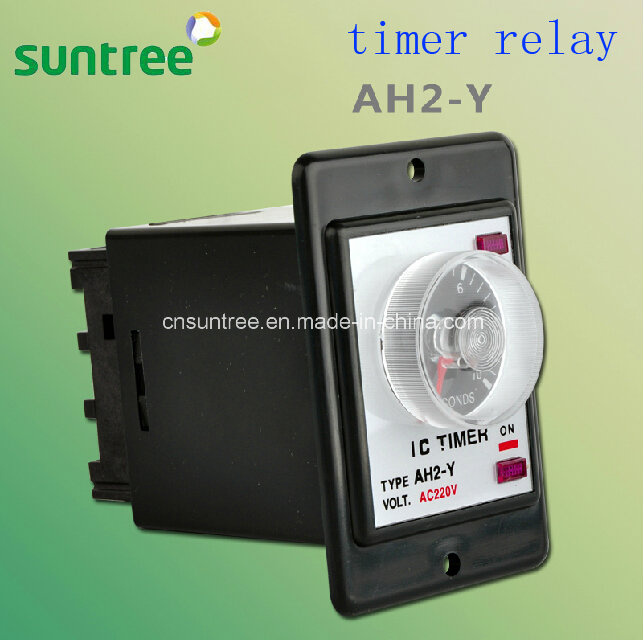

AH2-Y time relay time delay relay 12 volt relay 12v 12 volt dc timer switch
Dimensions(mm)88Hx58Wx68D
Socket type:PF083A
DC12V-48V AC12V-380V 50HZ
Different timing range on requiremt
Flush type mounting Time Delay Relay AH2-Y
Specification Model | AH2-N | AH2-Y |
Dimension | 61H × 49W × 70D | 88H × 58W × 68D |
Mounting & Socket | Surface(-N) | PF083A PS-08 | PF083A |
Flush(-Y) | P2CF-08 | US-08 P3G-08 |
Full Timing Range | SEC: 1,3,6,12,30,60 |
MIN: 3,6,12,30,60 |
HR: 3,6,12,24 |
Rated Voltage (V) | AC: 12,24,110,220,240 50/60Hz DC: 12,24 |
Indicator Operating | ON-UP Two Indicator Lamp |
O/P Contact | Model | AH2-N1/ AH2-Y1 | AH2-N2/ AH2-Y2 | AH2-N/ AH2-Y |
Time Limit 1C | 5A | | 5A |
Time Limit 2C | | 5A | |
Instantaneous 1C | | | 5A |
Life | Mechanical | 5 × 106 Times |
Electrical | 105 Times |
Accuracy | Repeat Error | ±1% max |
Setting Error | ±10% max |
Voltage Error | ±1% max |
Temp Error | ±2% max |
Reset Time | 0.1 sec max |
Consumed Power | 3VA |
Ambient temperature | -10oC~+55oC |
Ambient Huminity | 48~85% RH |
Weight | 220g |
Classification | Digital Timer | Digital Timer | Timer | Specification Model | ASY-2D | ASY-3D | H3Y-(ST6P) | Dimension | 88H × 58W × 68D | 88H × 58W × 68D | 28H × 21W × 52.6D | Mounting & Socket | Surface(-N) | PF083A | PF083A | PYF08A(E) | PYF14A(E) | Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | With Y-20 adapter | Full Timing Range | SEC: 9.9,99 MIN: 9.9,99 HR: 9.9,99 | SEC: 9.99,99.9,999 MIN: 99.9,999 HR: 99.9,999 | SEC: 1,3,5,10,30,60,120 MIN: 3,5,10,30,60 HR: 3 | Rated Voltage (V) | AC: 12,24,110,220,240 50/60Hz DC: 12,24 | AC: 12,24,110,220,240 50/60Hz DC: 12,24 | AC: 12,24,110,220,240 50/60Hz DC: 12,24 | Indicator Operating | After contact transfer | After contact transfer | Power, up Operating | O/P Contact | Model | ASY-2D | ASY-3D | | Time Limit 1C | | | | Time Limit 2C | 5A | 5A | | Instantaneous 1C | | | | Life | Mechanical | 5 × 106 Times | 5 × 106 Times | 5 × 106 Times | Electrical | 105 Times | 105 Times | 105 Times | Accuracy | Repeat Error | ±0.05% max | ±0.05% max | ±3% max | Setting Error | 0 | 0 | - | Voltage Error | ±0.05 Sec | ±0.05 Sec | ±2% max | Temp Error | ±0.05 Sec | ±0.05 Sec | ±5% max | Reset Time | 0.3 sec max | 0.3 sec max | 0.2 sec max | Consumed Power | 5VA | 5VA | 3VA | Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | Ambient Huminity | 48~85% RH | 48~85% RH | 48~85% RH | Weight | 230g | 230g | 45g |
|
1. AH3-3 time relay Application
AH3-3 series time relay is used ASIC and professional manufacturing technology to produce innovative time relay, with small size, light weight, delay a wide range of anti-interference ability, long life characteristics to be suitable for a variety of demanding precision, high reliability, automation and control sites used for delay control . |
2. AH3-3 time relay Specifications and parameters
Classification | Multi Range Timer | Multi Range Timer | Multi Range Timer |
Specification Model | AH3-3 | AH3-B | AH3-NB |
Dimension | 50H × 40W × 57.5D | 50H × 40W × 57.5D | 50H × 40W × 57.5D |
Mounting & Socket | Surface(-N) | PF083A (E) | PF083A (E) | PF083A (E) |
Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | US-08 P3G-08 |
Full Timing Range | SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30 | A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H | A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H |
Rated Voltage (V) | AC: 24,110,220,240,380,50/60Hz DC: 12,24 | AC: 24,110,220,240,380,50/60Hz DC: 12,24 | AC: 24,110,220,240,380,50/60Hz DC: 12,24 |
Indicator Operating | ON-UP operating | ON-UP operating | Time operating flicker |
O/P Contact | Model | AH3-1 | AH3-2 | AH3-3 | AH3-1 | AH3-2 | AH3-3 | Model A/B |
Time Limit 1C | 5A | | 5A | | | 5A | | 5A |
Time Limit 2C | | 5A | | 5A | | | 5A | |
Instantaneous 1C | | | 5A | | 5A | 5A | | 5A |
Life | Mechanical | 5×106 Times | 5×106 Times | 5×106 Times |
Electrical | 105 Times | 105 Times | 105 Times |
Accuracy | Repeat Error | ±1% max | ±1% max | ±1% max |
Setting Error | ±10% max | ±10% max | ±10% max |
Voltage Error | ±1% max | ±1% max | ±1% max |
Temp Error | ±2% max | ±2% max | ±2% max |
Reset Time | 0.1 sec max | 0.1 sec max | 0.1 sec max |
Consumed Power | 3VAC | 3VAC | 3VAC |
Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC |
Ambient Huminity | 48~85% RH | 48~85% RH | 48~85% RH |
Weight | 160g | 160g | 160g |
3. AH3-3 time relay Normal operating conditions and installation conditions:
3.1 The use of the environment: the sea disturbance height of not more than 2000 meters, ambient temperature is not higher than +40 and no less than -5 ; supply voltage range of 85% -110% rated voltage; in the absence of a serious shock and explosion hazard medium, and medium, non-corrosive metal and undermine the insulation is sufficient gas and dust; in less rain and snow hit areas. 3.2 vertical or horizontal installation. Technical features 1, supply voltage: AC (50Hz) 24V, 36V, 110V, 127V, 220V, 380V; DC: 24V (other voltages can be customized); 2, electrical life: ≥ 10 × 104 times; 3, Mechanical life: ≥ 100 × 104 times; 4, contact capacity: AC220V 3A; DC220V 0.5A COSφ = 1; 5, use the Class: AC-15 DC-13; 6, repeated the error: "1%; 7, reset time: ≤ 1 sec; 8, power consumption: ≤ 1.5W (DH11S ≤ 3W). |
DH48S Digital display time relay is used in the scale of the advanced application specific integrated circuit, LED digital tube display, beautiful appearance, easy installation, digital key switch preset, stable and reliable, high precision, delay range, low power consumption advantages, is widely used in automatic control circuits for delay device.
1. Timing Range:
H:1min-99h99min
M:1s-99min99s
S:0.01s-99.99s
Normal operating conditions and installation conditions
1.1 The use of the environment: the sea disturbance height of not more than 2000 meters, ambient temperature is not higher than +40 and no less than -5 ; supply voltage range of 85% -110% rated voltage; in the absence of a serious shock and explosion hazard medium, and medium, non-corrosive metal and undermine the insulation is sufficient gas and dust; in less rain and snow hit areas.
1.2 Vertical or horizontal installation.
2.1 Technical Features:
1, supply voltage: AC (50Hz) 24V, 36V, 110V, 127V, 220V, 380V; DC: 24V (other voltages can be customized);
2, electrical life: ≥ 10 × 104 times;
3, Mechanical life: ≥ 100 × 104 times;
4, contact capacity: AC220V 3A; DC220V 0.5A COSφ = 1;
5, use the Class: AC-15 DC-13;
6, repeated the error: "1%;
7, reset time: ≤ 1 sec;
8, power consumption: ≤ 1.5W (DH11S ≤ 3W).
Products Specification:
Part number | DH48S-A | DH48S-AE | DH48S-2Z | DH48S-1Z | DH48S-E | DH48S-S/2Z | DH48S-S/1Z |
Indicators | 8 mm LED numeric display |
Supply voltage | AC24V,110V,220V,380V 50/60Hz DC12V,24V |
Operating voltage | 85 to 110% of rated supply voltage(90% to 110% at 12 VDC) |
Power consumption | ≤5W |
Control output | Time limit | SPDT(2C) | SPDT(2C) | SPDT(2C) | SPDT(1C) | SPDT(1C) | SPDT(2C) | SPDT(1C) |
Instantaneous | | SPDT(1C) | | | SPDT(1C) | | |
Output Max.Load | 5A,250VAC(p.f=1) |
Output Min.Load | 10 mA,5 VDC |
Input method | Reset input | no-voltage unput Impedance at short-circuit:max.1kΩ Impedance at open:min.100kΩ residual voltage at short-circuit:max.0.5V |
Gate input |
Repeat accuracy | ±0.3%,±0.05sec(includes variation due to voltage and temperature changes) |
Setting error | ±0.5%,±0.05sec |
Resetting system | Power-OFF |
Resetting time | 0.1 sec max. |
Connections | 11-pin round socket | 8-pin round socket |
Mounting | track,surface |
Operating ambient temperature | -10 to 55 |
Ambient humidity Operating | 35 to 85%RH |
Insulation resistance | Insulation resistance 100MΩ min.at500VDC |
Dielectric strength | 2000V 50/60Hz min between current-carring and non-current-carring parts and between contact and control circuit |
1500V 50/60Hz min between control output terminals and operating circuit |
1000V 50/60Hz min Between contacts |
Static immunity | Malfunction:8 KV Destruction:15KV |
Impulse withstand voltage | 3 kV (between power terminals)1 kV for 24 DC 4.5KV(between current-carrying terminal and exposed non-current-carrying metal parts);1.5 kV for 24VDC |
Vibration | Mechanical durability | 10 to 55 Hz with 0.75-mm double amplitude each in 3 directions |
Malfunction durability | 10 to 55 Hz with 0.5-mm double amplitude each in 3 directions |
Shock | Mechanical durability | 30G |
Malfunction durability | 10G |
Service life | Mechanical | 10 million operations minimum(under no load, at 1,800 operations/hour) |
Electrical | 100,000 operations minmum at maximum ratings |
Degree of protection | TECIP30(panel surface) |
Weight | Approx:150g |
Rated products
General relay MK MY,LY
Thermal relay 3UA LR9 JRS1,JR28
Power relay JQX-38F JQX-40F 1Z JQX-52F JQX-58F JQX-59F JQX-60F JQX-62F 1Z 80A JQX-62F 1Z 120A JQX-62F 2Z 80A
Time relay AH3-N_ ST2P ST3P H3BA(ST4P) H3CR-A8 H3CA-A H3CA-8 ASTP-N/Y AH2-N/Y ATDV-N/Y ASY-2D ASY-3D AH3Y (ST6P)
Electromagnetic relay 58.02 56.02 55.02 55.04 57.02 57.04 60.12 60.13 70.2
Relay socket PYF-08A PYF-08A-E PYF11A PYF14A PF113A-E PF085A PS-08 P2CF-08 PY-08 PY-14 PT-08 PT-14 PTF08A PTF08A-E PTF11A PTF14A PTF14A-E PTF083A PF083A-F PF113A 90.22 90.23 PPF-011 PY-08-0
