| Prod Model: |
RDW5 |
| Rated Voltage: |
400V/690V |
| Standard: |
IEC60947-2 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
ACB |
| Certification: |
CCC |
| Operation: |
Manual & Motor |
| Installation: |
Fixed, Drawer Type |
| Poles Number: |
3poles,4poles |
Product Description
Introduction

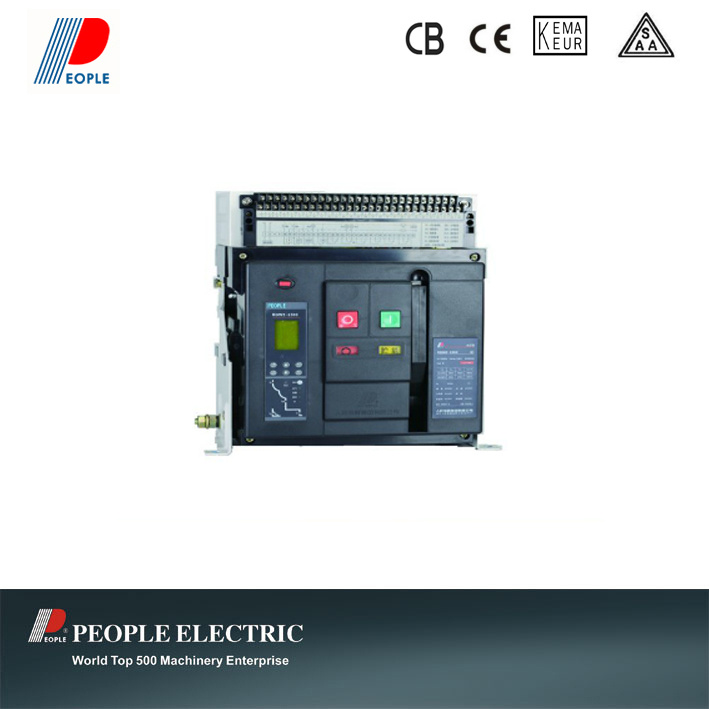

RDW5 series intelligent type Air circuit breaker is applied to power distribution network of AC 50/60Hz, rated operating voltage up to 400V/690V, rated current up to 6300A.
It's mainly used to distribute power and protect circuit and power-supply equipment against damage of faults, such as overload, under-voltage, short-circuit, single-phase grounding, and it has insulation function. Besides, the circuit breaker has various intelligent protect function, can realize bidirectional communication between several breaker and central control computer by its network system, realize remote control function to satisfied the requirements of automatic system control. The circuit breaker conforms the standard of IEC60947-2.
| Main technique parameter |
| Model No. | RDW5-1600 | RDW5-2500 | RDW5-4000 | RDW5-6300 |
| Rated current(A) | 200,400,630,800,
1000,1250,1600 | 1000,1250,1600,
2000,2500 | 2000,2500,2900,
3200,3600,4000 | 4000,5000,6300 |
| Neutral rated current In(A) | 100%ln | 100%ln | 100%ln | 50%ln |
| Rated operating voltage (V) | | AC 400/690 | |
| Frequency (Hz) | 50/60Hz |
| Number of poles | 3P/4P |
Rated impulse withstand voltage
Uimp (Kv) | AC 12 |
| Rated isolation voltage Ui (V) | AC 1000 |
Power frequency withstand
voltage(V) 1min | 3500(Main circuit) |
Rated ultimate
short circuit breaking
capacity(Icu) KA | AC400V | 42 | 80 | 100 | 80 |
| AC690V | - | 50 | 65 | - |
Rated operating
short circuit breaking
capacity(Ics) KA | AC400V | 32 | 65 | 80 | 65 |
| AC690V | - | 50 | 65 | - |
Rated withstand
current for short-
time(Icw)1s(KA) | AC400V | 20/30(0.5s) | 65 | 80 | 65 |
| AC690V | - | 40 | 50 | - |
Rated short circuit
connection ability
(Icm) KA | Electrical
life | 7000 | 6500 | 3000 | 3000 |
Mechanical
life | 15000 | 15000 | 10000 | 10000 |
| Using type | B type |
Breaking time(without any
auxiliary delay | 25-30ms |
| Closing time | ≤70m |
