| Prod Model: |
PS-A10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contacts: |
Normally Open |
| Explosion-Proof Type: |
Intrinsically Safe |
| Application: |
Industrial |
| Min On: |
25 Psi |
| Max Off: |
100 Psi |
| Electrical Rating: |
120VAC/240VAC |
| Port: |
One Port /Four Ports |
| Type: |
Electronic |
Product Description

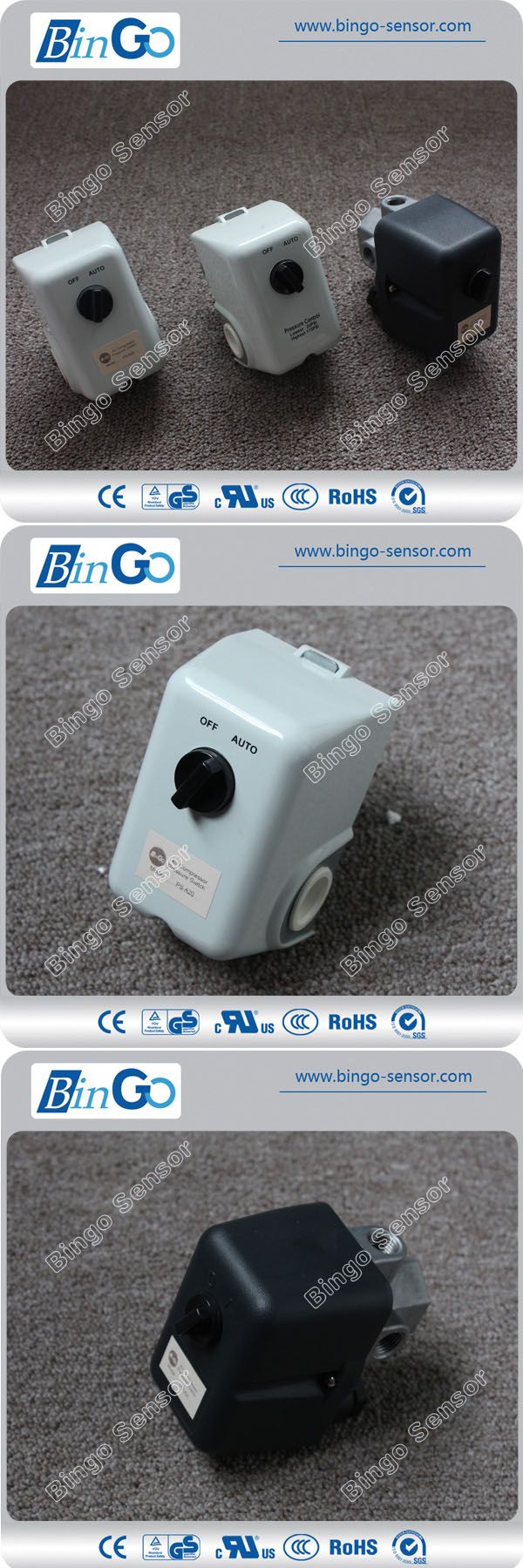

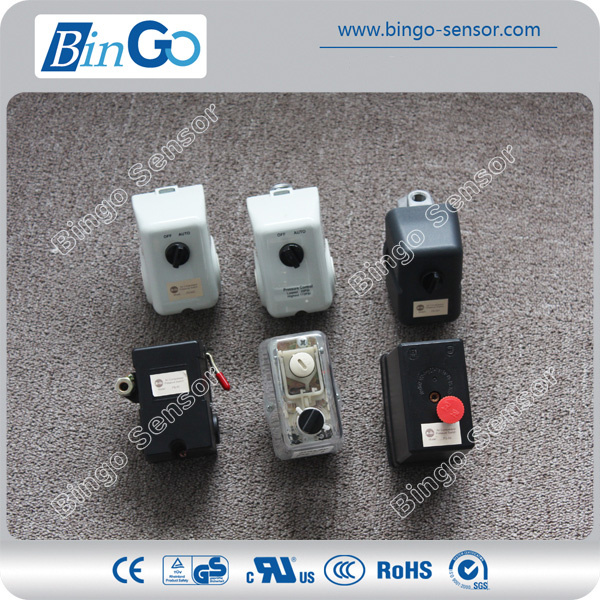

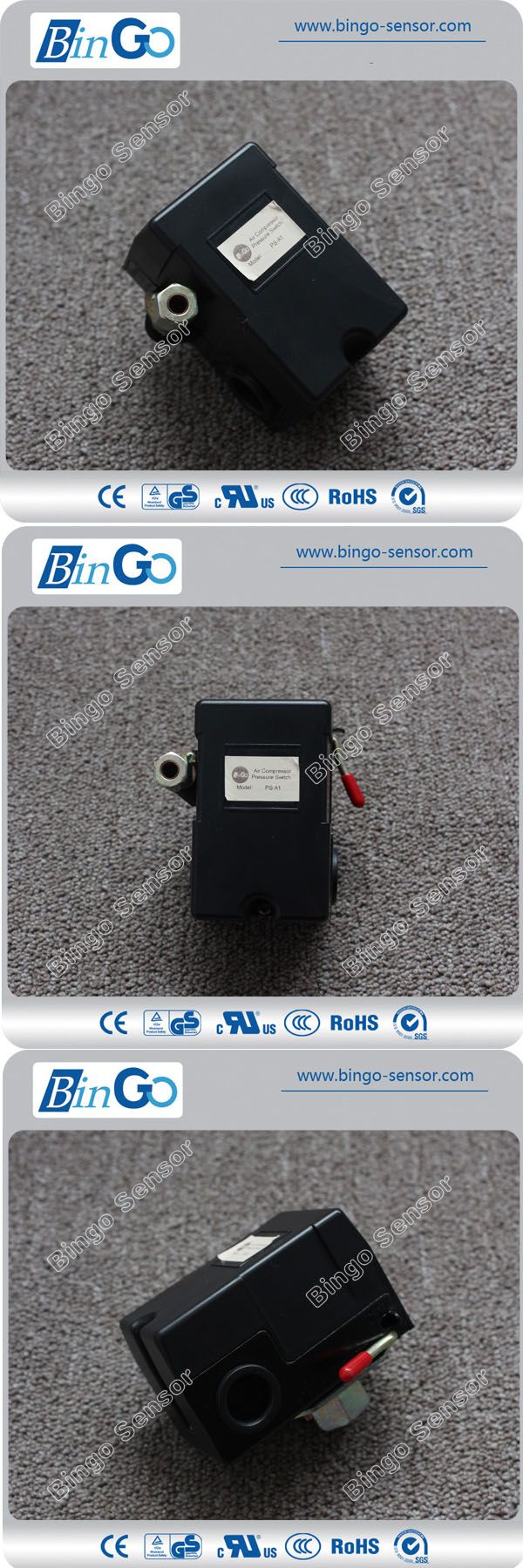

Air Compressor Pressure Switch
1. Introduction:
Air Compressor Pressure Switch is used to regulate the tank pressure between two preset values(up to 175 psi) electrically driven air compressors. It is available with an unloading valve, which prevents compressors from starting while overloading, and it is available with an On-Off knob for manual cut off the compressor. The design allows the unloading valve to be rotated into eight different positions. Four ports connection makes it easy to connect with safety valve and pressure gauges. Model: PS-A10
Medium: Air
Contact Arrangement:NC
Port:One port /four ports| MODEL | Min ON
(Cut-In)
(PSI) | Max Off
(Cut-Out) (PSI) | Differential
(PSI) | Factory
Setting
(PSI) | Electrical Rating |
| 120VAC | 240VAC |
| PS-A10-1 | 25 | 100 | 20-35 | 55-80 | 20A
| 12A
|
| PS-A10-2 | 35 | 150 | 30-40 | 85-115 |
| PS-A10-3 | 50 | 175 | 35-55 | 110-150 |
| PS-A10-4 | 70 | 190 | 40-55 | 130-175 |
| PS-A10A-1 | 25 | 100 | 20-35 | 55-80 | 26A
|
| PS-A10A-2 | 35 | 150 | 30-40 | 85-115 |
| PS-A10A-3 | 50 | 175 | 35-55 | 110-150 |
| PS-A10A-4 | 70 | 190 | 40-55 | 130-175 |
Connection: NPT 1/4'', 3/8''Male or Female
More information, you can search PS-A20, PS-A21
Please search PS-A10 for more information.

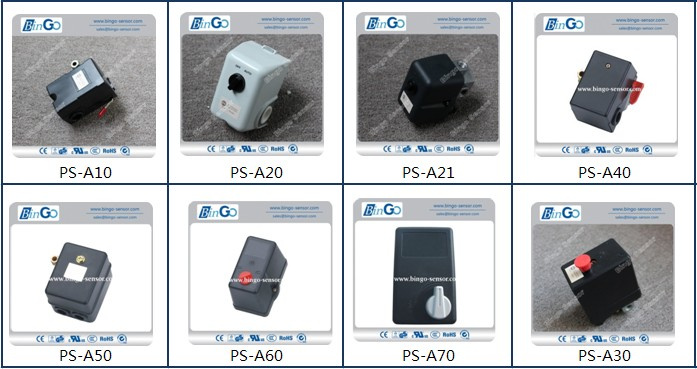

2. Other type we can supply:
3. Our service: 1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
4. Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.If you need more information about the product, click here: www.bingo-sensor.com
