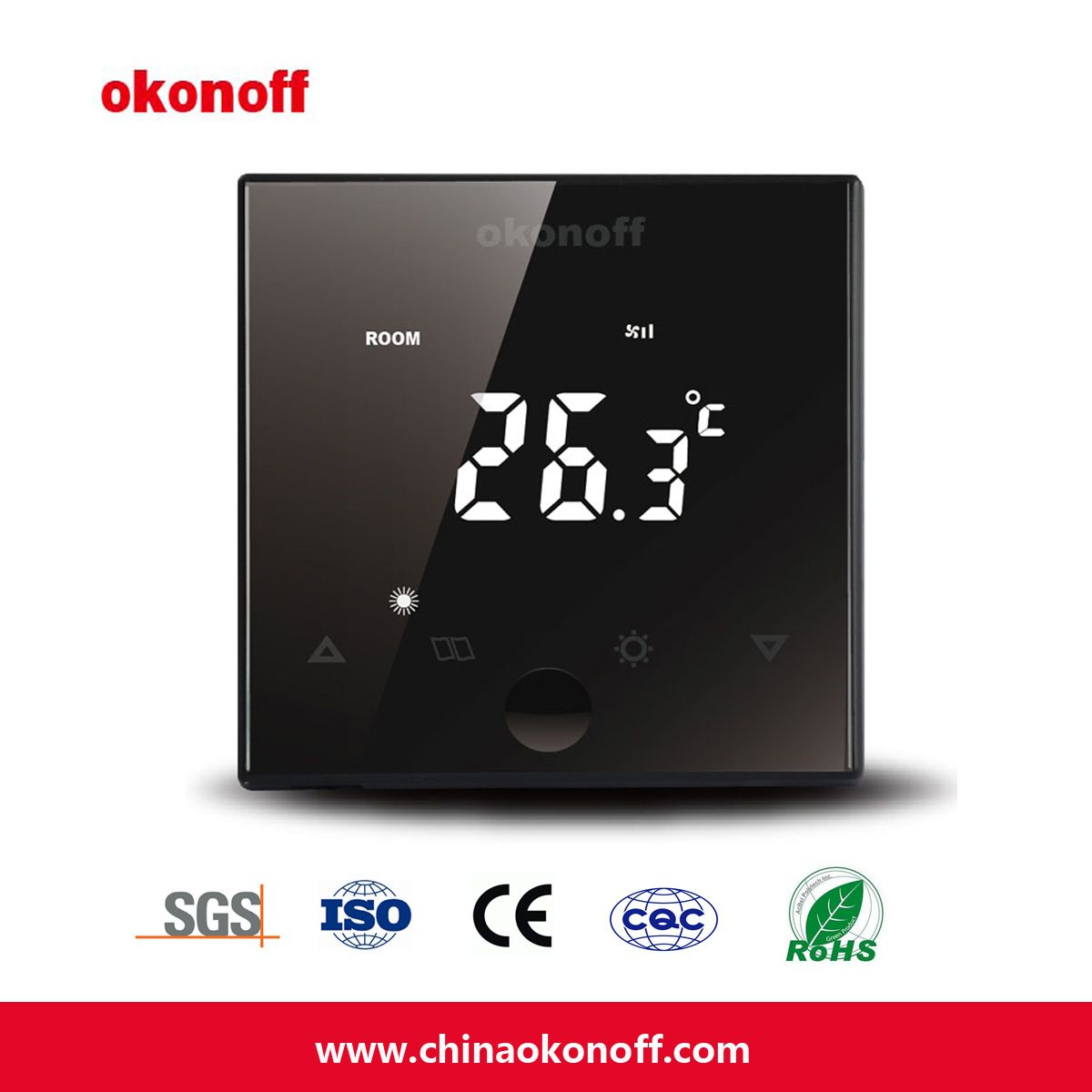

Air Conditioning LED Thermostat with Remote Control (X7-TR)
| Price: |
US $ 14-16/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T |
X7 series of air-conditioning room thermostats are applied to controlling the fan coil water valve and air valve of air-conditioning terminal in the commercial industrial and civil buildings.
Feature:
1. With capacitive touch technology, gently touch function can be realized
2. LED display, high light, long life
3. Integrated design, easy to install, high reliability
4. Four fan speed set, Low/Meddle/High/Auto. Power off memory function, can recover the working state after power resumption
5. 8 hours sleeping function
6. With infrared human body sensitive function
7. With infrared remote control function (equipped with remote-control unit)
8. Insert card function, double set temperature control (please refer to model spec)
9. 24 hours timing power on/off function, the adjustable step is one hour
10. With 485 communication interface (please refer to model spec)
Model spec:
| Model | Apply to equipment | Time setting | Remote | Mainframe linkage | Insert card to get power |
| X7-T | Two pipe | √ | | | |
| X7-TR | Two pipe | √ | √ | | |
| X7-TH1 | Two pipe | √ | | √ | |
| X7-TH2 | Two pipe | √ | | | √ |
| X7-F | Four pipe | √ | | | |
| X7-FH2 | Four pipe | √ | | | √ |
| X7-Y | Integration | √ | | | |
| X7-S-_ | With 485 communication |
| Prod Model: |
X7-TR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
220VAC±10%, 50Hz |
| Working Environment: |
5~35ºC |
| Storing Environment Temperature: |
-10~55ºC |
| Current Load: |
<3A(Resistive Load) |
| Power: |
<1W |
| Sensing Element: |
Ntc |
| Button: |
Capacitive Touch Buttons |
| Temperature Control Precision: |
±1ºC |
| Relative Humidity: |
Rh<85% (Non-Condensate) |
| Shell Material: |
Flame Retardant PC |
Okonoff Company was founded in 2002, whose headquarter of Asia-Pacific areas is in Shanghai, China. It is an enterprise with new and high technology and integrates with design, manufacture and distribution of the HVAC auto-controlling products\heating (floor heating) auto-controlling products, building (accounting) auto-controlling systems, intelligent home systems and so on.
Okonoff has about 200 workers, plant area reach 26680 M2. Having 30 research staff, it is 15% of all staff. Investment of R&D is about 600 thousands RMB, it is about 20% of total investment. In many cities, okonoff set up offices, like Beijing, Hang Zhou, Guangzhou and so on.
Okonoff Company persists in enhancing the capacity of scientific and technological innovation as basis, humanistic knowledge-based as their duty and try best to make the living environments be comfortable and economic. Besides the present R & D team.
Okonoff Company set up okonoff Auto Control. INC in the United States by cooperating with some famous university and research institutions, the main purpose is to study and master the advanced auto-controlling technology and latest information about products. Now, the product developmental system has been in sync with international level and successfully developed six major productions ranges, more than 1, 000 varieties of products.

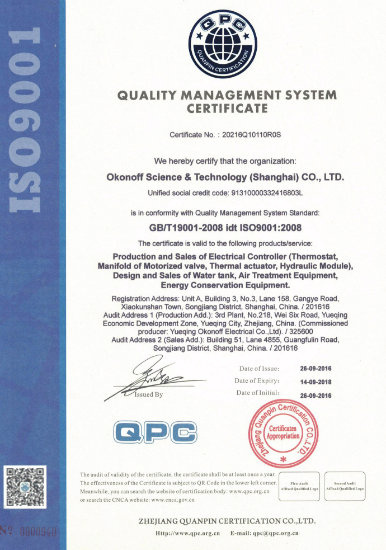

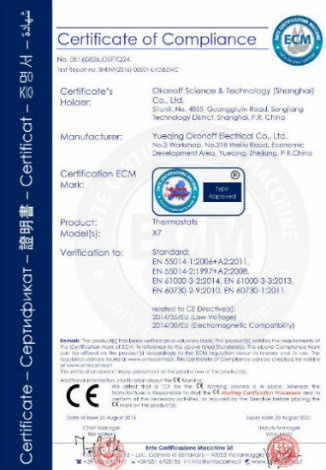

Okonoff Company treats the quality as the main principle of survival and development, strictly implements the IS9001 quality management system, increases the investment of advanced manufacturing and testing facilities, tries hard to structure accurate production system. Okonoff Company has been authorized the Quality-Trust Enterprise, one of ten Famous Brands in the industry, Shanghai High-Tech Enterprise, Scientific and Technological Demonstration Enterprise and so on. Most of our products have got CE, UL, TUV, RoHS certifications, test licenses, test reports, and over fifty products got patent protections, three products won High-tech Transformation Award, also we established the fund for the projects support and two products got "Software Copyright Registration" certification.
