Description

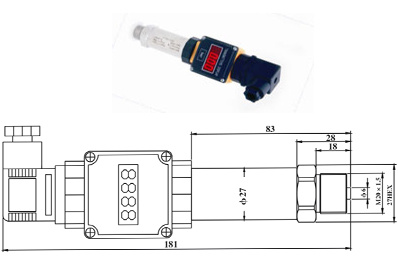

Air Differential Pressure Sensor Switch Transducer(HTW-CQ04531-IX) uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.
Feature
² Wide measurement range, full stainless steel,Flush diaphragm.
² Various output signal
² Scene adjustable
² Protection: IP65
² Marking:ExiaIICT6;
² CE certification
Application
² Compatible with 316LSS, noncorrosive gases & liquids
² Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc
Specification
Measurement Range
| -0.1...0~0.01...~100MPa |
| Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(Typical) ±0.5%(Max.) |
| Long term stability | ±0.1%F.S/Year( Typical ) ±0.2%F.S/year( Max.) |
| Temperature Error- Zero | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Operating TemperatureRange | -20ºC~80ºC |
Storage TemperatureRange
| -40ºC~120ºC |
| Power supply | 15~30VDC |
| Output signal | 4~20mA 0~10/20mA 0/1~5VDC |
| Pressure port | M20×1.5 G1/2 or customize |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L
|
| O-ring | Fluororubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
