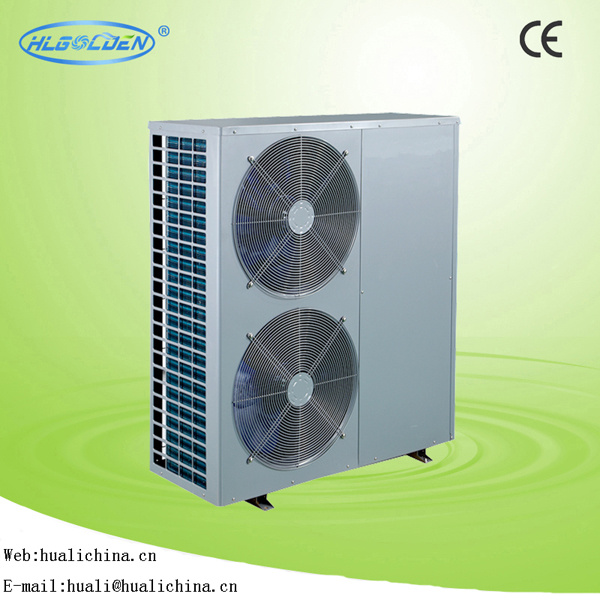

Air Source Air to Water Cooling and Heating Heat Pump

Air source air to water cooling and heating heat pump



Product Function
Widely used in building air conditioning system, small and medium-sized office,
workshop, restaurants, villas and other air conditioning environment.

Product Advantage

1. Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 12°C/7°C,
    Cooling water inlet/outlet temp. 30°C/35°C,
2. Chilled Water Range: 5~20°C;
3. Cooling Water Range: 20~40°C;
4. Refrigerant: R22 / R407C / R410A / R134A is optional.
5. Designed with quality compressor(Danfoss, Copeland Brand etc) and multi-refrigeration circuits.
6. Compressors: 1~3 compressors design to save energy and power.
7. Well-structured safety protection and trouble indication system.
8. Brand of Compressor: Standard unit is Danfoss, Copeland, can guarantee reliable running, high efficiency, low noise & power saving and long use life.
    You could choose other brands just like Bitzer, Dakin etc.
10. Electrostatic plastic sprayed outter casing, the outer panel is easy dismantlement to guarantee convenient usage and maintenance.
11. Microcomputer intelligent temperature controller, high precision digital display.



Product Parameter


Golden Item NO. HLLH~	08BM	16BM	20BM	08AM	16AM	20AM	33AM	40AM	33M	40M	44M	57M	76M
Suitable area:	Southeast Asia, main Weat Asia, Middle East, Africa, main South America, South Austrilia …etc with winter temperature above -5DegC
Metel cabinet	Galvanized steel/Plastic coating
Compressor / Refrigerant	Scroll Copeland compressor / R410A
Power supply	220/1/50	380/3/50		220/1/50	380/3/50
Heat exchanger	High efficiency tube in tube heat exchanger
Expansion valve device	Emerson thermal expansion valve
Heating capacity (kW)	8.1	16.4	19.5	8.1	16.4	19.5	32.8	39.1	32.8	39.1	43.4	57.2	75.6
Input power (kW)	2.03	4.09	4.9	2.03	4.09	4.9	8.24	9.84	8.24	9.84	10.6	14.2	18.8
COP (Coefficient of Performance)	3.99	4.01	3.98	3.99	4.01	3.98	3.98	3.97	3.98	3.97	4.09	4.03	4.02
Rated current (A)	10.2	7.5	8.5	10.2	7.5	8.5	14.5	17	14.5	17	20	26	33
Rated water outlet temperature (ºC)	40	40	40	40	40	40	40	40	40	40	40	40	40
Max water outlet temperature(ºC)	45	45	45	45	45	45	45	45	45	45	45	45	45
Rated water producing volume (L/H)	200	400	460	200	400	460	800	920	800	920	1050	1380	18500
Cooling capacity (kW)	6.3	12.8	15.1	6.3	12.8	15.1	25.6	29.6	25.6	29.6	33.4	43.6	60.5
Input power (kW)	2.32	4.71	5.42	2.32	4.71	5.42	9.42	10.6	9.42	10.6	12.3	15.9	22.3
EER	2.72	2.72	2.79	2.72	2.72	2.79	2.72	2.79	2.72	2.79	2.72	2.74	2.71
Rated current (A)	10.7	8	9.3	10.7	8	9.3	16	18.5	16	18.5	22	28	36
Rated water outlet temperature (ºC)	12	12	12	12	12	12	12	12	12	12	12	12	12
Max water outlet temperature(ºC)	7	7	7	7	7	7	7	7	7	7	7	7	7
Rated water producing volume (L/H)	1500	2800	3400	1500	2800	3400	5600	6700	5600	6700	7500	10200	13500
Water connection size	DN25	DN25	DN25	DN25	DN25	DN25	DN32	DN32	DN32	DN32	DN50	DN50	DN65
Working temperature range (ºC)	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43	-7 to 43
IP Grade (Level of protection)	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate	I	I	I	I	I	I	I	I	I	I	I	I	I
Noise at 1m (dB(A))	≤55	≤58	≤58	≤58	≤60	≤60	≤65	≤65	≤65	≤65	≤68	≤68	≤70
Net weight(kg)	100	145	155	100	145	155	300	330	300	330	372	482	582
Gross weight(kg)	106	155	165	106	155	165	320	350	320	350	412	532	643

Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.



FAQ

Q: What information do you need to provide in order to get a quotation?
A: Generally, for industrial water chiller we need to know the following information in order to suggest the suitable water chiller models and for providing the quotation.
1) Air cooled or water cooled?
2) Cooling Capacity / Heating Capacity.
3) Power Supply.
4) Refrigerant.
5) Chilled water outlet temperature / Hot water temperature
6) Order Quantity etc.

Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.

Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
