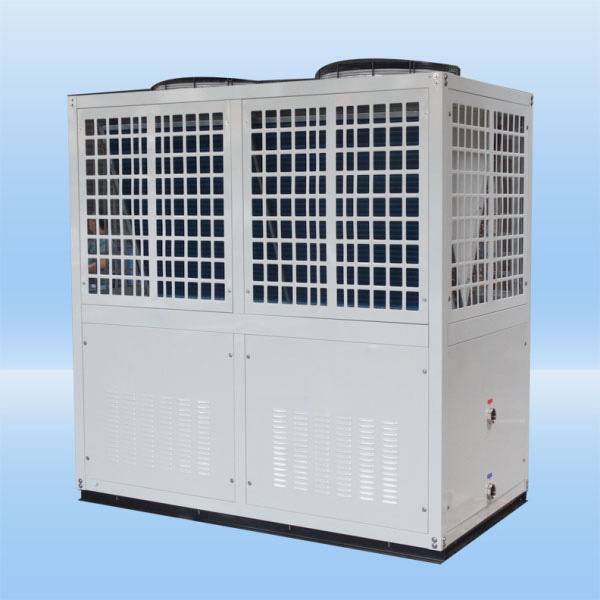

Air Source Modular Unit Acdc Swimming Pool Heat Pump RC-HP-6p

Name: Air Source Modular Unit Acdc Swimming Pool Heat Pump RC-HP-6p
Brand: all-electronics-online.com
SKU: 830610085
Availability: InStock
Rating: 4.5 (123 reviews)

Price:	US $ 2200-10000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Heating Pump System for Swimming Pools
Model Performance	Unit	3P	5P	6P	10P	20P
Rated Heating Capacity	KW	13	21	25	45	85
	kcal/H	11180	18060	21500	38700	77400
	BTU	44353	71647	85295	153531	290003
Input Power	KW	2.6	4.4	5	8.8	17.5
Working Current	A	12.3	20.5	23	16.1	31.3
Power(AC input)	V/PH/HZ	220V/50/60HZ			380V/3P/56/60HZ
Power(Solar input)	V	90-350V(MAX 15A)			200-560V(MAX 15A)
Compressor		Totor Compressor			Fully-packaged Scroll Compressor
Qty of Fan	PCS	1	2	2	2	2
Input Power of Fan	W	90	130	130*2	250*2	450*2
Waterproof Level		IPX4	IPX4	IPX4	IPX4	IPX4
Air Outlet		Front	Front	Front	Top	Top
Refrigerant		R410	R410	R410	R410	R410
Noise Level	db	55	58	58	61	62
Water Inlet/Outlet Connection		DN40	DN50	DN50	DN65	DN75
Waterflow Rate	M3/H	4	6	7	15	16
Water Pressure	Kpa	12	12	12	15	16
Product Dimension	MM	8008001070	15008001560	15008001560	1450/710/1180	1800/1100/2150
Packing Dimension	MM	830*860/1210	15308401700	15308401700	1480/775/1325	1830/1130/2300
Net Weight	Kg	100	180	200	310	650
Gross Weight	Kg	105	188	208	326	662

Prod Model:	RC-HP-6P
Rated Heating Capacity:	25kw/85295BTU
Input Power:	5000W
Working Current:	23A
AC Input Voltage:	220V 50/60Hz
Solar Input Voltage:	90-350V(Max 15A)
Compressor:	Totor Compressor
Waterproof Level:	Ipx4
Waterflow Rate:	7 Cbm/H
Net Weight:	200kgs

Changzhou Recreate Electric Appliance Technology Co., Ltd(Recreate Tech), is a leading company and a professional solution supplier in the field of power electronic technology and frequency conversion control technology. At present, we are the biggest manufacturer of solar electrical appliance products in China.

With the aim to be the world's first-class supplier of energy-saving electrical appliance products and system solutions, Recreate Tech have been hammering at R&D, and have successfully developed the world's first solar-directly-generated inverter air conditioner. With stable performance and excellent quality, Recreate solar inverter air conditioners are widely accepted and praised by local and overseas buyers. Supported by the awesome R&D team, we're 3-5 years ahead of our competitors in terms of solar air conditioning frequency conversion technology.

By far, a series of products have been successfully promoted to the market, including:

*Domestic&commercial solar inverter air conditioners

*RV solar inverter air conditioners

*Solar inverter refrigerators&freezers

*Portable inverter refrigerators

*Solar inverter pumps

*Heat inverter pumping systems(pool heating systems&driers)

With manufacturing workshops in China and overseas sales offices in the US, Dubai, Germany and South Africa, we offer highly cost-effective products, specific OEM and ODM services, fast communication, convenient after-sale services and financial help to all of our customers worldwide. We're very confident to be a good partner to help our clients to be bigger, stronger and more profitable!

Our Philosophy

- Higher efficiency of power use, more cleanness on the earth.

- Our Wish

- To be first-class supplier of energy-saving solutions

- Our Duty

* Utilizing our advantage in Power Electronic Technology and frequency Conversion Control Technology, to offer energy-saving,

*environment-friendly and efficient system application products for clients in the field of consumer electronics and solar application.

- Our Social Obligation

* Obey the laws and disciplines

* Pay taxes on time

* Be nice to the employees

* Save natural resources

* Protect environment
