| Prod Model: |
HL-UCW160A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating Capacity: |
3.8-11.3kw |
| Power Supply: |
220V/1pH/50Hz |
| Refrigerant: |
R407c, R410A |
| Compressor Type: |
Scroll |
| Usage: |
Refrigerator |
| Control Type: |
Digital |
| Type: |
Rotary |
| Display Type: |
LCD |
| Material: |
Stainless Steel |
Product Description

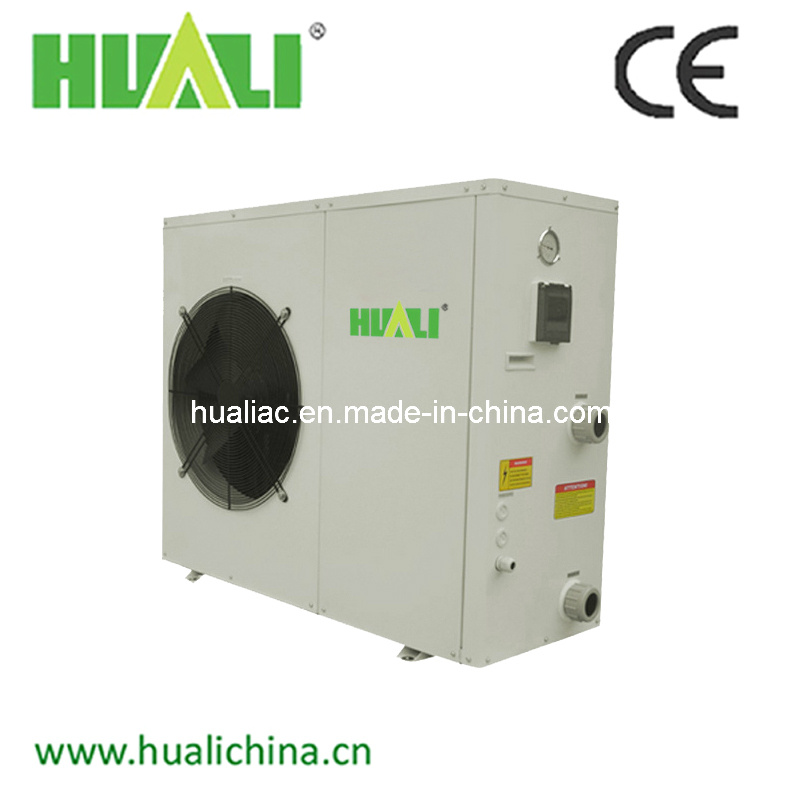

The evaporator of the swimming pool heat pump is titanium gun type.
Titanium gun is made by secret-recipe materials and can withstand 21KG water pressure. Its stability, life expectancy and efficiency are higher than the average units.
The SPHP is the first and also the only one being certified by new normal ETL, north American ETL authentication.
Swimming pool heat pump has automatic cleaning function and hot water defrosting function, For some cold regions, defrosting is a great problem. And it's too cold to defrost manually. Swimming pool heat pump can solve the bottleneck problem in heat pump field. Our EVI technology enables the units work well in -20C environment.
|
Model HLLS~ |
4BD |
6BD |
8BD |
10BD |
10AD |
12BD |
12AD |
|
(1.5P) |
(2P) |
(2.5P) |
(3P) |
(3P) |
(4P) |
(4P) |
|
Heating capacity |
W |
3800 |
5300 |
7800 |
9500 |
9500 |
11300 |
11300 |
|
BTU/h |
13000 |
18000 |
26500 |
32500 |
32500 |
38500 |
38500 |
|
Cooling capacity |
W |
2700 |
3700 |
5500 |
6700 |
6700 |
8000 |
8000 |
|
BTU/h |
9000 |
12000 |
18500 |
23000 |
23000 |
27500 |
27500 |
|
Heating range |
° C |
15 ~ 40 |
15 ~ 40 |
15 ~ 40 |
15 ~ 40 |
15 ~ 40 |
15 ~ 40 |
15 ~ 40 |
|
Cooling range |
° C |
8 ~ 30 |
8 ~ 30 |
8 ~ 30 |
8 ~ 30 |
8 ~ 30 |
8 ~ 30 |
8 ~ 30 |
|
Heating input power |
W |
791 |
1083 |
1625 |
1938 |
1980 |
2354 |
2306 |
|
Cooling input power |
W |
775 |
1050 |
1590 |
1890 |
1928 |
2300 |
2250 |
|
Running current heating |
A |
3.6 |
5 |
7.5 |
8.8 |
8.8 |
10.7 |
10.6 |
|
Running current cooling |
A |
3.5 |
4.9 |
7.3 |
8.6 |
8.7 |
10.5 |
10.4 |
|
COP |
4.9 |
4.9 |
4.8 |
4.9 |
4.8 |
4.8 |
4.9 |
|
EER |
3.5 |
3.5 |
3.5 |
3.5 |
3.5 |
3.5 |
3.6 |
|
Compressor Type |
Scroll |
|
Power Supply |
220V/1ph/50Hz |
|
Refrigerant |
R407C, R410A |
|
Fan Motor Input |
W |
25 |
25 |
25 |
30 |
200 |
150 |
200 |
|
Fan Speed |
RPM |
890 |
950 |
950 |
950 |
830 |
850 |
830 |
|
Noise |
dB(A) |
52 |
55 |
55 |
58 |
60 |
60 |
60 |
|
Water Connections |
inch |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
|
Water Flow Volume |
m 3 /h |
2-4 |
2-4 |
3-5 |
4-7 |
4-7 |
5-8 |
4-7 |
|
Water Pressure Drop |
kpa |
10 |
12 |
12 |
15 |
15 |
15 |
15 |
|
Applicable ambient temp. |
° C |
-7+43 |
-7+43 |
-7+43 |
-7+43 |
-7+43 |
-7+43 |
-7+43 |
Dimension |
L |
mm |
935 |
935 |
935 |
1010 |
660 |
1115 |
660 |
|
W |
360 |
360 |
360 |
370 |
660 |
470 |
660 |
|
H |
520 |
520 |
520 |
585 |
860 |
690 |
860 |
Paking Dimension |
L |
mm |
1045 |
1045 |
1045 |
1140 |
750 |
1220 |
750 |
|
W |
380 |
380 |
380 |
390 |
710 |
480 |
710 |
|
H |
600 |
600 |
600 |
680 |
980 |
710 |
980 |
|
Weight |
NW. |
kg |
40 |
48 |
50 |
57 |
74 |
81 |
79 |
|
GW. |
44 |
52 |
54 |
63 |
91 |
97 |
96 |
|
Loading quantity (20' /40G/40H) |
90/198/264 |
90/198/264 |
90/198/264 |
84/174/174 |
48/96/96 |
60/129/129 |
48/96/96 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
