| Prod Model: |
SW200-262 |
| Manufacturer: |
Anhui, China |
| Model: |
Sw200-262 |
| Main Circuit Voltage Rating: |
48V DC |
| Main Circuit Current Rating: |
400A |
| Contactor Type: |
Single Pole Double Throw |
| Weight: |
1.35kg |
| Warranty: |
1 Years |
| Application: |
Pallet Truck & Stacker |
Product Description

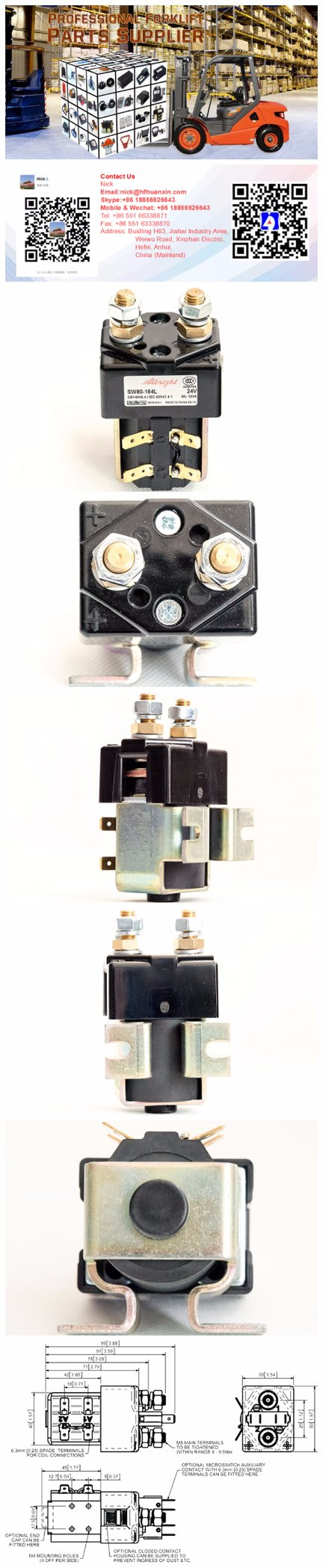

Albright DC Contactor Model SW200-262 Zapi Model B4SW31
48V 400A For Electric Forklift Single Pole Normal Closed
Product Description:
Specifications:
- Manufacturer: ALBRIGHT
- Model: SW200-262 (Zapi Model: B4SW31)
- Contactor Type: Single Pole Single Throw, On/Off Type
- Main Circuit Current Rating: 400A
- Main Circuit Voltage Rating: 48V DC Contactor
- Closed contacts housing
- Weight: about 1.35kg
The SW200-262 contactors are wildly applied in 36V & 48V DC systems. The maximum recommended contact voltage for SW200 is 96VDC. For more details of voltage options, please read carefully the Albright SW200 Contactor Datasheet before making the purchase.
Overview: The SW200 series contactors have been designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc. They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity. The SW200-262 contactor is often used as lifting pump driving motor switch relay. Click to download the Albright DC Contactor Model List (PDF format). |
Features include: - The contactors are compact in size
- Fully serviceable, with a full range of spare parts available.
- Easy installation, the contactors SW200-262 can be mounted horizontally or vertically. If mounted vertically, the main terminals should point upwards.
|
