LK-PDU001
Power distribution unit
Germany type 19A 6 Way PDU with control unit
6way, 8way are available, length 1.8m in general, can make as per customer's requirement.
Parting and principal characteristics classification
| Rated current | 16A |
| Rated load | 3500W |
| Rated voltage | 230V |
| Number of sockets | 8 ways |
| Size | 19" 1U |
| Shell material | Uninflammable PC module, Aluminum alloy shell |
| Functions | With switch |
| Type of cable | H05VV-F3G1.5mm2 |
| Type of plug | IMQ16A plug |
| Degree of protection against electric shock | IP20 |
| Provision for earthing | With earthing contact |
| Method of connecting the cable | Non-rewirable |
| Type of connections | Welded-solder |
| Degree of protection against electric shock | Normal protection |
| Existence of shutters | With shutters |
| Method of application-mounting | Portable type |
LK-PDU002
Power distribution unit

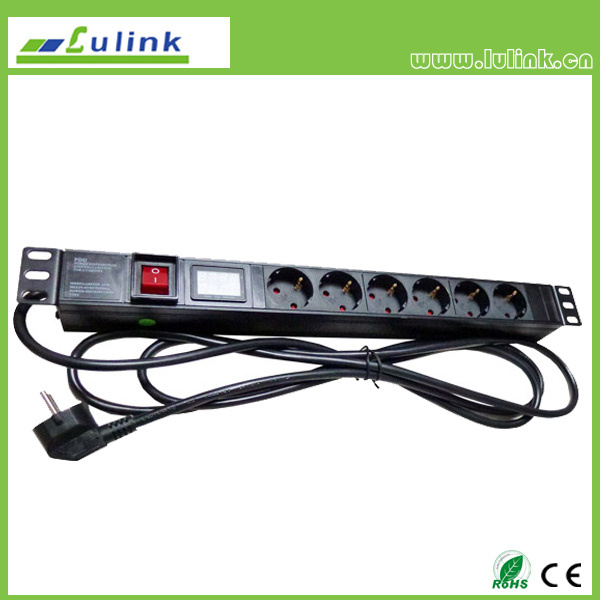

Germany type 19A 6 Way PDU with control unit (aluminium alloy shell )
6way,8way are available,length 1.8m in general,can make as per customer's requirement.
Pating and principal characteristics classification
| Rated current | 16A |
| Rated load | 3500W |
| Rated voltage | 230V |
| Number of sockets | 8 ways |
| Size | 19" 1U |
| Shell material | Uninflammable PC module, Aluminium alloy shell |
| Functions | With switch |
| Type of cable | H05VV-F3G1.5mm2 |
| Type of plug | IMQ16A plug |
| Degree of protection against electric shock | IP20 |
| Provision for earthing | With earting contact |
| Method of connecting the cable | Non-rewirable |
| Type of connections | Welded-solder |
| Degree of protection against electric shock | Normal protection |
| Existence of shutters | With shutters |
| Method of application-mounting | Portable type |
LK-PDU003
Power distribution unit
Germany type 19A 6 Way PDU with control unit
6way,8way are available,length 1.8m in general,can make as per customer's requirement.
Pating and principal characteristics classification
| Rated current | 16A |
| Rated load | 3500W |
| Rated voltage | 230V |
| Number of sockets | 6 ways |
| Size | 19" 1U |
| Shell material | Uninflammable PC module, Aluminium alloy shell |
| Functions | With switch |
| Type of cable | H05VV-F3G1.5mm2 |
| Type of plug | IMQ16A plug |
| Degree of protection against electric shock | IP20 |
| Provision for earthing | With earting contact |
| Method of connecting the cable | Non-rewirable |
| Type of connections | Welded-solder |
| Degree of protection against electric shock | Normal protection |
| Existence of shutters | With shutters |
| Method of application-mounting | Portable type |
LK-PDU004
Power distribution unit
US type 19A 8 Way PDU with control unit
6way,8way are available,length 1.8m in general,can make as per customer's requirement.
| Model | LK-PDU004 |
| Input characteristics | |
| Rated input voltage | 250VAC |
| Cable specification | 3G 1.5mm^2 |
| Cable length | 3 meter |
| Max input current | 19A |
| Output characteristics | |
| Socket standard | BS1363 |
| Output quantity | 8 way |
| Rating output voltage | 250VAC |
| Max output current | 19A |
| Max output power | 3.5KW |
| Functions | |
| Control | power light |
| Protection | current and voltage dual-digital display |
| Size | |
| Product size | LXWXH=482.6X44.4X62mm (19 inch) |
| Mounting length | 465mm |
| Test items | |
| hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Product color& material | |
| Product color: | Silverwhite or black |
| Shell material: | Aluminum alloy |
| Plastic flame retardant rating | UL94V-0 grade |
| Mounting | |
| Mounting method | Perpendicular |
LK-PDU005
Power distribution unit
French type 19A 8 Way PDU with control unit
6way,8way are available,length 1.8m in general,can make as per customer's requirement.
| Model | LK-PDU005 |
| Input characteristics | |
| Rated input voltage | 250VAC |
| Cable specification | 3G 1.5mm^2 |
| Cable length | 1.8 meter |
| Max input current | 19A |
| Output characteristics | |
| Socket standard | BS1363 |
| Output quantity | 8 way |
| Rating output voltage | 250VAC |
| Max output current | 19A |
| Max output power | 3.5KW |
| Functions | |
| Control | power light |
| Protection | current and voltage dual-digital display |
| Size | |
| Product size | LXWXH=482.6X44.4X62mm (19 inch) |
| Mounting length | 465mm |
| Test items | |
| hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Product color& material | |
| Product color: | Silverwhite or black |
| Shell material: | Aluminum alloy |
| Plastic flame retardant rating | UL94V-0 grade |
| Mounting | |
| Mounting method | Perpendicular |
