Aluminum Circuit Board LED Lighting PCB MCPCB Manufacturer (PCBA, OEM)
WELCOME TO ABIS CIRCUITS CO., LTDABIS CIRCUITS CO., LTD is a professional PCB manufacturing which is focus on double side, Multilayer and HDI pcb mass production. The company was established on 2006, We

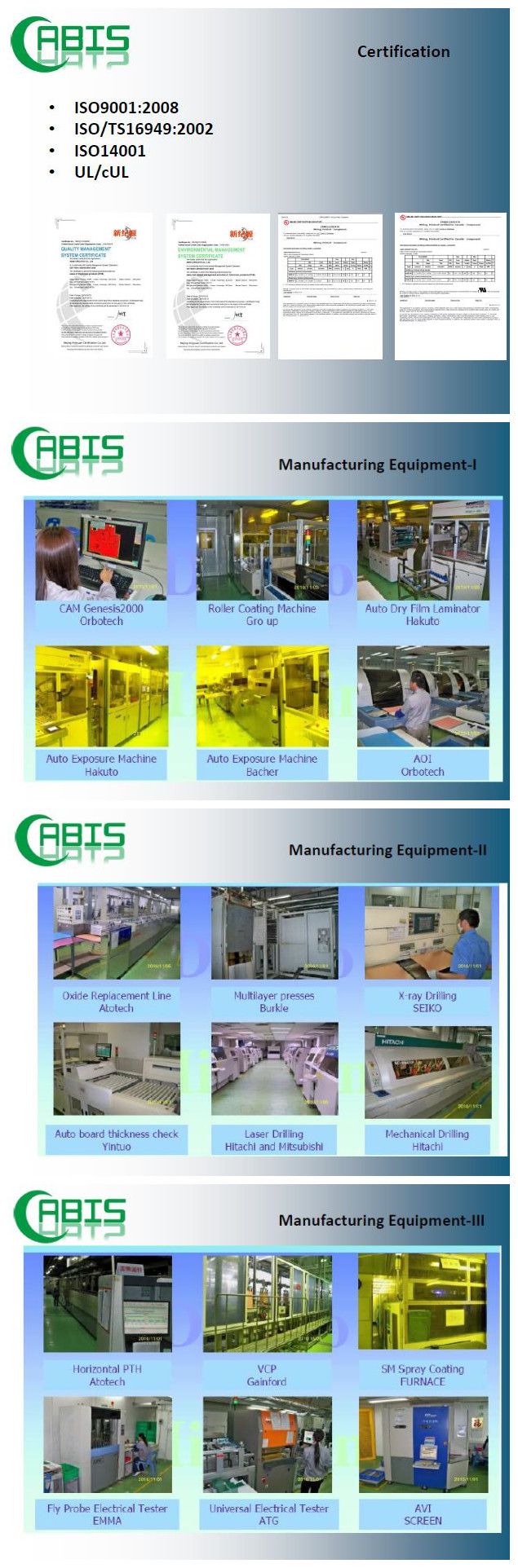

have two factories together ,The factory in Shenzhen is specialized in small and middle volume orders and the factory in Shaoguan is for big volumn and HDIPCB Certifications and Factory Pictures
PCB Technical and Capacility. Shenzhen PCB Factory I (Focus on Prototypying, Quick turn, Medium volume) | Item | Capacility |
| Raw material | Aluminum base, Cooper base |
| Layer | 1-2 Layer |
| Min.Line width/space | 4mil/4mil(0.1mm/0.1mm) |
| Min.hole size | 12mil(0.3mm) |
| Max. Board size | 1200mm*560mm(47in*22in) |
| Finished board thickness | 0.3-5mm |
| Cooper foil thickness | 35um-210um(1OZ-6OZ) |
| Remain thickness tolerance | +/-0.1mm |
| Hole position tolerance | +/-0.05mm |
| Routhing outline tolerance | +/-0.15mm |
| Puntching outline tolerance | +/-0.1mm |
| Surface finished | Lead free HASL, Immersion gold, imersion silver, OSP ect |
| MC PCB Production capability | 10,000 a.q.m/month |
. ShaoGuan PCB Factory II (Mass production& HDI) | Item | Capacility |
| Raw material | CEM1, CEM3, FR1 FR4, Rogers, Telfon ect. |
| Layer | 1 Layer-20 Layer |
| Min.Line width/space | 3mil/ 3mil (0.075mm/0.075mm) |
| Min.hole size | 0.1mm(drilling hole) |
| Max. Board size | 1200mm* 600mm |
| Finished board thickness | 0.2mm-6.0mm |
| Cooper foil thickness | 18um- 280um (0.5oz-8oz) |
| NPTH Hole Tolerance | +/- 0.075mm |
| PTH hole Tolerance | +/-0.05mm |
| Outline tolerance | +/-0.13mm |
| Surface finished | Lead Free HASL, immersion gold(ENIG), Immersion silvel, OSP, gold plating, gold finger, Carbon INK |
| Impendance Control Tolerance | +/-10% |
| Production capability | 50,000 s.q.m/ month |

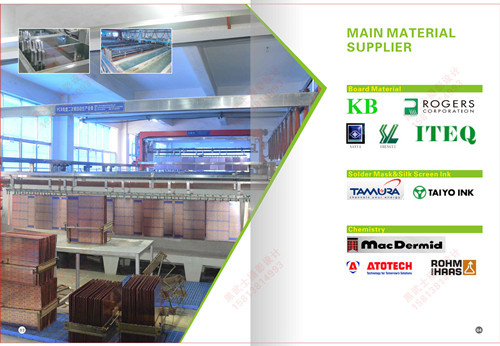

Main PCB Material Supplier:

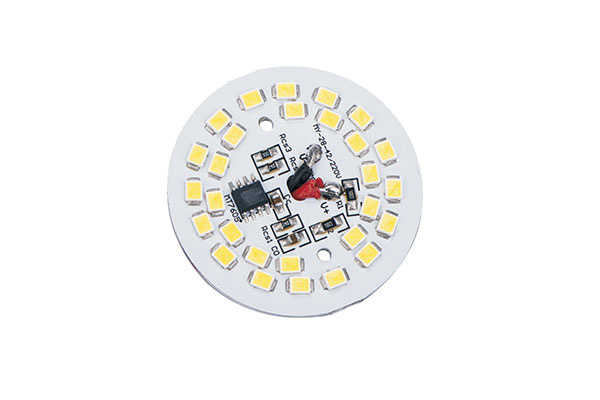

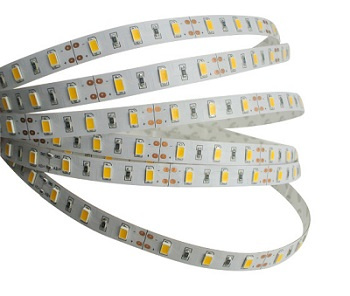

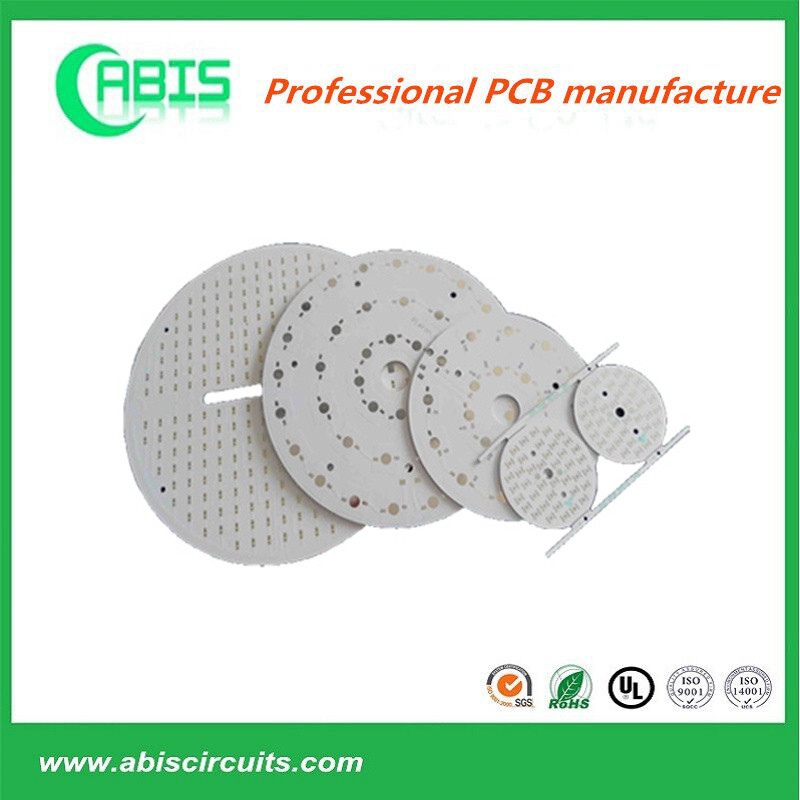

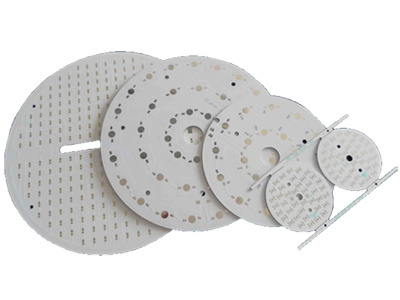

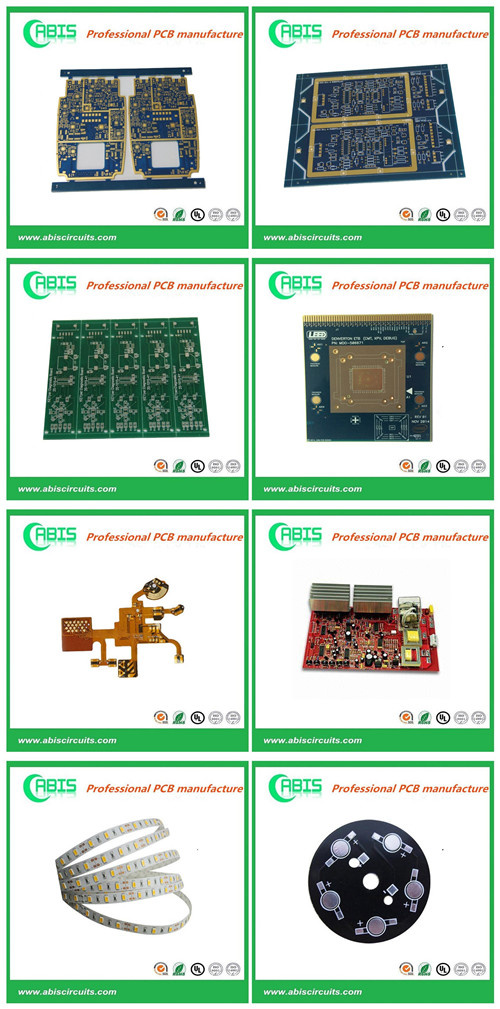

PCB Product show:
PCB Manufacturer Pre-Sale and After-Sale Service: 1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
Why choose us: . With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback FAQ :
Q1: How can I got quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .CAD / .Gerber
Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide sample?
Q3: Do you have pcb in stock?
. Most of our pcb board are customised, which according to gerber file.
. ABIS have sample in stock could sent to you for a quality checking always.
Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan) and Shengyi (China).
Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engieer question and working file checked, production will start.
Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers ,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
Q7: Does ABIS CIRCUITS bevel gold fingers?
. Yes. A standard 45-degree bevel, also bevel at 15 or 30 degrees upon request. For multi-layer board, please ensure there is adequate back set for the bevels.
Q8: My assembly company need the PCBs as panelized, can you do this for me?
. Yes. We can panelize your circuits upon your request.
Please keep us informed for any interestes!
ABIS cares every your order even 1 piece
Abis Circuits Co. Ltd, established in 2006, Located in shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of testing, computer, medical equipment and military, and have good performance in all kind of functional test. Our perfect management, advanced equipments, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer's satisfaction and support are what we have been strived for.
Now we have passed ISO9001, SGS and UL certificates. With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layer, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high quality level.
With more than 10 years experience in international business, we have abtained over 500 customers in the world, We sincerely appreciate trust and support from our new and old customers home and abroad all the time. At this time when global economy is development rapidly, we do hope to cooperate with all the friends to make a more brilliant future.
