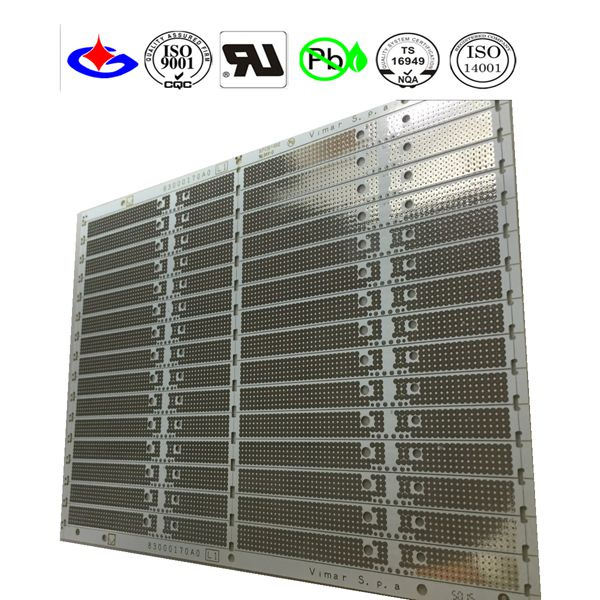

Aluminum Clad PCB for LED Lighting and LED Assembly

Name: Aluminum Clad PCB for LED Lighting and LED Assembly
Brand: all-electronics-online.com
SKU: 780084315
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 0.07-0.08/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	xzg012804
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Copper Thickness:	1oz
Board Thickness:	1.2mm
Surface Finishing:	Enig
Soldermask:	White
Silkscreen:	White
Min Line W/S:	12/12 Mil
Min Hole Size:	12 Mil
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Application:	LED Lighting
Brand:	Xzg

Product Description

1.Specification:

Layer	1
Material	aluminum
Board Thickness	1.2mm
Copper Thickness	1oz
Soldermask	white
Silkscreen	white
Surface Finishing	ENIG
Min Line Width/Space	12/12 mil
Min Hole Size	12 mil

2.Capability:

Layer Count	1 to 22 layer
Material Type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers.etc.
Board Thickness	0.21mm to 7.0mm
Copper Thickness	0.5 oz to 7.0 oz
Min. Line Width&Space	3/3 mil
Min. Mechnical Hole	0.15mm(0.8mm for Alu PCB)
Min.Solder Mask Dam	0.075mm
Max.Aspect Ratio	10:1
PTH Size Tolerance	+/- 0.05mm
Impedance Control Tolerance	+/- 8%
Routing Tolerance	+/- 0.1mm
Electric Strength	>103KV/mm
Current Breakdown	10A
Solder Mask Abrasion	>6H
Solder Mask Color	Green/Black/White/Red/ Blue/Matt Blue/Matt Black
Silkscreen Color	Yellow/Black/White/ Orange/Grey
Surface Finishing	HASL / HASL lead free,OSP, Tin Plating, Silver Plating Immersion Silver/Tin, ENIG, Hard Gold plating
PCB Packing	- Inner Packing: Vacuum packing / plastic bag - Outer packing: Standard carton packing

3.Lead Time:

	1-2L	4L	6L	8L	10L
Sample	3-4	5	6	7	8
Mass Production	6-8	10	12	14	16

1. Lead time is Calendar Days counted from date of EQ confirmed;
2. Shorter lead time is available with express production service;

4.Why US:

- UL (E246887), ISO9001, TS16949, ISO 14001 certified.
- Turnover USD 50-100 million per year
- 25,000 sqm area,1100 staff
- Produce from single to 20 layers
- Special Material: ROGERS, Arlon, Taconic.etc.

5.FAQ:

Q1:Are you a manufacturer or trading company?
A:XZG is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production?
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
