| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Variable Resistor |
| The Resistance: |
1r-100k |
| Rated Power: |
50W, 100W, 150W |
| Size: |
Small |
| Resistance: |
Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Package Type: |
Throught Hole |
| Type: |
Varistor |
| Material: |
Aluminum Resistance |
| Brand: |
Machtric |
Product Description

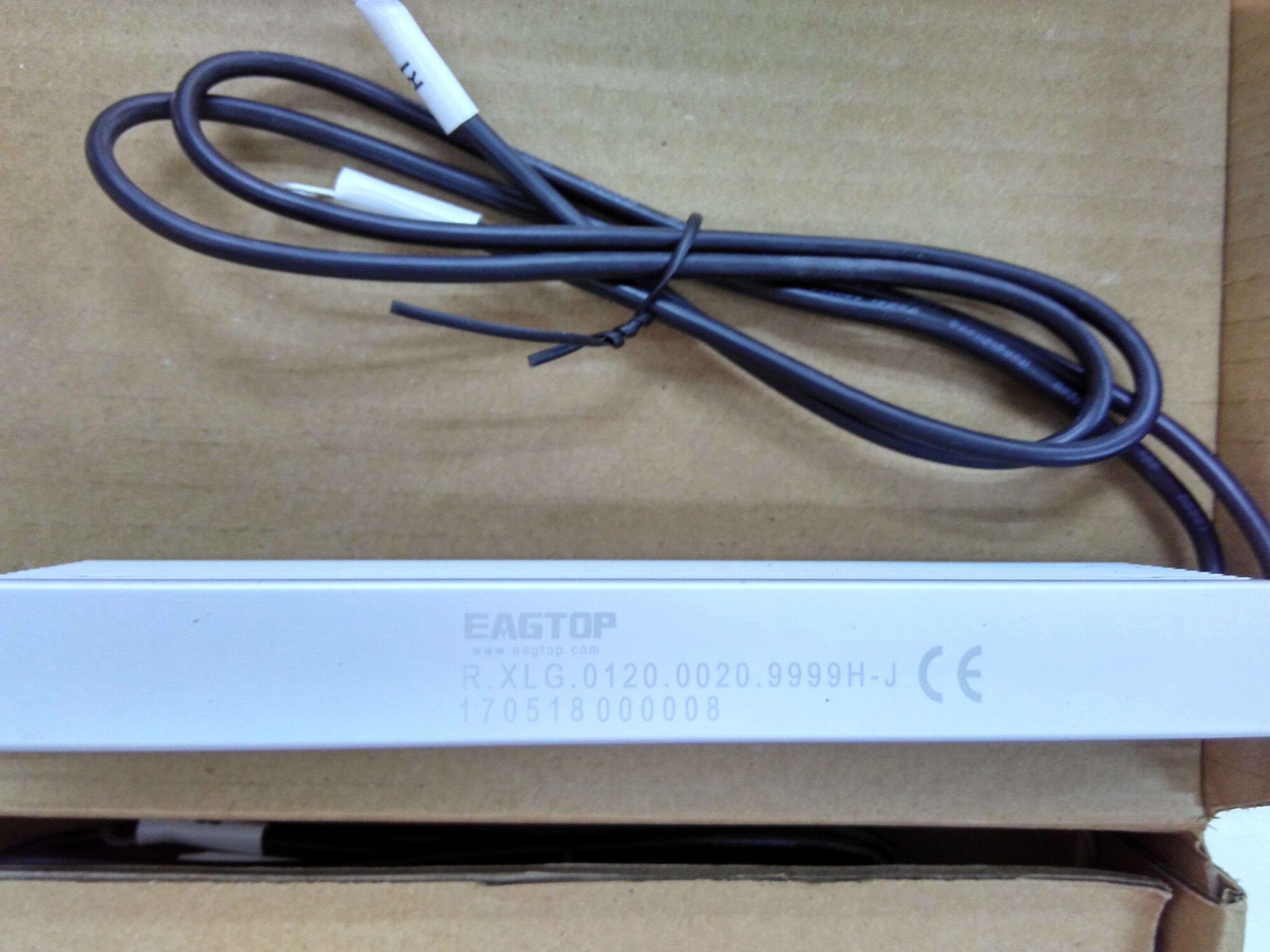

Product: Trapezium Aluminum Housed Wirewound Resistor
Features
: 1. Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment
2. Small size, high power load.
3. High insulating capacity, encapsulation by non-flame inorganic material good performance in vibration.
4. Multi connection form will be easily to fix
5. Widely used in Power supply, Transducer, Elevator, Arena audio and high requirement equipment Industry.
6. Resistance tolerance± 1%, ± 2%, ± 5%, ± 10%.
Specification
| Item | Specification | Size mm |
| 1 | Aluminum resistance 60W | 20*40*105 |
| 2 | Aluminum resistance 80W | 20*40*110 |
| 3 | Aluminum resistance 100W | 20*40*115 |
| 4 | Aluminum resistance 120W | 20*40*165 |
| 5 | Aluminum resistance 150W | 20*40*185 |
| 6 | Aluminum resistance 200W | 30*60*165 |
| 7 | Aluminum resistance 300W | 30*60*215 |
| 8 | Aluminum resistance 400W | 30*60*265 |
| 9 | Aluminum resistance 500W | 30*60*285 |
| 10 | Aluminum resistance 1000W | 30*60*335 |
More details, pls feel free to contact us.
Details:
Place of Origin: China (Mainland)
Type: Variable Resistor
Technology: Metal Alloy
Package Type: Throught Hole
Resistance: 1R-100K
Resistance Tolerance: ± 1%, ± 5%, ± 10%
Rated Power: 50W, 100W, 150W
Temperature Coefficient: ± 300PPM/ ° C
Operating Temperature: -55 ° C~250 ° C
Shape: Trapezium type
Soldering area: Over 95%
Size: Small
Surface: Aluminum crust surface
Insulating capacity: High
Max. Working voltage: 300V~2300V
Watt and dimensions: Customize is available
Detailed Product Description
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
