Aluminum XLPE Insulation PVC Sheathed Power Cable
| Price: |
US $ 0.1/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Aluminum XLPE insulation PVC sheathed power cable
Key Words: power cables
Company Pictures
Product Description

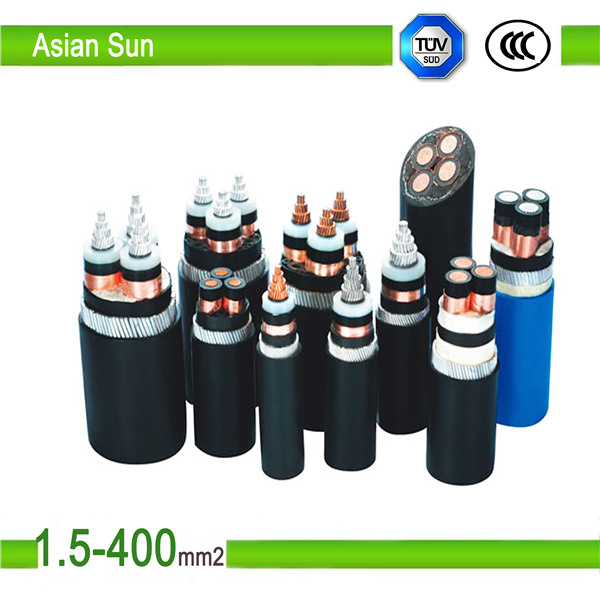

Application1. Rated voltage: Rated voltage of cable U0/U(Um): 0.6/1(1.2)kV2. The rated temperature of the cable conductor: The maximum assigned temperature of the cable conductor is 90°C.3. Ambient temperature for laying: During the cable laying, the ambient temperature must be above 0°C, otherwise the cable need be preheated.4. The bend radius: The minimum bending diameter must be above the following standard. Products Pictures:
| Type | Name | Main Application |
| Cu Core | Al Core |
YJV
YJY | YJLV
YJLV | XLPE insulated,PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid |
YJV22
YJV22 | YJLV22
YJV22 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force |
YJV32
YJV32 | YJLV32
YJLV32 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force |
YJV42
YJV42 | YJLV42
YJLV42 | XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
The minimum bend radius of the cable:
Item | Single Core | Three Cores |
Unarmored | Armored | Unarmored | Armored |
Minimum bend radius of the cable in
the course of installation | 20D | 15D | 15D | 12D |
The minimum bend radius of the cable
close to the junction box and teminal | 15D | 12D | 12D | 10D |
Note: D is outer diameter of the cable. |

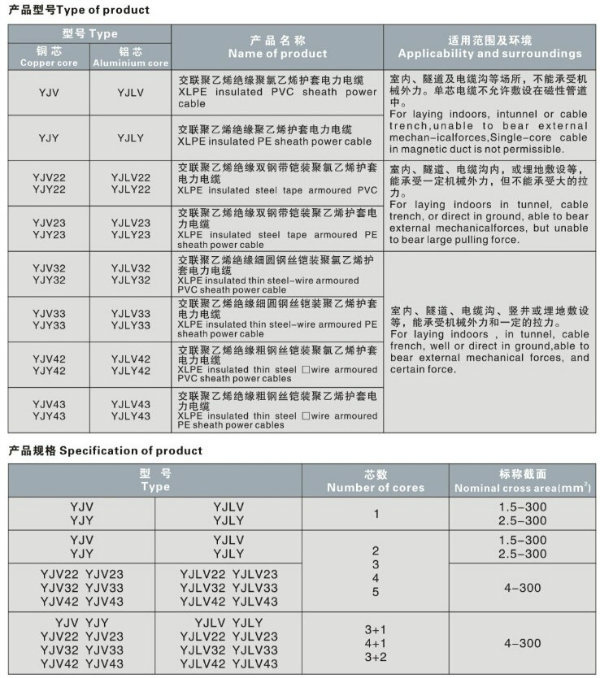

Power Cables Series Code:

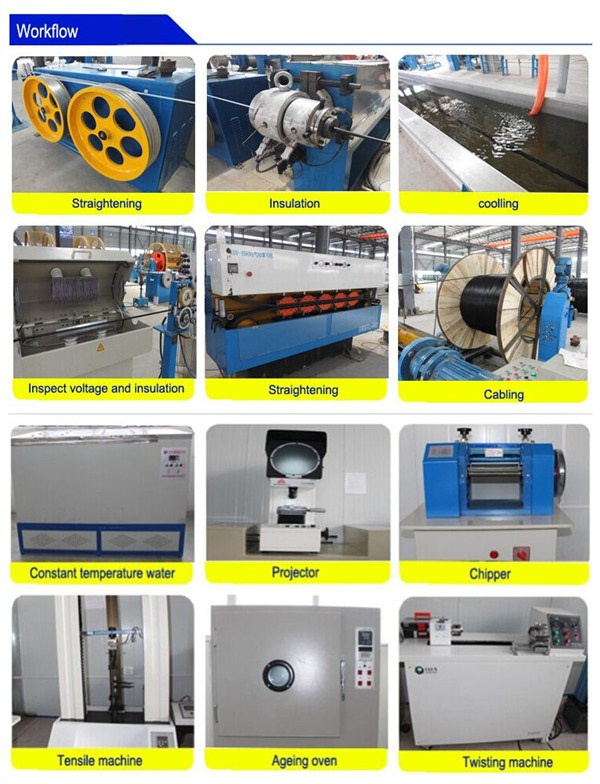

Factory Pictures Introduction
Packaging & ShippingPackaging Pictures:
Shipment terms: By FOB or CIF by sea.By DHL, UPS, Fedex are also available.Our Services
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need. 1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
Contact us:
Lisa Jiang
Department sale manager
International Trade Department
Luoyang Dayuan Cable Factory Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-13213593625
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/
==================================
| Prod Model: |
Ls-Power Cable |
| Type Name: |
Electric Power Cable |
| Voltage: |
Low Voltage 0.6/1kv |
| Installation Application: |
Power Station, Power System |
| Cable Type: |
Multi Cores Stranded |
| Warranty: |
17 Years |
| Test Voltage: |
5kv |
| Authentication: |
CCC, TUV, ISO9001, Ohsas etc. |
| Factory: |
Yes |
| Manufacturer Experience: |
Since 2006 |
| Company Brand: |
Dayuan |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
TUV |
| Brand: |
Dayuan |
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
