Amt2001 Humidity Temperature and Humidity Capacitor Module, Analog Output Signal Humidity Module
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

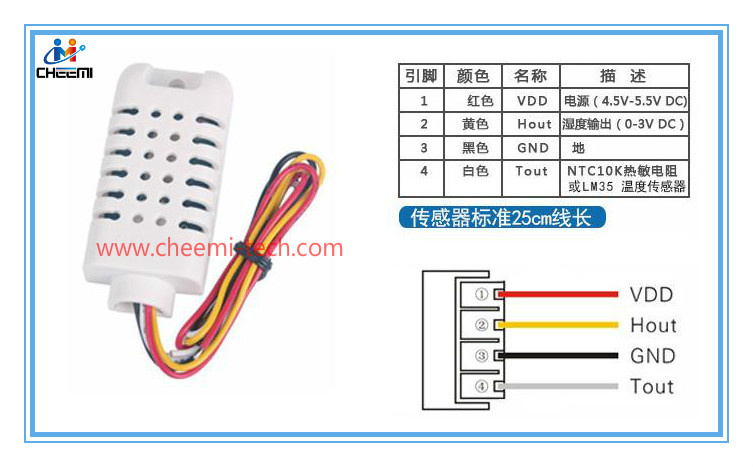

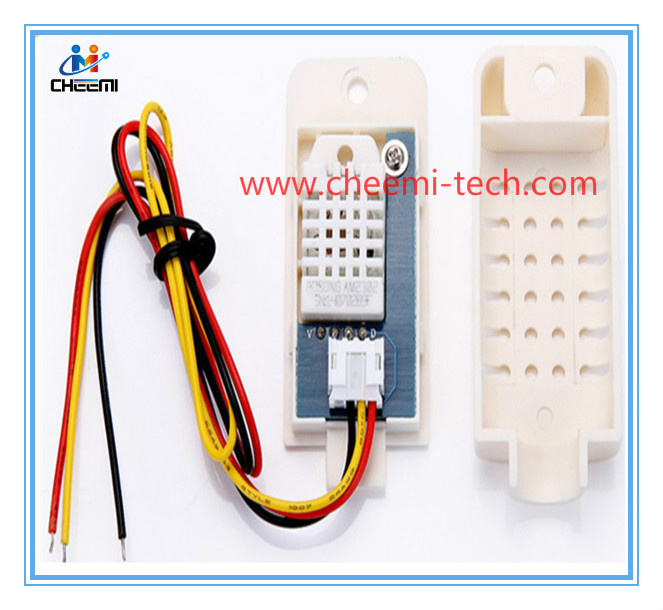

AMT2001 Temperature and Humidity Sensor
Specification | Model | AMT2001 |
| Supply voltage | 4.2 to 5.5V DC |
| The output | 0-3V(temperature0-0.8V) |
| Current consumption | 2mA |
| Using temperature range | -40~80ºC |
| Using humidity range | 0~99.5%RH |
| Humidity measurement range | 0~99.5%RH |
| Temperature measurement range | -40~80ºC |
| Storage temperature Range | 0~80ºC |
| Storage humidity Range | less than 95%RH |
| Humidity measurement precision | ±3%RH (at 25ºC,60%RH,Vin=4.2-5.5V) |
| Temperature measurement precision | ±0.5ºC (at 25ºC,60%RH,Vin=4.2-5.5V) |
| Standard humidity output voltage (at 25ºC, Vin=5.0V) |
| Relative humidity(%RH) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Output voltage(V) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.5 | 2.8 | 3 |
| Standard temperature output voltage |
| Relative temperature(ºC) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Output voltage(V) | 0.0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
| NTC10K thermistor temperature corresponding to resistance table |
| Temperature(ºC) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Resistance(kΩ) | 27.9 | 18.22 | 12.12 | 8.31 | 5.8 | 4.12 | 3.0 | 2.21 | 1.66 |
Product Details
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
CHEEMI TECHNOLOGY CO.,LIMITED.
Certification: ISO9001, CE, ROSH.
( Your reliable sensor-solution partner for Hall Current & Voltage Transducers, Proximity Switches/sensors, RTD Temperature Sensors, Current Transformers, Pressure Transmitter, Liquid Level Transmitter. )
Address: 22 Building, XianlongWan, Xianyin South Road, Qixia District, Nanjing City, Jiangsu Province, China.
Post code: 210000
Tel: +0086-025-85996365
Web: www.cheemi-tech.comPackage * All our sensors will be well packed with bubble & carton.
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.Our Commitment * Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 10+ years experience about sensors;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.
| Prod Model: |
AMT2001 |
| Temperature Range: |
-40c to +80c |
| Supply Voltage: |
DC 3.3~5.5V |
| Measuring Medium: |
Temperature and Humidity |
| Certification: |
Ce RoHS ISO |
