| Prod Model: |
RFID Glass Capsule Tag |
Product Description

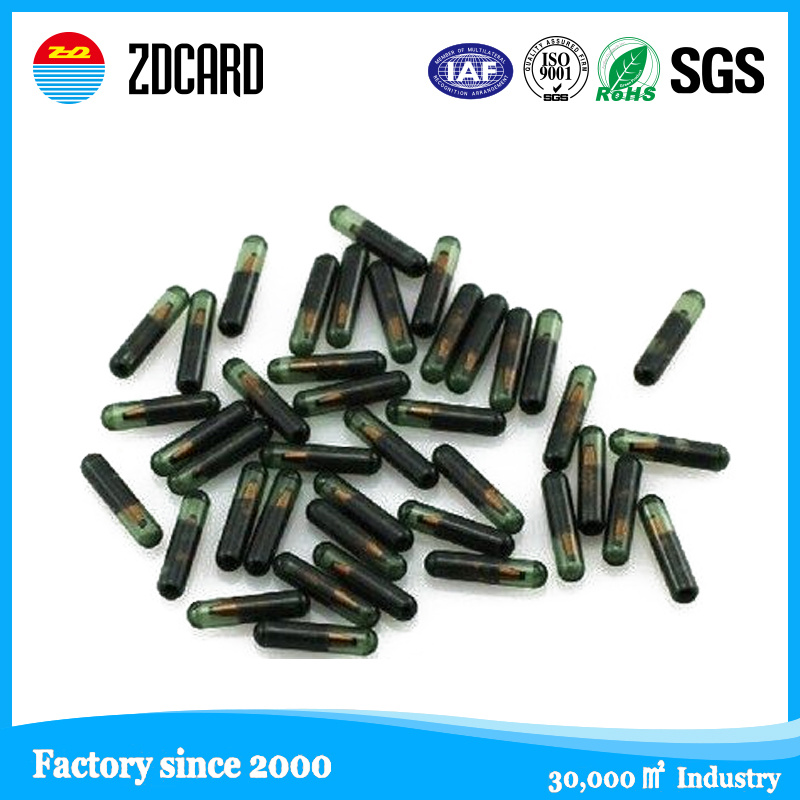

Animal Tracking RFID Capsule Glass Tag / Small Pet ID Microchip
Use a hidden RFID products can track information, be high-tech digital anti-counterfeiting. And in the efficient operations, reliable trial installation will bring you a great convenience and effectiveness.
RFID Animal Bio-glass Tube 1.4x8mm now is the smallest sized pet microchip, widely used for tagging fish, mice, etc such very small animals; while 2x12mm is the common sized and popularly used on the market for dog, cat, horse, etc. At so far, we just developed a new product, 1.4x8mm in FDX-A format, as far as we know that, 1.4x8mm could only be FDX-B format because of the big rfid chip's size, so, we now are the unique manufacturer who can supply FDX-A glass transponders at the smallest size 1.4x8mm!
For pet microchip used for animal identification(or tagging animals), there are 3 standard:
ISO11784/785 FDX-A, FDX-B and HDX.
Material: glass, with ferrite core inside
Operational Frequency: 134.2Khz
Available Chip: EM4305
Standard ISO: 11784/11785
Modulation: FDX-B
Opctional SizeFDX-A: 1.4x8, 1.5x8, 2x6, 2x8, 2x10, 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm
FDX-B: 1.4x8, 1.5x8, 2x6, 2x8, 2x10, 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm
HDX: 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm
In a word, RFID pet microchiptag is an easy solution for animal identification and tracking. Made of high quality Biocompatible glass, compaly with ISO11784/785 FDX A/B, HDX; our rfid glass tags are safety and could work with excellent performance, 5-8cm with our readers, or even longer upon readers' antenna and power.
Product Specification | Chip | EM4305,4102,HITAG-S256 |
| Frequency | 125KHz / 134.2KHz |
| Standard | compliance with iso 11784,11785 standard |
| Size | 1.4x8mm, 2x8mm, 12x8mm, 3x15mm |
| Material | bio-coating,bioglass,antibacterial,antiallergic |
| working temperature | minus20 ºC~50ºC; storage temperature:-40 ºC~70ºC |
| Working durability | more than 20 years;rewritable times: more than 1000000 times |
| Reading distance | 1-10CM |
| Sample | Free available for testing |
| Application | animal identification/tracking |

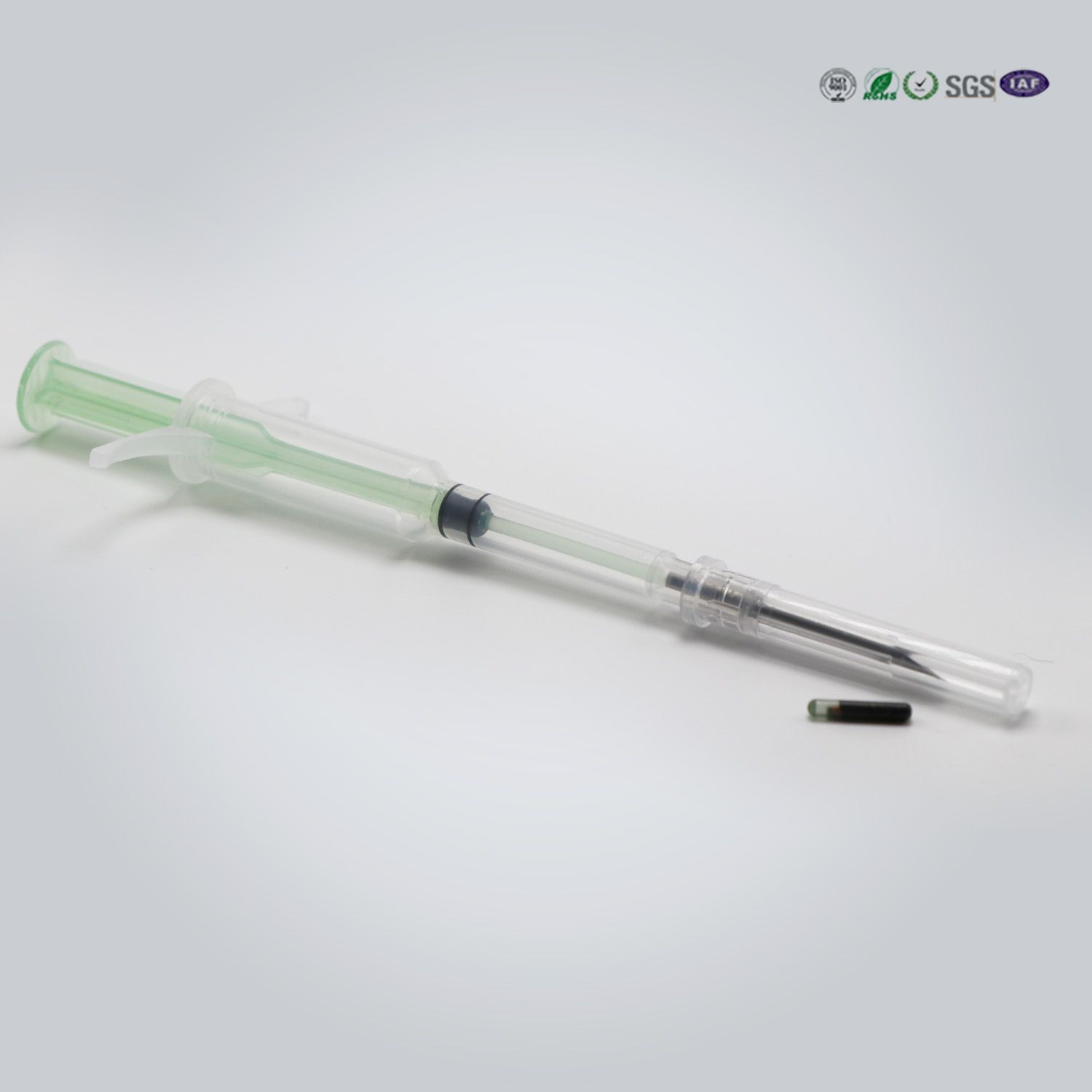

Product DescriptionGlass Transponder is a flexible and reliable solution for livestock and pet identification.Our products contain the syringe body and RFID glass transponder. It meets the international standard of animal identification.The biggest feature is the chemical stability is good,small size,durable,immeresed in water can also read and write.
It is fully automated manufacturing and direct-bonding technology ensure RFID tag reliability. The material is biochemical coating, bioglass, antibacterial, anti-allergy, making it harmless to animals. We offer sizes to fit any animal, from fish and small mammals, to cats, dogs and horses.
The glass transponder help optimize livestock production and productivity through individualized life cycle management, monitoring and feed control.Once in place in a system, the LF RFID glass transponder is maintenance free and can last for many years making it extremely cost effective.The glass transponder is designed and produced with the super RFID chip from EM Microelectronic and it has both read and write functions, and also has a unique design of data security.
Product Characteristics1.Resistant to most chemicals
2.Livestock Identification
3.Supply with sterilized syringes
4.Flexible solution
5.Available in several sizes and frequencies
6.Write-protectable memory
Company IntroductionZDCARD Group is based on Shengdong Industrial Co., LTD. Our company insist on quality and service improvement. We build up a complete production system including card, which covers a big market share in international market. We supply Russian and British E-cards, ID and ATM cards of many Middle East, Africa and South America countries, 2015 Nigeria voter's cards, and metro chip cards for East European countries.
We invested 300 million RMB on our own industrial zone covering 20,000 square meters in Longgang District. We are the production and research center of Sun Yat-sen University and we established Guangdong Zhendong Chengxin Smart Technology Co.,LTD with Micro-Electronics Research Center of Sun Yat-sen University. There are 50 doctors, post-doctorals and professors in our team. Our national lab is an important R&D base of chip, COS, Smart City and logistic solution. Nowadays, our group is working with government to build up a Chinese Chip, Chinese Brain strategy.
Outstanding Service 1.OEM service. we can produce according to your specific requirements
2.Excellent after-sale service. we have ASS department to follow up your frank feedback and kindly comment for your sample & order.
3.Good production capacity to guarantee quick on-time delivery.
4. Safe packaging in order to goods received well in your hand.
5.All enquiries & emails replied quickly, within 8 hours at least.
6,Production time : 5 - 10 working days
7, Shipping: By express : 3-5 days By air : 5-10 days By sea : 12-25 days
Guarantee Statement 1.Refund without condition if there is quality problems
2.Lifetime maintenance service and technical support.
Payment1. payment method: T/T, L/C, Western Union, Paypal
2. payment term: 50% deposit, the balance against goods ready
