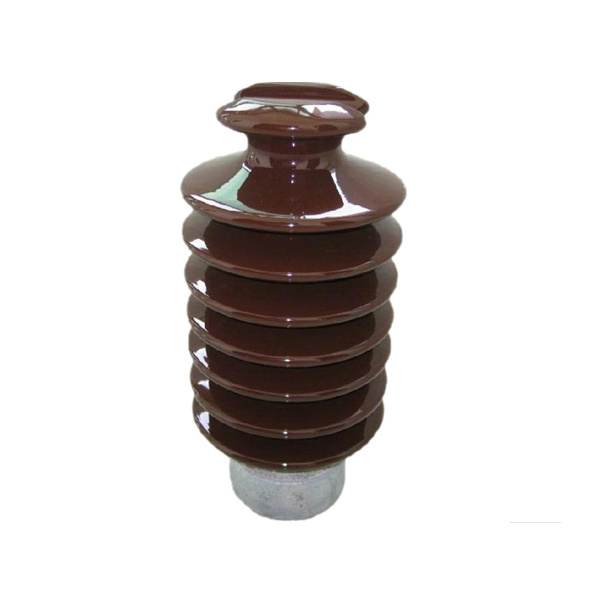

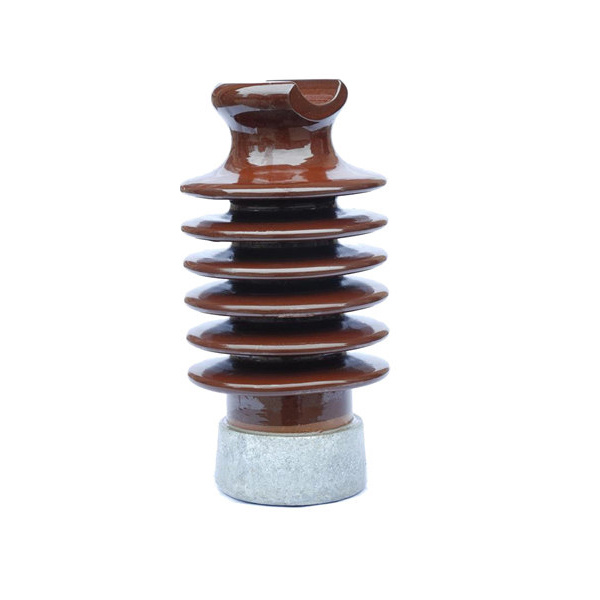

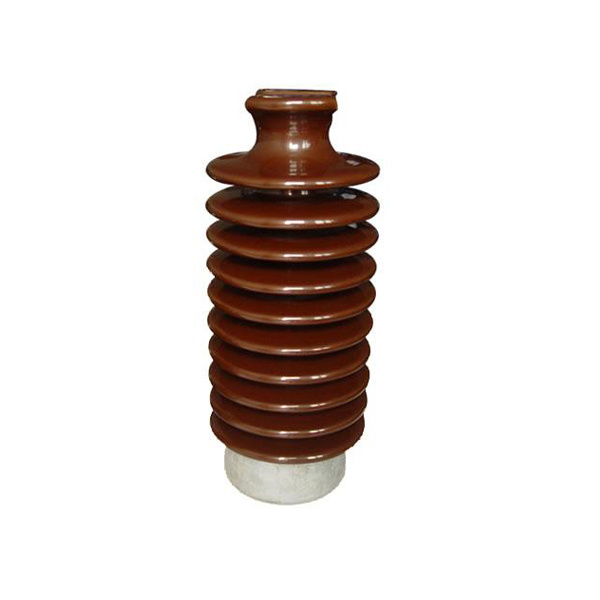

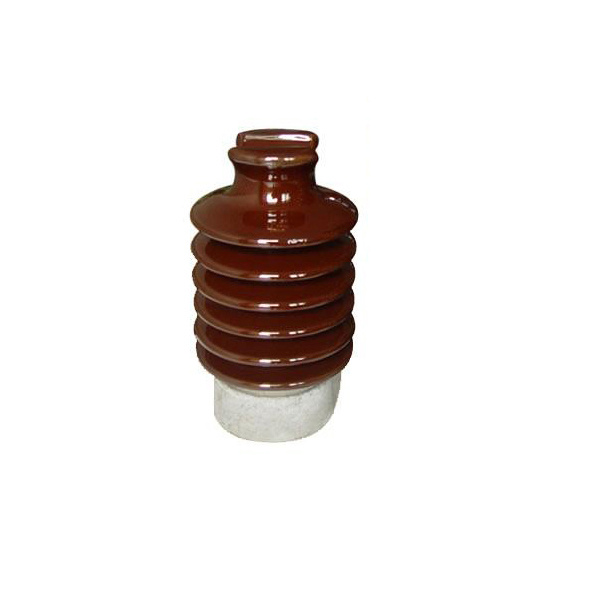

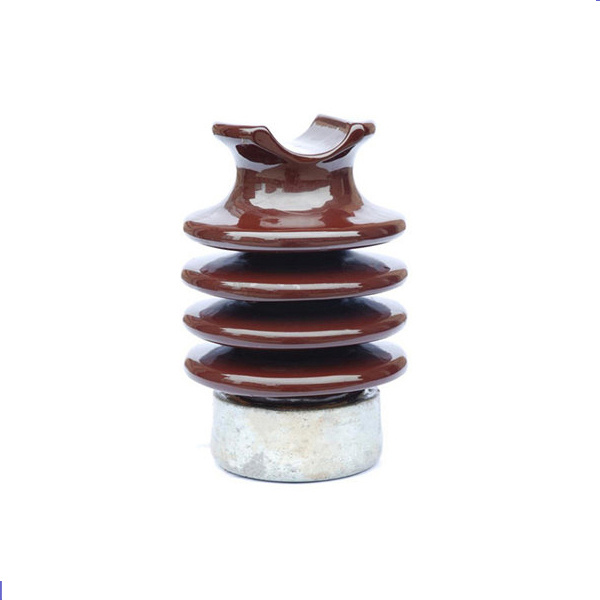

ANSI 57-1 High Voltage Porcelain Line Post Insulator

Name: ANSI 57-1 High Voltage Porcelain Line Post Insulator
Brand: all-electronics-online.com
SKU: 837926275
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

specifications
1. original insulator producer
2. superior properties of low and medium temperature resistance;
3. strong aging resistance;
4. nice appearance & long service time.

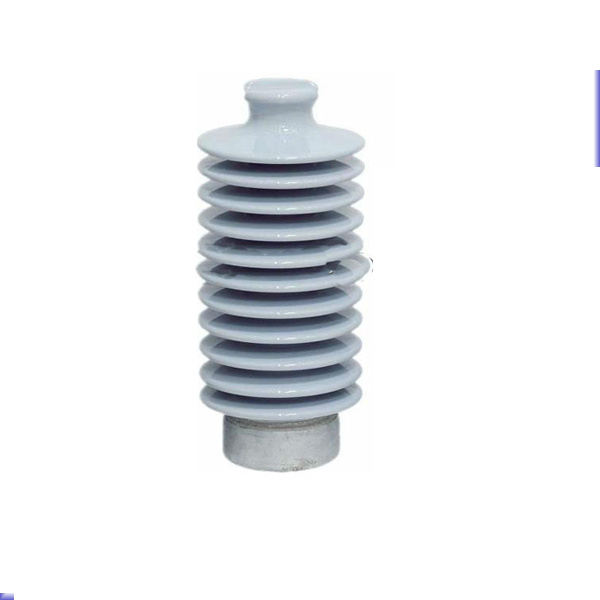

5. comman glaze and semi-conductor glaze, color brown and gray both available.
6. free sample, professional porcelain insulator supplier.

product description
porcelain spool insulator details and parameters

ANSI CLASS	With long stud	57-1L	57-2L	57-3L	57-4L	57-5L
ANSI CLASS	With short stud	57-1S	57-2S	57-3S	57-4S	57-5S
Fig. No.		1	2	3	4	5
Creepage Distance (mm)		356	559	737	1016	1143
Dry Arcing Distance (mm)		165	241	311	368	430
Cantilever Strength(kN)		12.5	12.5	12.5	12.5	12.5
Power Frequency Flashover Voltage	Dry /kV	70	100	125	140	160
Power Frequency Flashover Voltage	Wet/kV	50	70	95	110	130
Critical Impulse Flashover Voltage	Positive/kV	120	160	200	230	265
Critical Impulse Flashover Voltage	Negative/kV	155	205	260	340	380
Radio Influence voltage	Test Voltage to ground/kV	15	22	30	44	44
Radio Influence voltage	Maximum RIV at 1MHz/uV	100	100	200	200	200

Our factory
we are a combination of trade and manufacturer that professional in insulators . our manufacturer has modern techniques, with advance semiautomatic production lines. main products have: suspension disc insulators, pin insulators, spool insulator, stay & starain insulators, line post insulator, shackle insulators, composite insulators and glasses insulators etc..

Prod Model:	57-1
Application:	Low-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	A Type Insulator
Brand:	Conic

CONIC TOOLS focus on making professional quality hand tools, related hardware products and some electric fittings. CONIC TOOLS products are all strictly controlled at every step during designing, producing, packing and quality controlling process. CONIC TOOLS tools believe that the quality tools refer to the usability, efficiency and performance. Different from the OEM market, the advantages of CONIC TOOLS tools are: Affordable prices, Reliable quality, Ready stocks, Rapid delivery, without restrictive MOQ etc.

Product ranges - We provide full range of hand tools, products including the holding tools, mechanic tools, fastening tools, striking tools, cutting tools, measuring tools, painting tools, PPE items, Insulated tools, porcelain insulator, electirc clamp etc.

Quality control - Our well equipped testing center has the torque life tester, impact tester, hardness tester, drawing tester, material tester, high voltage tester etc., which make sure the quality control process and meet the special QC requirement from the customers.

CONIC TOOLS supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Expecting to cooperate with you! ! !
