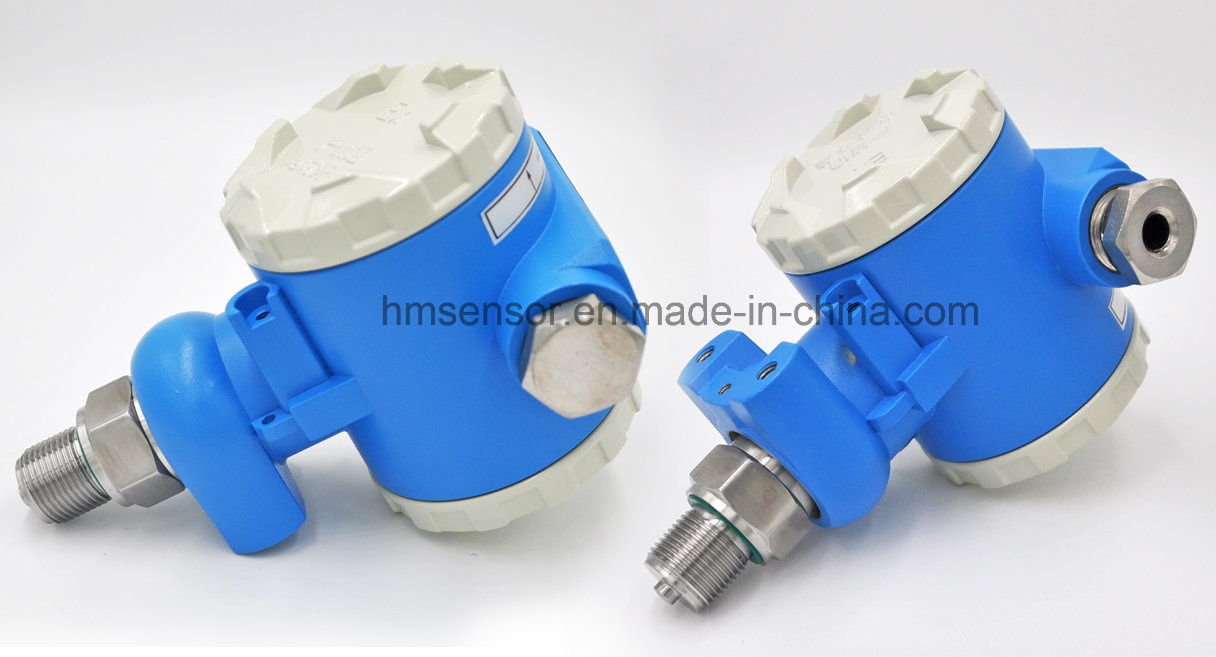

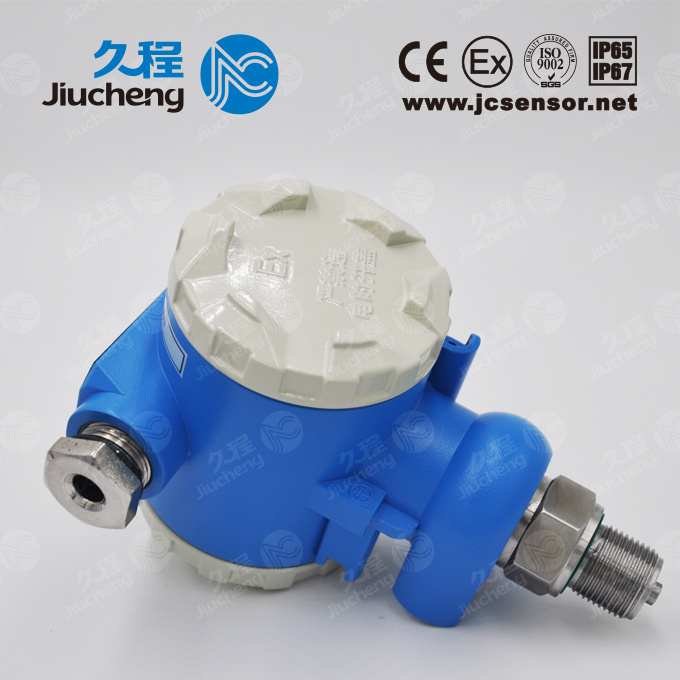

Product Overview JC660 series of anti-explosion pressure transducer is specially designed for high-explosion dangerous site. It can provide stable and accurate measurement at an absolute pressure, gauge pressure and differential pressure of liquid or gas medium from -100KPa to 200MPa. It welds the existing multi -crystalline silicon film sensing element with the enclosure using welding technology and can be customized rapidly according to the regulations to meet the individualized needs of different users. With built-in amplification circuit and diversified structural forms, it can be equipped with M 20 x 1.5 or G1 / 2 internal thread explosion-proof flexible tube connector. Featured by good performance, small size and flexible design, JC660 series anti-explosion pressure transducer has the advantages of a very high ratio of performance to cost and long service life compared with traditional explosion-proof transducers. It is widely used in oilfield, mining well, chemical, electric power, boiler, natural gas and other fields.
JC660 - E type pressure transducer is an intrinsically safe explosion-proof pressure transducer, with explosion- proof marking of Ex iaII CT6 and explosion-proof conformity certificate number of CNEx07.0988. It boasts stable and reliable performance supporting the use of repetitive-use type safety energy limiter or safety barrier.
JC660 - D type pressure transducer is a flameproof pressure transducer, with explosion - proof marking of Ex d IICT6 and explosion-proof conformity certificate number of CNEx08.2405.
JC660 - ED type is an intrinsically safe flameproof pressure transducer, with explosion -proof marking of Ex ia II CT6 and Ex d II CT6. It is safe and reliable and simple and convenient to operate, without the installation of safety barrier when installed and used.
Performance parameters| Measuring range | -100KPa~0~200Pa...5KPa...200MPa |
| Overload capacity | Two times FS pressure (1.1 times FS pressure for 100MPa product) |
| Pressure type | Gauge pressure, absolute pressure, differential pressure |
| Measured medium | Gas or liquid compatible with 316 stainless steel |
| Overall accuracy(Non-linearity, repeatability, lagging) | ±0.1%FS | ±0.25%FS | ±0.5%FS |
| Long-term stability | Typical: ±0.1%FS/ year | Maximum: ±0.2%FS/ year |
| Zero point temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.05%FS/ºC |
| Sensitivity temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.05%FS/ºC |
| Operating temperature | -20~ 85ºC |
| Compensation temperature | -20 ~60ºC |
| Range of power supply | 12~36VDC (24VDC generally) |
| Signal output | 4~20mA/1~5VDC/0~5VDC |
| Load resistance | ≤(U-12)/0.02 Ω |
| Insulation resistance | ≥2000MΩ(testing condition100VDC) |
| Resolution | Infinite small (theoretical) 1 / 100000 (general) |
| Response time | ≤1 ms |
| Influence of vibration | Within mechanical vibration frequency 20Hz ~ 1000Hz, change of output is less than 0.1% FS |
| Weight | Approx. 0.5kg |
Product Features* Intrinsically safe and flameproof certification: Ex ia II CT6, Ex d II CT6* Measuring range: -100KPa~0~200Pa...100KPa...200MPa * Gauge pressure, absolute pressure and differential pressure are available* Adoption of explosion-proof genuine HELM multi - crystalline silicon film chip, with stable and reliable performance and long service life* Reverse polarity and over-voltage protection of power supply* Explosion - proof design, safe and reliable * Strong anti-interference and immunity to vibration and excellent long -term stabilityOutline Drawing

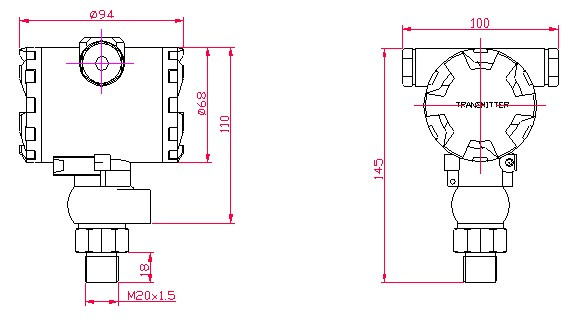

Outline Drawing I

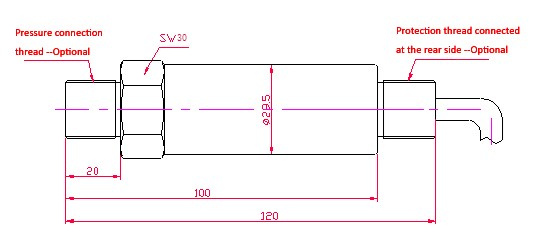

Outline Drawing II Ordering Guide
| JC660-13 | Anti-explosion Pressure Sensor |
| | Pressure type | Gauge pressure; absolute pressure (A); differential pressure (D) |
| | Range | (0~ X MPa) Measuring range |
| | | Code | Overall accuracy (linearity + repeatability + lagging) |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Signal Output |
| | A1 | 4~20mA |
| | V1 | 1~5V DC |
| | V2 | 0~5V DC |
| | V3 | 0.5~4.5V DC |
| | Code | Additional functions |
| | F1 | M20x1.5 external thread |
| | F2 | G1/4 external thread |
| | F0 | Special |
| | W1 | Cable type (IP67, 2m) |
| | W2 | HSM socket type (IP65, DIN43650) |
| | W3 | Outline drawing (I) |
| | W4 | Outline drawing (II) |
| | W0 | Special |
| | L1 | Pointer scale (0 ~ 100%) display |
| | L2 | 4LCD display |
| | L3 | 4LED display |
| | P | Flush diaphragm |
| | E | Intrinsically safe Ex iaII CT5 |
| | D | Flameproof Ex dII CT6 |
| JC660 -13 -1 -A1 -F1 -W3 -D |
Tips of Selection- The measured medium shall be compatible with the material contacting with the product.
- The code E, an additional function code for selection, namely, intrinsically safe explosion-proof Ex iaIICT6 must be power supplied via safety barrier.
- The code D, an additional functional code for selection, namely, flameproof Ex dIICT6 is preferably provided with explosion - proof flexible hose for the electrical power cable connected at the rear side.
- The options W1 and W2 are general structural encapsulation and only used for HM60 - E intrinsically safe explosion-proof pressure transducer.
- It is unnecessary to install safety barrier on JC660 - ED intrinsically safe flameproof pressure transducer during system use.
- Please contact us for other special requirements and clearly indicate them in the order.
