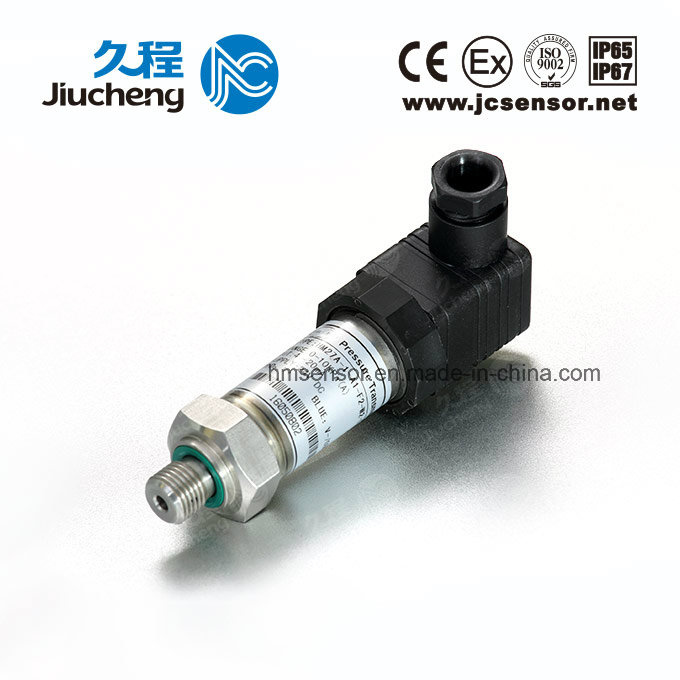

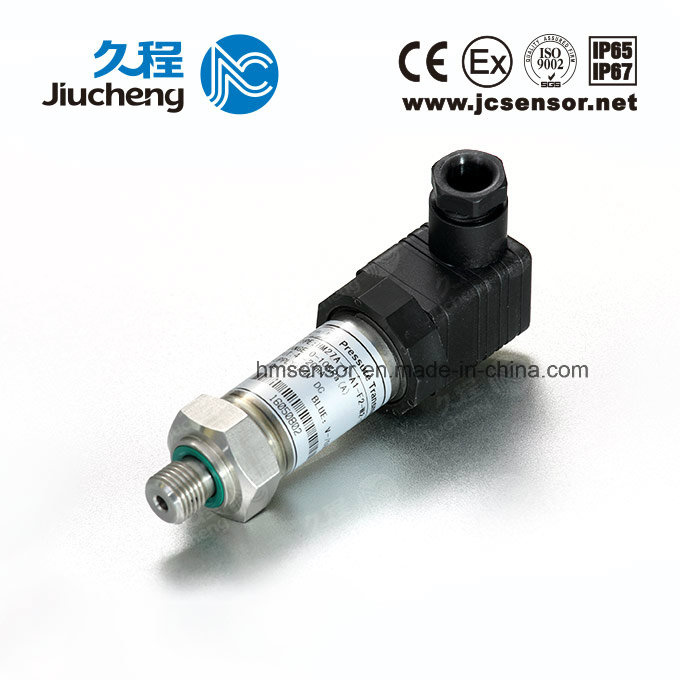

Anti-Corrosion Ceramic Absolute Pressure Transmitter (JC650-38)
| Price: |
US $ 165-350/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
Product Overview JC650 anti-corrosive pressure transducer adopts foreign high-performance anti-corrosive tantalum diaphragm force-sensing chip, supported with high-precision electronic element. It is assembled through strict process flow. Featured by strong corrosive and wear resistance etc, this series of product has very well solved the pressure measurement problems of strong and weak corrosive gas or liquid under domestic special applications.This series of pressure transducer can be widely used in petroleum, chemical, metallurgical, electric power, environmental protection and other fields to automatically measure and control the gauge pressure, absolute pressure and negative pressure of corrosive gas, liquid, and vapor.
Performance Parameters | Measuring range | -100KPa~0~5KPa…100KPa...60MPa |
| Overload capacity | Two times FS pressure |
| Pressure type | Gauge or absolute pressure |
| Measured medium | Strong and weak corrosive gas or liquid |
| Overall accuracy | Typical: ±0.25%FS | Maximum: ±0.4%FS |
| Long - term stability | Typical:±0.1%FS/ year | Maximum: ±0.2%FS/ year |
| Zero point temperature drift | Typical:±0.015%FS/ºC | Maximum: ±0.03%FS/ºC |
| Sensitivity temperature drift | Typical:±0.015%FS/ºC | Maximum: ±0.03%FS/ºC |
| Response time | ≤3mS |
| Resolution | Infinite small (theoretical), 1/100000 (general) |
| Medium temperature | -20~ 85ºC |
| Compensation temperature | -10 ~ 60ºC |
| Ambient temperature | -20 ~ 80ºC |
| Service life | ≥1x108 pressure circulation(25ºC) |
| Diaphragm material | Tantalum diaphragm |
| Enclosure material | PVC, titanium alloy, PTFE |
| Load resistance | ≤(U-12)/0.02 Ω |
| Protection degree | IP 65 - IEC 60529 for plug-in type; IP 67 - IEC 60529 for cable type |
| Intrinsically safe explosion-proof | Ex ia II CT6 |
| Weight | Approx. 250g |
Product Features*Tantalum diaphragm piezoresistive chip, with very strong corrosive resistance*Resistant to impact, vibration and wear *High accuracy: 0.25% FS 0.5%FS*Good stability: ≤0.2% FS / year, ≤0.02% FS / ºC*Without production process pollution; without any force transmission filling liquid*The enclosure can be made of PVC, titanium alloy or PTFE, depending on the customer's medium corrosion.Ordering Guide| JC650-38 | Anti-corrosive Pressure Sensor |
| | Code | Pressure type |
| | G | Gauge pressure ( may not be indicated) |
| | A | Absolute pressure |
| | Range | Measuring range |
| | ( 0~ X KPa or MPa) |
| | | Code | Overall accuracy (linearity + repeatability + lagging) |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | Code | Signal Output |
| | A1 | 4~20mA |
| | V1 | 1~5V DC |
| | V2 | 0~5V DC |
| | V3 | 0.5~4.5V DC |
| | Code | Additional functions |
| | F1 | M20x1.5 external thread |
| | F2 | G1/4 external thread |
| | F0 | Special |
| | W1 | Cable type |
| | W2 | Socket type |
| | W0 | Special |
| | E | Intrinsically safe explosion - proof type Ex iaIICT5 |
| JC650-38 (0~5MPa) -2 -V3 -F1 - W0 Pressure Sensor |
Tips of Selection1. The measured medium shall be compatible with the material contacting with the product.2. The code E, an additional function code for selection, namely, intrinsically safe explosion-proof Ex ia II CT5, must be power supplied via safety barrier.3. Please contact us for other special requirements and clearly indicate them in the order.
| Prod Model: |
JC650-38 |
| Measuring Medium: |
Gas Liquid Steam |
| Accuracy Grade: |
0.25% 0.4% Customized |
| Pressure Range: |
-100kpa...0...5kpa...60MPa |
