Anti-Theft Electricity Three Phase Four Wire Test Terminal Block

Anti-Theft Electricity Three Phase Four Wire Test Terminal Block
Price: US $ 4.52-4.77/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FJ6/DFY1Type
Rated Insulation Voltage: 660V,50Hz/60Hz
Rated Current: 5A(20A)
Product Name: Anti-Theft Electricity Terminal Block
Brand Name: Hyjxh
Quality Assurance: 18 Months
Delivery Time: Delivery Will Be Made 7days After Payment
Insulation Resistance: >30m&Omega
Product Of Origin: Zhejiang,China(Mainland)
Application: Conduct Electricity
Type: Anti-Theft Electricity
Material: Bakelite
Brand: Hyjxh

Product Description

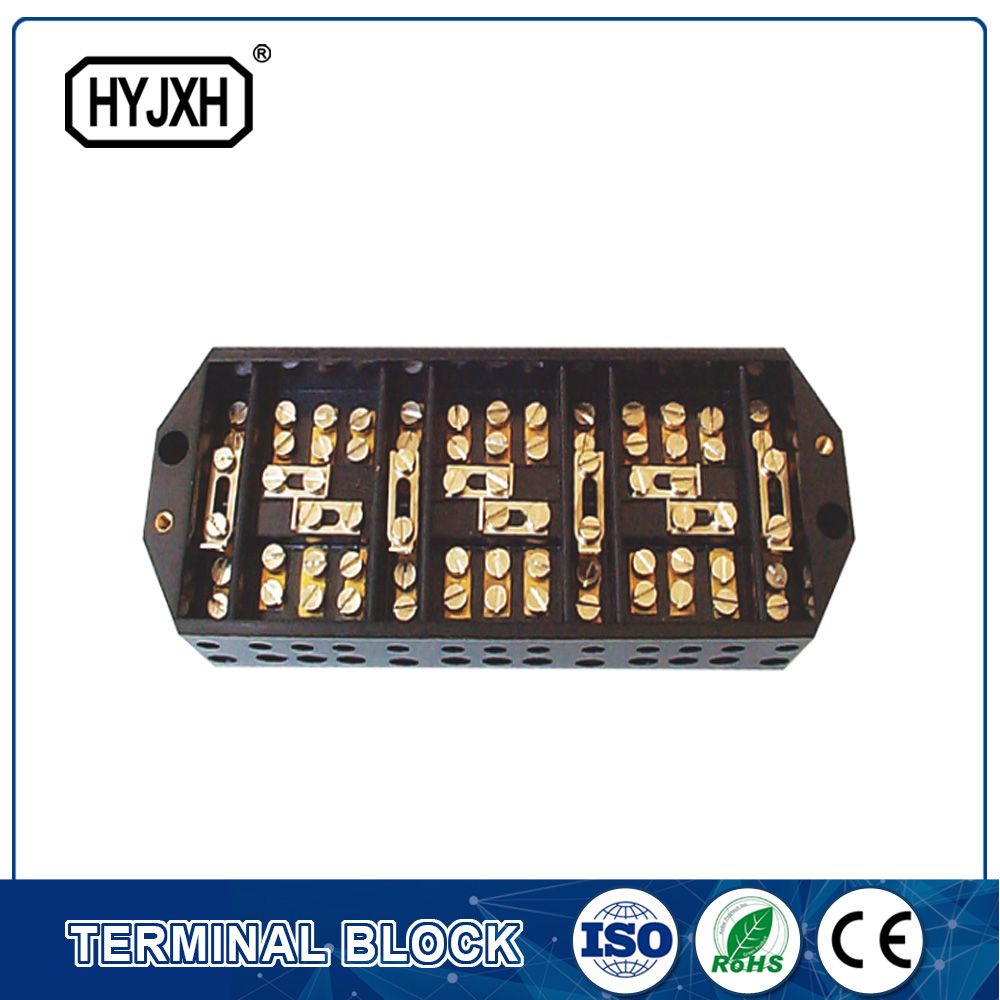

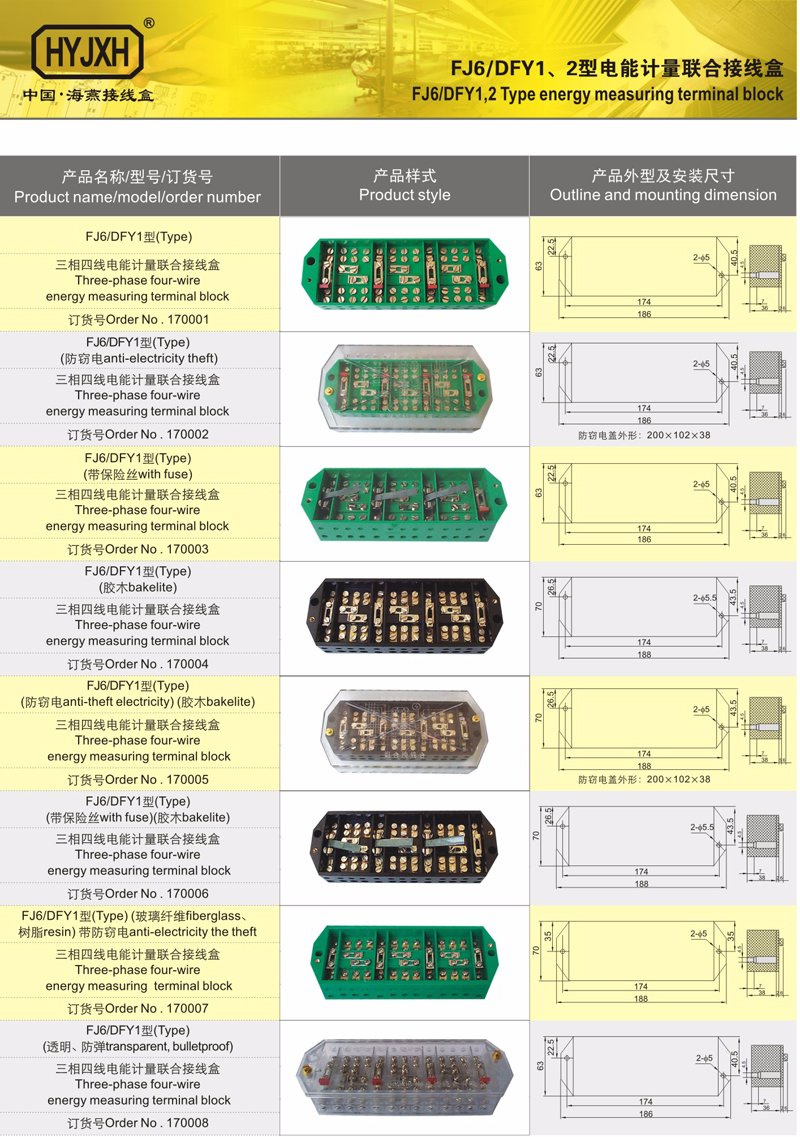

                      FJ6/DFY1 Type Anti-Theft Electricity Test Terminal Block
General

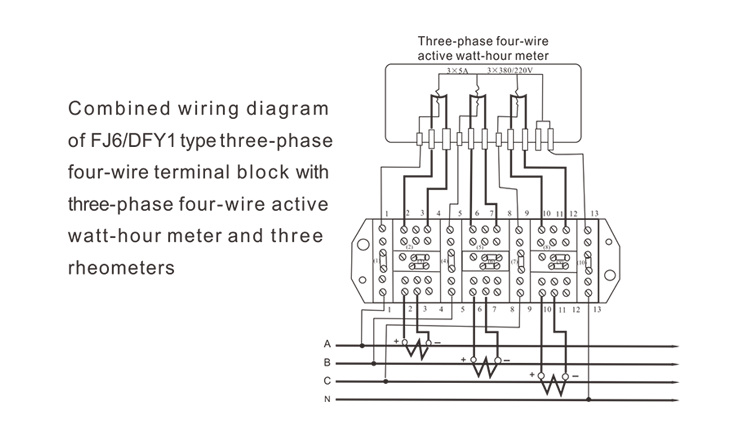

FJ6/DFY1, 2 type energy measuring terminal blocks are special terminal blocks applied for standard wiring in energy measuring equipments.They are also suitable for secondary circuit of rated voltage up to 660V and rated current up to 20A. They are used to change or inspect the electric equipments such as energy meter, electric instrument and relaying equipment under on-load circumstance. They can guarantee operation safety and improve fieldwork efficiency.
        In order to satisfy customers' demand, our company improves the design and adopts America-imported high-molecular polycarbonate material It has advantages of high impact resistance, ageing resistance, anti water-absorption, flame retardant, high temperature resistance. It not only has bright and elegant appearance, but also excellent product performance. It solves former products  problems such as fragile, easy mildew stain grow,or heavy CT secondary leakage, easy PT secondary breakdown, etc.. This kind of terminal block is an ideal successor of the older generation.
        The technical parameter of this product is in conformity with international standards. Feedback from users shows that new type of this terminal block
is capable of preventing missing electric energy measurement.It is helpful for energy measuring work, and can put an end to energy
measuring accident effectively.
Main technical parameter
1,Rated insulation voltage:660V,50Hz/60Hz
2,Rated current:5A(20A)
3,Power frequency withstanding voltage:3000V/min
4,Insulation resistance:>30MΩ
5,Ambient temperature:-40ºC~+60ºC







China. Haiyan Terminal blocks Co., Ltd is a professional manufacturer integrating researching and developing, producing and selling large current terminal blocks, which was founded in 1991.

Haiyan terminal block brand is renowned at home and abroad. Independent research and development of electric energy metering box series, meter box series branch terminals, large current terminals, complete sets of electric control line dedicated terminal series, multi-purpose terminal series, T series, switch terminal terminal series, insulating puncture piercing connector series, Nylon cable tie series and all kinds of wiring equipment and other products, the company has also developed more than 100 series and more than 1500 specifications of the products.

Advanced production equipment and process technology, its capacity and scale are increasingly attractive. Insisting on the principle of, basing on new technology and new products", the company keeps to provide the products of high quality and advanced performance to meet the various market demands. The products are recommended by the around the power sector, the products are exported to Germany, the United States, Southeast Asia and so on, has been widely used at home and abroad.
+culture
Any resource can be exhausted, only cultural endless. The core power of Haiyan terminal blocks, the construction of tangible carrier from enterprise culture, it gave the platform for each employee to realize the value, when the majority of enterprises are still in the pursuit of a single product profit maximization, more and more customers has begun to pay attention to the products they bought, whether the production is in good working. Haiyan terminal blocks is trying to make sure that each product is manufactured in safe and environmentally friendly conditions. All employees can enjoy good welfare and corporate culture edification.
+ system
Haiyan junction box has a relatively independent core business system, operates the "Haiyan junction box" brand, strictly in accordance with the International Electrotechnical Commission Standard production. Haiyan junction won more than 100 patents, the company passed ISO9001 and ISO14001 certification in advance, the product won CE certification, CCC certification, CQC authorized by laboratory testing and qualification, has been awarded the independent rights of import and export. On the brand operation, it has formed more than 10000 retail terminals in more than 150 large and medium-sized cities throughout the country. Haiyan junction box purchased the international advanced testing equipment, procurement of electrical accessories in raw materials, Haiyan junction boxes are strictly in accordance with international standards to buy. In strict accordance with the international and national standards to produce, from a high starting point to design, development and manufacturing, which many products won national patent.
+ people
The company attaches great importance to the strength of personnel technology, the existing staff of more than 500 people, of whom more than 50 have senior technical titles, such as senior engineer. It has gradually realized the transition from "rule of man" to "rule of law". A quality service system has been formed to provide comprehensive support for manufacturers of various industries.
+ target
Base on the tenet of "safety, stability, pioneering and enterprising", the company always insists that the market is the foothold of the company, the customer is the teacher of the enterprise, and the customer satisfaction is the goal of the company's service. Through keeping pace with the times and constant innovation, Haiyan is always ahead of the age and takes the leading pace in the industry. To appreciate customer's long-time support and cooperation, also to develop new business realm, Haiyan sincerely welcome domestic and overseas customers and personage from each circle to cooperate for mutural brilliance.
