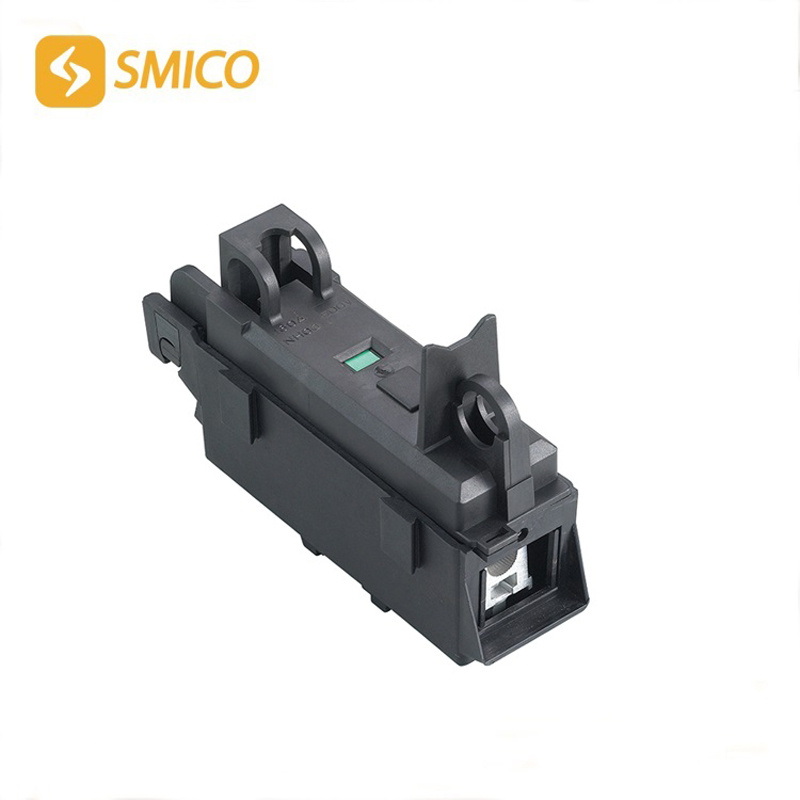

APDM-160 NH00 Fuse 160A Fuse Switch Disconnector

The basic function of 160A Fuse Switch Disconnector is suitable for NH00 fuse link, to protect and disconnector a network during faults and is specially designed for on-load switch. The switch offers a reliable medium for disconnector & protection of fully insulated open wire network. The fuse switch is versatile and is ideally suited for mountion directly to poles, transformer & cross arms.

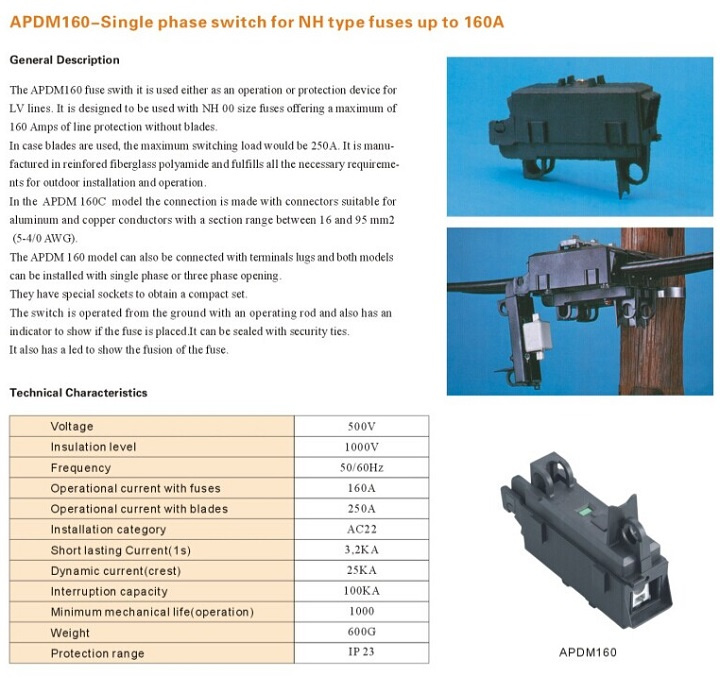

voltage	500V
insulation level	1000V
frequency	50/60HZ
Operational current with fuse	160A
Operational current with blades	250A
Installation category	AC22
Interruption capacity	100KA
Minimum mechanical life	1000
Weight	600G
Protection range	IP23

Features:
1. Designed for full load switching with fuse links of disconnector blades upto a rated current.
2. Mounting facility and unique modular design allowing one, two, three or more switches to be installed together to meet SP. TP or TPN system requirements.
3. Fully insulated made from corrosion proof, impact resistant, weather & UV resistant glass fiber reinforced polymide compound with high gladd content suitable for consistent performance under adverse climatic conditions.
4. The upper housing of the switch is hinged to the lower body and can be withdrawn by the insulated operation rod thereby enabling changing of fuse from ground level
5. Flexibility of linking a series of flaps for simultaneous operation.
6. The contacts, made up of ETP grade copper -duy plated are rigidly mounted in the housing independentof the terminal bolts. Single incoming & Double outgoing termination is provided in standard version.
7. Electrical & Mechanical fuse indicators are provided to show status of blown fuse.

Prod Model:	APDM-160
Voltage:	500V
Frequency:	50Hz
Operational Current With Fuse:	160A
Insulation Level:	1000V
Size Of Fuse:	Nh00
Fusing Speed:	Nh00
Brand:	Smico
