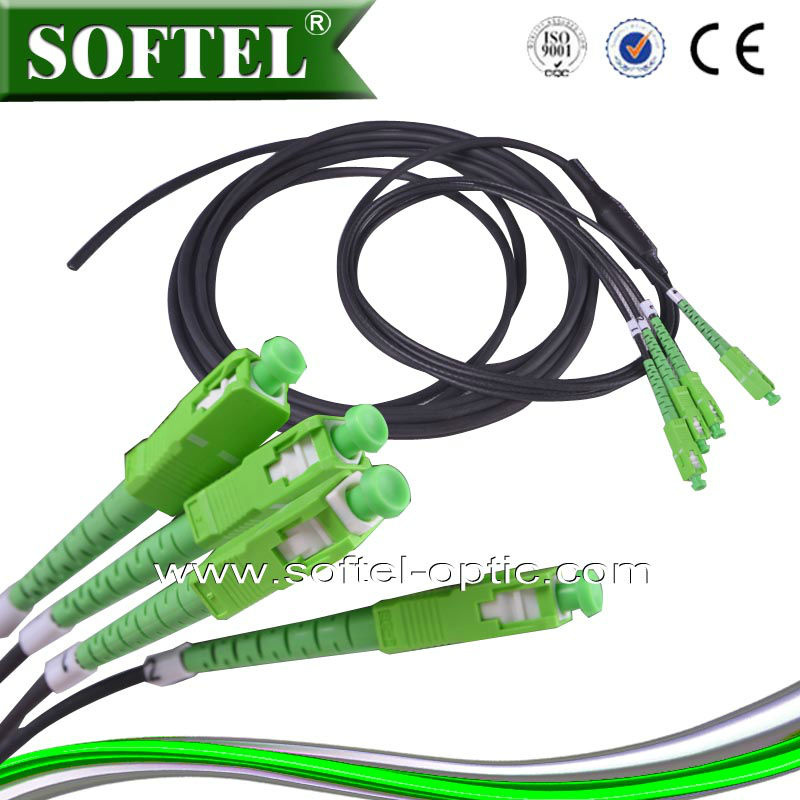

Armored Fiber Optic Patch Cord

Name: Armored Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 723737982
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 2.5-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

armored fiber optic patch cord/cable for cable patchcord

We supply armored fiber optic patch cord,single mode,multi mode,SC,FC,LC,MU,MTRJ,UPC,APC,simplex,duplex, 9/125,50/125,62.5/125.

With stainless steel tube inside the outer jacket is used to protect the central unit of the cable. The cable is suitable for use in harsh environment, what is more, they are very flexible, handing these armored fiber optic patch cables are as easy as handing electric cables

Characteristics

Steel tape armored inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional

Parameters
Singel Mode

insert loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
return loss	≥45dB	≥50dB	≥55dB	≥55dB
Reepeatability	≤0.1dB	≤0.1dB	≤0.1dB	≤0.1dB
temperature	-40~85°C	-40~85°C	-40~85°C	-40~85°C
number of fiber	4fiber	6fiber	8fiber	12fiber
outerdiameter	6.5mm	6.5mm	7.5mm	7.5mm

Characteristics

Steel tape armored inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional

Prod Model:	armored fiber optic patch cord
Patch Cord Model:	Armored Fiber Optic Patch Cord
Patch Cord Connector:	Sc,FC,LC,Mu,MTRJ,Upc,APC
Patch Cord Return Loss:	≤0.3dB
Working Temperature:	-40°c~+85°c
Payment:	T/T, L/C
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Shape:	Fan out

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
