| Prod Model: |
CX-WZ/WR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
-200-1800c |
| Graduation: |
R/S/B/K/N/J/E/T/PT100/PT |
| Fixing: |
Thread/Flange/None |
| Connection: |
Terminal Box/Compensation Cable/Plug |
| Cable/Plug Thermowell Material: |
Ss340/310/316,Inconel 600,Ceramic |
| Probe Length: |
Custom |
| Thermocouple Wire Element: |
Simplex/Duplex |
| Certification: |
SGS |
| Type: |
Temperature Sensor |
| Usage: |
Air Purifier |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Steel |
| Brand: |
Gn |
Product Description

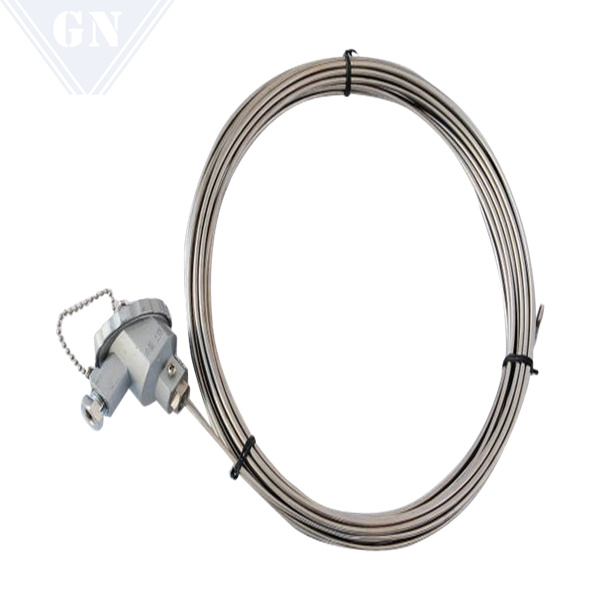

Armored Thermocouple With Compensation Wire
What is the thermal resistance and thermocouple temperature sensor?
Brief introduction of PT100 RTD,thermocouples,temperature sensor
The PT100 RTD,thermocouples are used in industry for measuring the temperature of gases,liquids or solid .Its usually assembled with indicators, recorders or computers.A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
Features:
- Easy assembly and convenient for replacement;
- Spring thermal element with good shock-proof performance;
- Wide mesuring range (0~1800 degree Celsius);
- High mechanical strength and good pressure-resistant performance
How to choose?
1.Diameter and length:Can be customized as customer's requirements2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

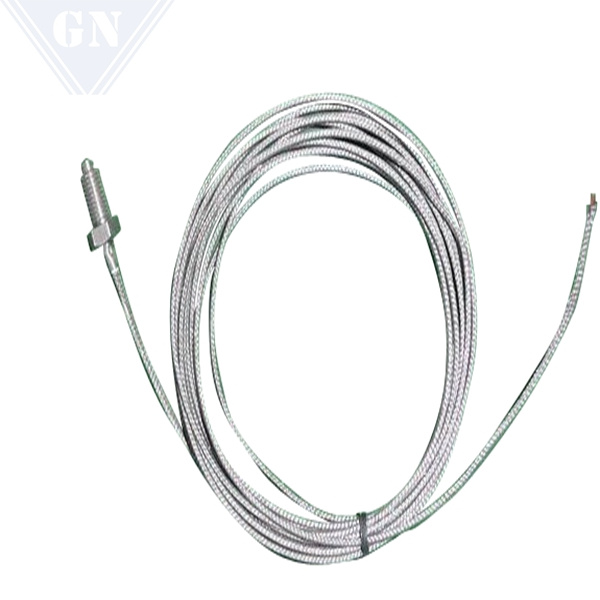

Product details:
It can be customized according to your application.

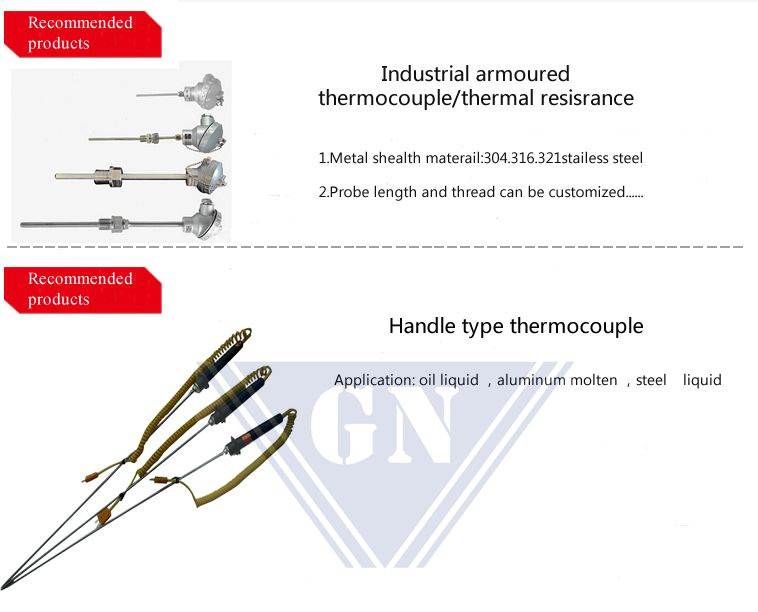

Recommended products:
Package photo:
After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
Our Integrity Promises your Quality !
Please contact with me, I will provide you professional service and high quality products.
|
Thermocouple & rtd |
|
Ref No. |
WR |
Temp |
|
Thermal element materials |
B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi |
0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
|
Ref No. |
WZP |
Temp |
|
|
PT100
PT1000
CU50 |
-200~+650C
-200~+650C
-200~+650C |
|
Pairs quantity of sensor wire |
Simplex
Duplex |
|
Ways of Mounting & Fixing |
1: without fixing device
2: fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6: fixed thread in wimble shape protection tube |
|
Types of connections box |
2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
|
Types of sensor end |
G: variable section
K: sheathed elements
T: flexible sheathed elements |
|
Diameter of protection tube |
0: ¢16
1: ¢20
2: ¢16 high aluminum material
3: ¢20 high aluminum material |
|
Measuring range |
0~1600 degree Celsius |
|
Shipping |
By air, sea, express |
|
Sample time |
2~7 days |
|
Manufacture time |
7~30 days depending on order quantity |
