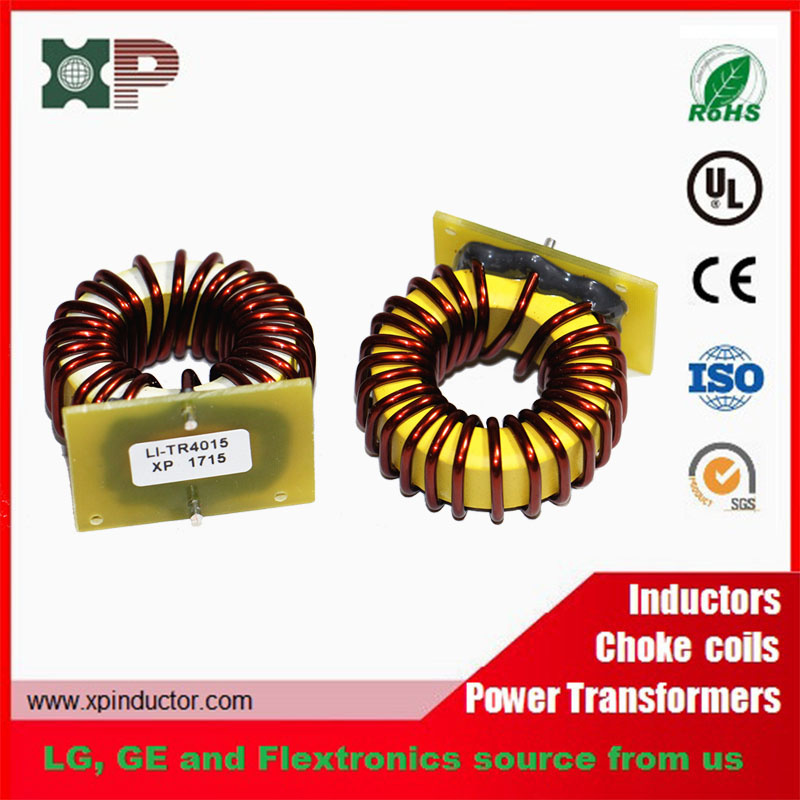

Audio Lighting Applications Ferrite Core Inductor

Name: Audio Lighting Applications Ferrite Core Inductor
Brand: all-electronics-online.com
SKU: 834347245
Availability: InStock
Rating: 4.4 (54 reviews)

Price:	US $ 0.2-0.3/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Key Specifications/Special Features:
1. High efficiency
2. High power
3. High current
4. Low power loss
5. Low temperature rise
6. High temperature grades are available
7. RoHS Directive-compliant
8. UL insulation systems are available
9. Customized designs are accepted
10. OEM orders are welcome
Reasons of our top-quality components help your business succeed:
1. 22 years of experience customizing and power transformers and inductors
2. Your professional and reliable partner for various electronics
3. Over 1000 buyers value our products

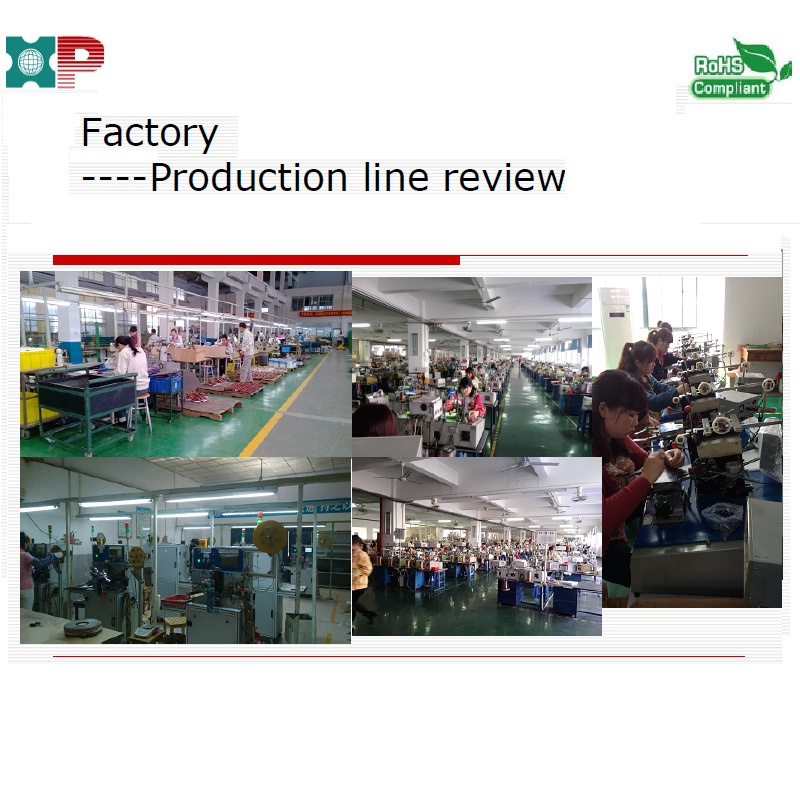

4. 20000m2 factory with 21 production lines and 800 employees

5. 6 million units annual capacity

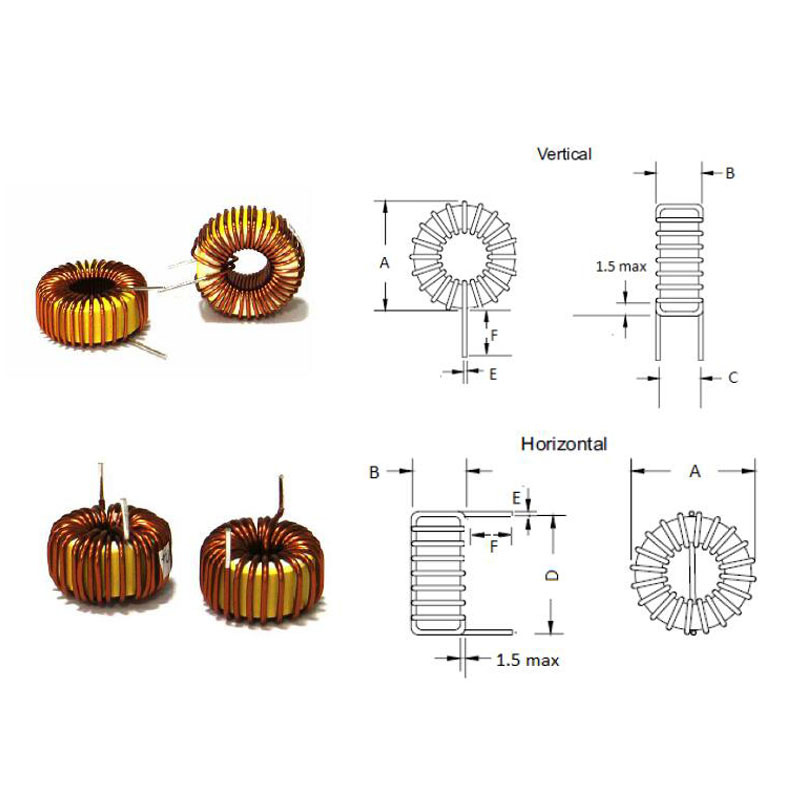

Part NO.	Inductance (μH) @1 KHz	I rated (A) (Max)	DCR(Ω) (Max)	Dimension (mm)
				A(Max)	B(Max)	C(Max)	D(Max)	E(Nom)	F(Max)
5026-600M	60.0	3.0	0.038	18.0	11.5	11.0	17.5	0.70	15
5026-680M	68.0	1.0	0.101	18.0	11.5	11.0	17.5	0.45	15
5026-101M	100.0	2.0	0.081	18.0	11.5	11.0	17.5	0.60	15
5026-221M	220.0	1.0	0.190	18.0	11.5	11.0	17.5	0.45	15
6026-220M	22.0	5.0	0.014	22.0	12.5	12.0	21.5	0.95	15
6026-290M	29.0	4.0	0.020	22.0	12.5	12.0	21.5	0.85	15
6026-350M	35.0	3.0	0.026	22.0	12.5	12.0	21.5	0.80	15
6026-580M	58.0	2.0	0.061	22.0	12.5	12.0	21.5	0.60	15
6026-900M	90.0	3.0	0.044	22.0	12.5	12.0	21.5	0.80	15
6026-111M	110.0	2.0	0.069	22.0	12.5	12.0	21.5	0.65	15
6026-131M	130.0	1.0	0.146	22.0	12.5	12.0	21.5	0.45	15
6026-471M	470.0	1.0	0.286	22.0	12.5	12.0	21.5	0.45	15
6826-250M	25.0	5.0	0.016	24.0	11.5	10.5	23.0	1.00	15
6826-320M	32.0	4.0	0.021	24.0	11.5	10.5	23.0	0.90	15
6826-430M	43.0	3.0	0.030	24.0	11.5	10.5	23.0	0.80	15
6826-650M	65.0	2.0	0.055	24.0	11.5	10.5	23.0	0.65	15
6826-111M	110.0	4.0	0.042	24.0	11.5	10.5	23.0	0.85	15
6826-131M	130.0	3.0	0.055	24.0	11.5	10.5	23.0	0.80	15
6826-151M	150.0	1.0	0.159	24.0	11.5	10.5	23.0	0.45	15
6826-231M	230.0	2.0	0.108	24.0	11.5	10.5	23.0	0.65	15
8026-500M	50.0	5.0	0.022	27.0	13.5	12.50	26.0	1.00	15
8026-600M	60.0	4.0	0.030	27.0	13.5	12.50	26.0	0.90	15
8026-750M	75.0	3.0	0.039	27.0	13.5	12.50	26.0	0.80	15
8026-820M	82.0	3.0	0.042	27.0	13.5	12.50	26.0	0.80	15

Prod Model:	XP-TR
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	XP Power

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

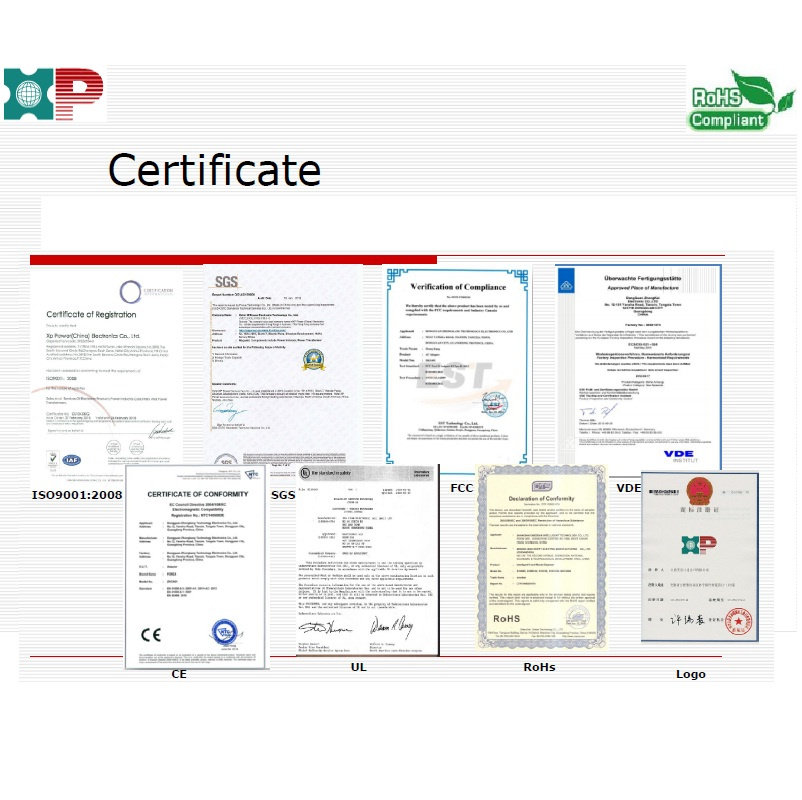

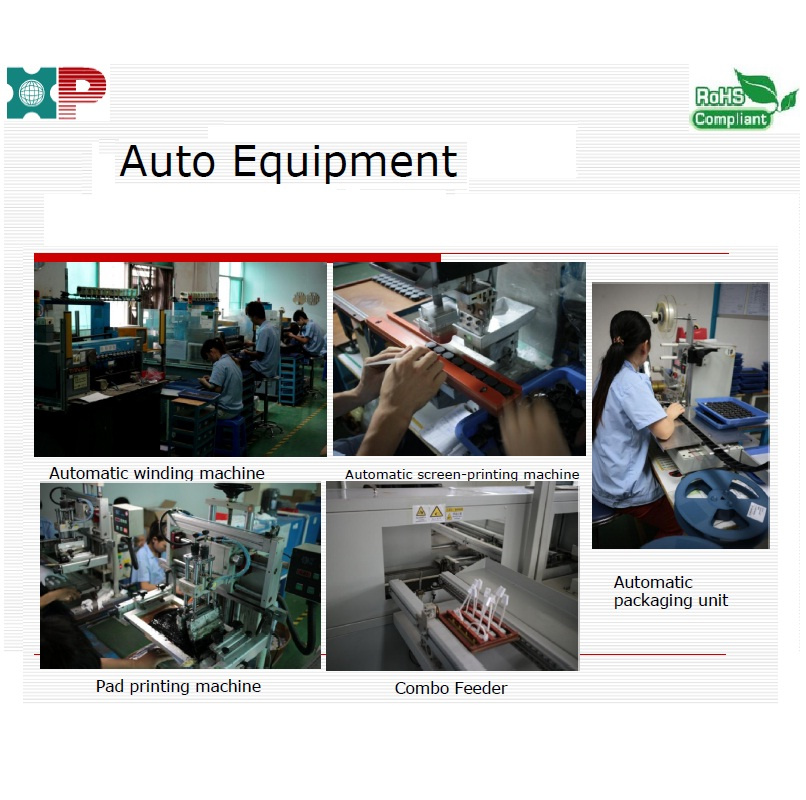

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
