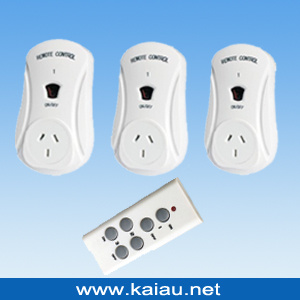

KA-ARS13 Australia RF 433 Remote Control Socket specification:
1. Very lower standby power consumption
2. Turn on/off the socket receiver via the remotecontrol
3.Individual remote on & off function
4.With Self-learning function, any one transmitter and socket receiver can match use after finish programming operation.
5.It is easily for you to match one transmitter orsocket receiver when you lost your transmitter or socket receiver is broken during use.
6.Remote control distance: 30M ( free area) .
7.Transmission frequency: 433.92MHz
8.Power source:240V~/50Hz, max.load power: 2400W
9.Transmitter: DC 12V (23A) battery 1pc included
10.1 remote control with 5 socket receiver
11. The socket receiver still remains in the "Off' mode after a power out, even when the powe rcomes on again.
12. 1 remote + 5 sockets
Techinical Specification:
- Transmitter Power: DC 12V 23A Battery
- Transmission Frequency: 433.92 MHz
- Transmitting Distance: 30m (free area)
- Voltage for Outlet: 230V~/50Hz
- Maximum Loading current for each socket: 10A
Features:
- With Self-learning function, any one transmitter and socket receiver can match use after finish programmingoperation.
- Low Energy Consumption
- Able to resist high levels of Interference and barriers such as Walls, Glass and Furniture, etc.
- Durable and Stable Operation
- After power-off, it stays OFF mode even when the power comes on again to avoid waste.
- Can be used for a wide variety of appliances such as Lights, Fans, TV's, Coffee Machines, AC heaters, refrigerators etc.
PROGRAMMING OPERATION:
All remote controlled socket units have been pre-programmed and can be used immediately.
To re-program the remote control transmitter and socket receiver, please follow instructions below:
1) Plug the remote controlled socket to a power point and turn the power on.
2) The LED indicator inside of the socket receiver will be in flashing state, then quickly press and hold the desired number button on transmitter about 3 seconds.
3) Programming successful when the LED indicator stops flashing.
Attention:
a.One pair of buttons on transmitter can program one or more socket receivers, but
one socket receiver can only be programmed and matched by one pair of buttons;
b. Any one remote control transmitter can match any one socket receiver.
c. It is better for you to press and hold the desired number button on transmitter firstly when you plug the socket receiver to a power socket due to the programming time is only about 5 seconds.
We have 1 remote + 1 socket, 1 remote + 2 sockets, 1 remote + 3 sockets, 1 remote +4 sockets and 1 remote + 5 sockets for your choice.
