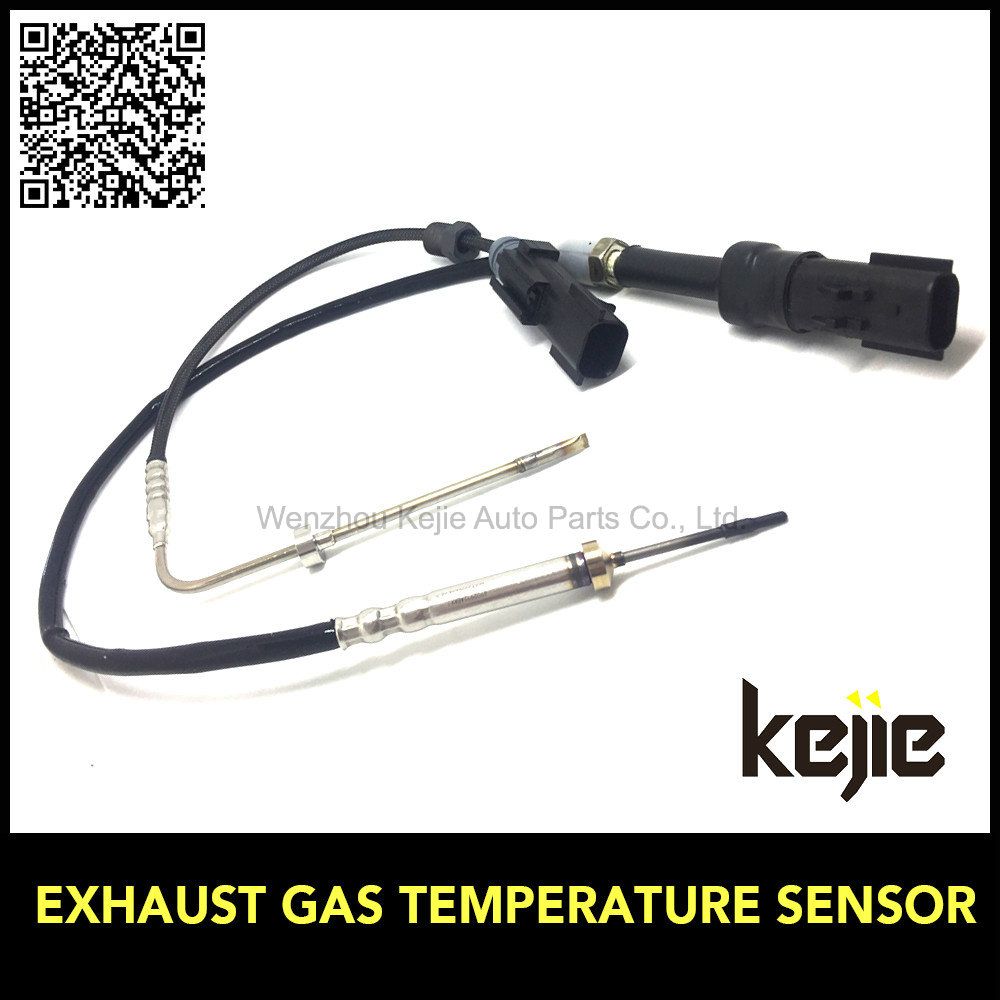

Auto Spare Parts Exhaust Gas Temperature Sensor for Euro4 Euro5

Name: Auto Spare Parts Exhaust Gas Temperature Sensor for Euro4 Euro5
Brand: all-electronics-online.com
SKU: 730141342
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 1-20/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Technical requirements:
1. The amount of resistance: 200 Ω / 0 ºC.
2. The accuracy of measurement: 0 ºC to 250 ºC, plus or minus 2.5 ºC;250 ºC to 1000 ºC, the temperature of + / - 0.9%
3. The conductor: silicone sheath, PTFE insulation (black).
4. The conditions of use: automobile exhaust aftertreatment (SCR) inlet and exhaust temperature measuring system.5. The sampling circuit resistance: 1000 Ω plus or minus 0.1%, wiring harness Ω lead resistance is not greater than 1.6. Installation requirements: perpendicular to the center line of the exhaust pipe.7. Suggest to install torque: 45 + / - 5 n. m.8. Environmental requirements: environmental temperature ºC and 40 ºC - 180 9. Gas velocity of 11 m/s response time < 11 seconds, gas velocity of 80 m/s response time < 10. 5 seconds at 20 ºC, 500 v, the insulation resistance is greater than 1 m Ω 11. The corrosion resistance, alkali resistance, battery acid resistant, resistant to acid

Prod Model:	HD1-EGTS
Installation Type:	Screw Thread Type
Production Process:	Thin-Film
Material:	304/316

Wenzhou Kejie Auto Parts Co., Ltd. is a professional manufactuer focus on Heavy Duty Parts.

We produce high quality sensors(Pneumatic Suspension Level Sensor, ABS Wheel Speed Sensor, Speed Sensor, Crankshaft/Camshaft position sensor, Air pressure sensor, Exhaust Gas Temperature Sensor, Solenoid Valve contains Solenoid Coils and repair components, Blower Resistors and other truck parts. Covering all type of European trucks like Volvo, SCANIA, MECEDES-Benz, MAN, DAF, Iveco, Renault and etc.

All these spare parts we supplied China mailand, MID-East and European market with High quality and favorable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Our Values are reflected in the way we do business, always acting legally and honestly with respect both for our own people and those we do business with.
