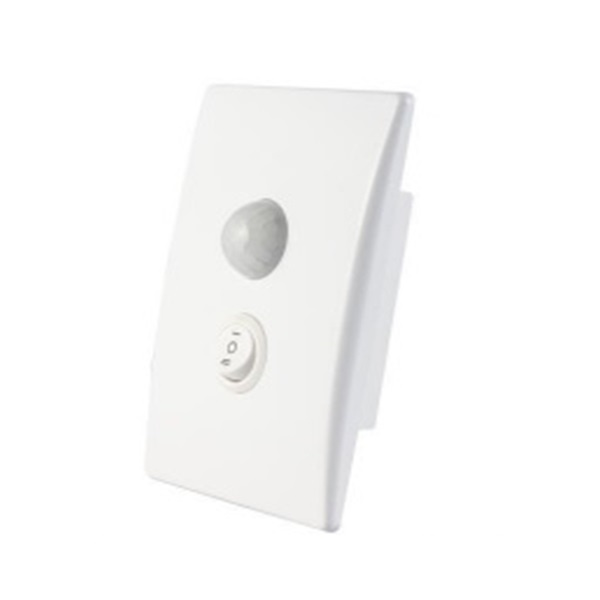

Auto Switch Sensor Time Delay Adjustable Sensor

Auto Switch Sensor Time Delay Adjustable Sensor


Specification:

Could identify day and night automatically: When it transferred to DES, It can both work on day and night, transferred to LIG, only work on night.
Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic; the maximum time is the set time.
Time-delay can be set according with the consumer's demand, the minimum time is 5sec and the maximum is 8min.



Technical Data:
Detection Range:120 degree
Power Source:  110-130V/AC
220-240V/AC
Power Frequency: 50/60Hz
Rated Load:Max.800W (110-130V/AC)
Max.1200W (220-240V/AC)
Detection Distance: max.8m (<24ºC)
Time Delay:10sec to 7min(adjustable)
Light Control: 10LUX~2000LUX(adjustable)
Detection Motion Speed: 0.6-1.5m/s
Installation Height: 1-1.8m
Working temperature:-10~+40°C
Working humidity:<93%RH
Installation height:1m~1.6m
Power consumption:0.45W(static 0.1W)
Detection motion speed:0.6-1.5m/s)



Picture:

Shipment&Payment:

Model	Auto Switch Sensor TA-H93
Shipment	DHL, UPS, FEDEX...
Payment	T/T, Western Union, Paypal
